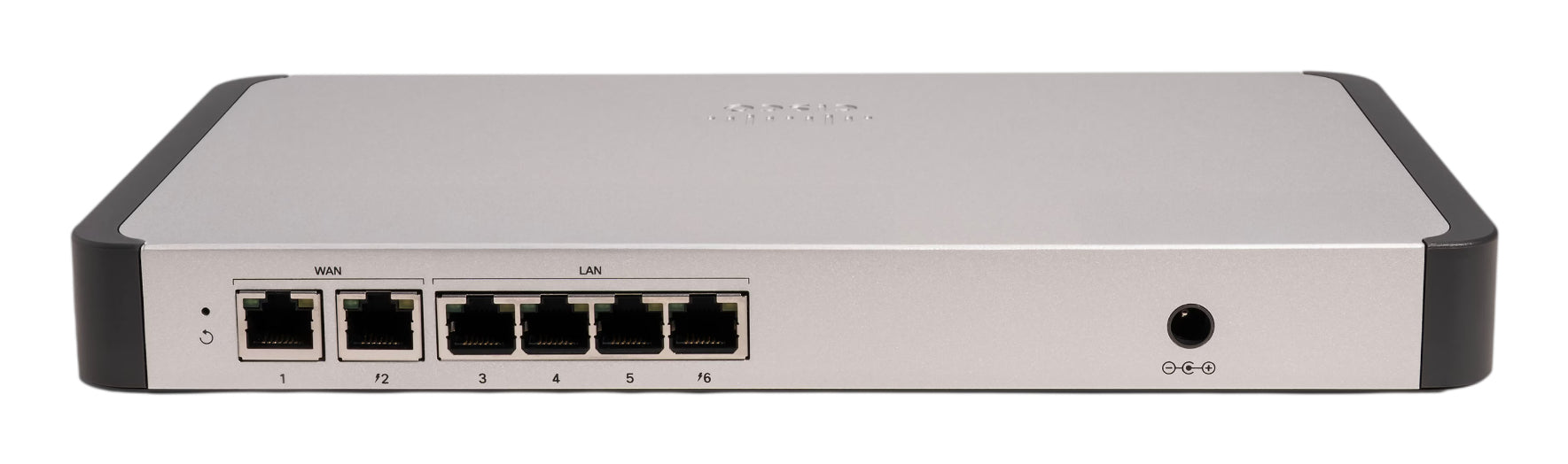

• Back view of Meraki C8111-C-G2-MX secure router showing silver Cisco switch with black edges and labeled ethernet ports
1 1

Meraki

Meraki C8111-C-G2-MX | MX C8111-C-G2 5G Router, 2x 2.5G WAN, 4x GbE, 150W

C8111-C-G2-MX

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The C8111-C-G2 is a cloud-managed secure router from the Cisco C8000 G2 range, running Meraki MX OS. It suits small to medium distributed branch sites of up to 200 devices that need remote administration, SD-WAN and security from the Meraki Dashboard, with 5G cellular as a primary or backup WAN. It has no Wi-Fi radio.

There are two dedicated 2.5 mGig RJ45 WAN ports and four Gigabit RJ45 LAN ports, giving three WAN uplinks together with the built-in 5G SA/NSA and CAT20 LTE modem. The modem takes one nano SIM and also has an embedded eSIM. The WAN port offers 30W 802.3at PoE+, and one LAN port provides 45W 802.3bt UPoE for an access point, camera or VoIP phone. Stateful firewall throughput is 2 Gbps in NAT mode, maximum VPN throughput is 1.2 Gbps, and advanced security throughput is 1 Gbps. A 150W DC power supply is used.

The cellular modem uses four external removable SMA antennas, and the Cisco 5G-ANT-C8111 antenna set is the matching part. The router requires a Meraki licence and the cloud Dashboard to operate.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cloud managed through the Meraki Dashboard with automatic firmware upgrades
- SD-WAN over Meraki AutoVPN with WAN link balancing and automatic failover
- AutoVPN and IPSec VPN endpoint plus client VPN endpoint
- Embedded eSIM for zero-touch cellular provisioning
- L3/L7 stateful firewall with geo-based rules and 1:1 and 1:Many NAT
- Content filtering, IPS/IDS and Advanced Malware Protection
- Active Directory integration and 802.1X support
- Custom traffic shaping, NetFlow, Syslog and remote packet capture

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Model: C8111-C-G2
- WAN ports: 2 x 2.5 mGig RJ45
- WAN uplinks: 3 (2 x RJ45 + built-in 5G/LTE modem)
- LAN ports: 4 x GbE RJ45
- PoE: 30W 802.3at on 2.5G WAN port, 45W 802.3bt on one LAN port
- Cellular: 5G SA/NSA Sub-6GHz and CAT20 LTE
- SIM: 1 x nano (4FF) plus embedded eSIM (eUICC)
- Cellular antennas: 4 x external removable SMA
- Wi-Fi: None
- Stateful firewall throughput (NAT mode): 2 Gbps
- Max VPN throughput: 1.2 Gbps
- Advanced security throughput: 1 Gbps
- Recommended for: up to 200 devices
- Power supply: 150W DC
- System power idle/max: 39 W / 45 W
- System plus PoE load idle/max: 39 W / 126 W
- Mounting: desktop or wall mount
- Dimensions (H x D x W): 34 x 176 x 316 mm
- Weight: 1.451 kg
- Operating temperature: 0 to 45 C
- Storage temperature: -20 to 70 C
- Humidity: 5% to 95%
- Certifications: PTCRB, GCF, IC, FCC

FAQs

Q: Does this router need a licence?
A: Yes. It requires a Cisco Meraki MX licence and the Meraki Dashboard for cloud management to operate.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Q: Can it power other devices over PoE?
A: Yes. One LAN port supplies up to 45W 802.3bt UPoE and the 2.5G WAN port supplies 30W 802.3at PoE+, enough for access points, cameras or VoIP phones.

Q: Which antennas does the cellular modem use?
A: It uses four external removable SMA antennas. The Cisco 5G-ANT-C8111 antenna set is the matching part.

Q: How many devices is it designed to support?
A: It is recommended for branch deployments of up to 200 devices.
