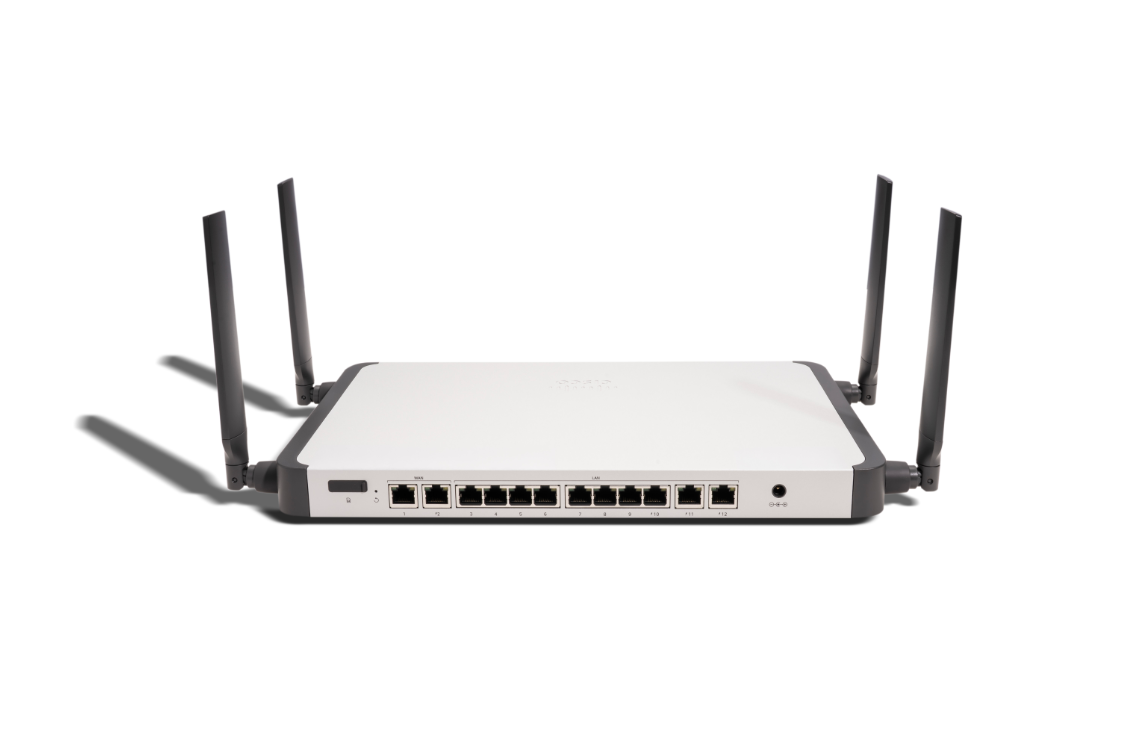

• White and black meraki c8121-w-g2-mx cisco secure router with four external antennas and wi-fi 6 support
1 1

Meraki

Meraki C8121-CW-G2-MX | C8100 G2 Wi-Fi 6 5G SA Secure Router, 3x UPoE, 250W

C8121-CW-G2-MX

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki C8121-CW-G2-MX is a cloud-managed secure router from the C8100 G2 range, running MX OS. It suits small to medium branch and distributed-enterprise sites of up to 200 devices that need remote administration, SD-WAN, cellular 5G as a primary or failover WAN, built-in Wi-Fi 6 and PoE for access points, cameras and VoIP phones.

This variant pairs dual-band 2x2 MU-MIMO Wi-Fi 6 with a built-in 5G SA and CAT20 LTE modem, supporting one Nano (4FF) SIM plus an embedded eSIM. Connectivity includes 2 x 2.5 mGig RJ45 dedicated WAN ports and 10 x 1 GbE RJ45 LAN ports, three of which provide 802.3bt 45W UPoE. The PoE budget is 30W on the WAN side and 135W across the LAN. Stateful firewall throughput is 2 Gbps in NAT mode, with 1.2 Gbps of VPN throughput and 1 Gbps of advanced security throughput. Power comes from a 250W DC supply, and the unit mounts on a desktop or wall.

It is managed through the Cisco Meraki Dashboard, which requires a Meraki licence. Cellular carrier certifications include AT&T and T-Mobile, and four external removable SMA antennas connect the cellular radio.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cloud management through the Meraki Dashboard with automatic firmware upgrades
- WAN link balancing and automatic WAN failover
- SD-WAN over Meraki AutoVPN, with AutoVPN, IPSec and client VPN endpoints
- On-board eSIM for zero-touch cellular provisioning
- L3/L7 stateful firewall with geo-based rules, content filtering and IPS/IDS protection
- Advanced Malware Protection with optional Threat Grid integration
- 802.1X wired and wireless support with Active Directory integration
- Traffic shaping, NetFlow, Syslog and remote packet capture tools

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- WAN ports: 2 x 2.5 mGig RJ45 dedicated, one with 802.3at PoE+
- WAN uplinks: 3 (2 x dedicated mGig RJ45 + 1 x built-in cellular)
- LAN ports: 10 x 1 GbE RJ45, 3 with 802.3bt 45W UPoE
- Total PoE budget: 30W WAN / 135W LAN
- Cellular modem: 5G SA and CAT20 LTE, 5G SA/NSA Sub 6GHz
- SIM: 1 x Nano (4FF) plus 1 x embedded eSIM (eUICC)
- Cellular antennas: 4 x external removable, SMA connector
- Wi-Fi: dual-band 2x2 MU-MIMO 802.11a/b/g/n/ac/ax, up to 1.5 Gbps
- Stateful firewall throughput (NAT mode): 2 Gbps
- Maximum VPN throughput: 1.2 Gbps
- Advanced security throughput: 1 Gbps
- Recommended for: up to 200 devices
- Power supply: 250W DC
- System power (idle/max): 68 W / 87 W
- System plus PoE load (idle/max): 68 W / 233 W
- Mounting: desktop or wall mount
- Dimensions (H x D x W): 34 x 203 x 348 mm
- Weight: 1.783 kg
- Operating temperature: 0 to 45 C
- Storage temperature: -20 to 70 C
- Humidity: 5% to 95%
- Certifications: PTCRB (US), GCF (EU), IC (CA), FCC (US)

FAQs

Q: Does this router need a Meraki licence?
A: Yes. It is managed through the Cisco Meraki Dashboard, which requires a Meraki licence for MX OS.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Q: How much PoE does it provide?
A: It provides a 30W budget on the 2.5 mGig WAN port (802.3at) and 135W across three LAN ports, each delivering up to 45W UPoE (802.3bt).

Q: Which antennas does the cellular modem use?
A: It uses four external removable SMA antennas. Use only the Cisco Secure Router cellular antennas, part number 5G-ANT-C8121.

Q: How is it powered, and what replacement parts are available?
A: It runs from a 250W DC power adapter. The replacement adapter is MA-PWR-250WAC-ADP, with regional AC cords MA-PWR-CORD-US, EU, UK and AU.

Q: Which cellular carriers is it certified on?
A: It is certified on AT&T and T-Mobile, with Verizon certification in progress. GCF-based carriers are listed in the GCF directory.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
