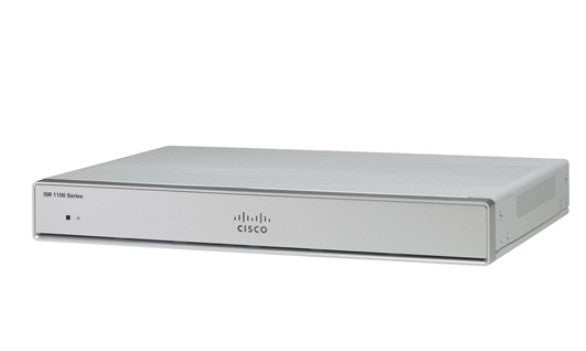

Cisco C1117-4PLTELAWZ | ISR 1100 4-Port GE Router, VDSL2, LTE-A, Wi-Fi Z
SKU:C1117-4PLTELAWZ
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The ISR 1100 C1117 is a compact, fanless branch router that combines routing, switching, DSL, LTE and Wi-Fi in a single device. It suits small branch and remote offices, retail stores, clinics and SOHO sites that need WAN diversity, integrated wireless and the choice of traditional routing or SD-WAN.
This SKU provides four Gigabit Ethernet LAN ports, one Gigabit Ethernet combo WAN port (copper or SFP) and an integrated VDSL2/ADSL2+ Annex A modem. An embedded LTE Advanced Cat 6 modem (LA variant for LATAM and APAC) gives automatic failover from the primary WAN to a cellular backup link. The embedded 802.11ac Wave 2 2x2:2 access point is built for the Wi-Fi Z regulatory domain covering Australia, New Zealand and Brazil, with PHY rates up to 866.7 Mbps. It carries 4 GB DRAM and 4 GB flash, one Type A USB 3.0 port, and delivers up to 1600 Mbps IPv4 forwarding and up to 500 Mbps IPsec throughput in autonomous mode.
It runs Cisco IOS XE or IOS XE SD-WAN in controller mode, and ships with IP Base. Optional PoE or PoE+ on the LAN ports is available through the ISR-1100-POE2 power option. The GE combo WAN port accepts SFPs such as GLC-SX-MM, GLC-LH-SM and GLC-T.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Routing, switching, Wi-Fi, DSL and LTE in one fanless branch device
- Choice of Cisco IOS XE or controller-managed IOS XE SD-WAN
- On-box security with application-aware NGFW, IPS/IDS, Advanced Malware Protection and URL filtering
- Cisco Umbrella SIG integration for cloud-delivered security
- Automatic failover from the primary WAN to the backup LTE link
- Voice survivability with Cisco Unified Border Element and SRST with a UC licence
- Management through Cisco DNA Center, vManage or the embedded WebUI
- Rack-mount kit available as an option
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- LAN ports: 4 x Gigabit Ethernet (copper)
- WAN ports: 1 x GE combo (copper/SFP) plus 1 x VDSL2/ADSL2+ Annex A
- DSL standards: VDSL2 profiles 8a, 8b, 8c, 8d, 12a, 12b, 17a with vectoring, ADSL2/ADSL2+ Annex A
- Cellular: embedded LTE Advanced Cat 6, LA variant for LATAM and APAC
- Wi-Fi: embedded 802.11ac Wave 2, 2x2:2 MIMO, SU-MIMO and MU-MIMO
- Wi-Fi PHY rate: up to 866.7 Mbps (80 MHz, 5 GHz)
- Wi-Fi regulatory domain: Z (Australia, New Zealand, Brazil)
- Wi-Fi clients: up to 200 per radio, 400 per access point
- Memory: 4 GB DRAM, 4 GB flash
- USB: 1 x Type A USB 3.0
- Console: Micro-USB/RJ-45
- IPv4 forwarding throughput (autonomous, 512B): up to 1600 Mbps
- IPsec throughput (autonomous, 512B): up to 500 Mbps
- SD-WAN IPsec throughput (512B): up to 450 Mbps
- SD-WAN overlay tunnels: 200
- Power supply: external 100-240 VAC input, 12 VDC output, 66 W max
- Maximum power consumption: 24 W
- PoE option: ISR-1100-POE2 with 115W PSU (2 PoE or 1 PoE+)
- Dimensions (H x W x D): 4.45 x 32.26 x 24.38 cm
- Weight: 2.22 kg
- Operating temperature: 0 to 40 C
- Operating humidity: 10% to 85% non-condensing
- Minimum software: Cisco IOS XE 16.6.1
FAQs
Q: Does this router need a licence to run?
A: It ships with IP Base. Optional technology licences cover Application Experience, Unified Communications and Security. SD-WAN operation uses Cisco DNA Essentials, Advantage or Premier subscriptions via Smart Licensing. The embedded WebUI needs no licence.
Q: Can it provide PoE to connected devices?
A: Yes, with the optional ISR-1100-POE2 and its 115W PSU. This provides 2 PoE ports or 1 PoE+ port across the four LAN ports. Without it, the LAN ports do not supply power.
Q: Which SFPs work in the GE combo WAN port?
A: Supported genuine options include GLC-SX-MM, GLC-LH-SM, GLC-EX-SMD, GLC-ZX-SM, GLC-T, GLC-TE and GLC-BX-D/U, as well as the 100BASE-FX/LX/BX GLC-FE series and CWDM/DWDM SFPs.
Q: Can it run in SD-WAN mode?
A: Yes. It runs Cisco IOS XE SD-WAN in controller mode and is managed with vManage. It supports up to 200 overlay tunnels.
Q: How does this SKU differ from other C1117 models?
A: This SKU adds VDSL2/ADSL2+ Annex A, an LTE Advanced Cat 6 modem for LATAM and APAC, and 802.11ac Wi-Fi for the Z regulatory domain (Australia, New Zealand, Brazil).
