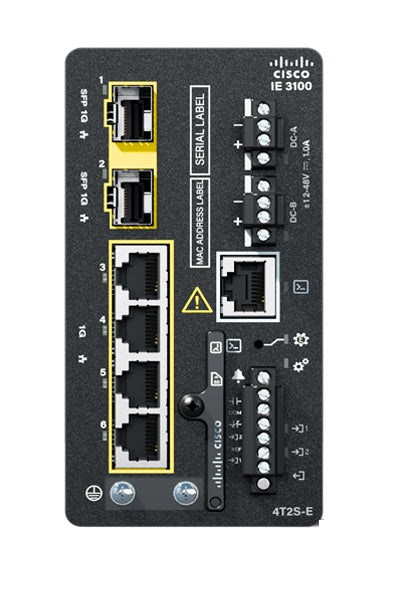

Cisco IE-3100-4T2S-E | Catalyst IE3100 4-Port Gigabit Industrial Switch, 2x 1G SFP, Network

Name: Cisco IE-3100-4T2S-E | Catalyst IE3100 4-Port Gigabit Industrial Switch, 2x 1G SFP, Network
Brand: Cisco
SKU: IE-3100-4T2S-E
Price: 1715.00 USD
Availability: BackOrder

SKU:IE-3100-4T2S-E

$1,715.00 USD

Sale Sold out

Shipping calculated at checkout.

Stock Status: Enquire

Quantity

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst IE3100 is a compact, fixed-configuration DIN-rail industrial Ethernet switch running Cisco IOS XE. It is built for space-constrained, harsh-environment deployments such as manufacturing, energy, transportation, mining, smart cities, oil and gas, distribution centres and warehouses.

This non-PoE model provides 4 x 10/100/1000 RJ45 copper ports and 2 x 1G SFP uplink ports, for 6 ports in total. Forwarding bandwidth is 6 Gbps with a forwarding rate of 8.928 Mpps, backed by 4 GB DRAM and 1.5 GB of user flash. It runs from dual DC inputs (12-48V nominal) with typical consumption of 14 W, and operates from -40 to 75 C in a blower-equipped cabinet. This SKU carries the Network Essentials feature set with a perpetual licence, which separates it from other IE3100 variants.

The SFP uplinks accept compatible modules including GLC-FE-100FX-RGD=, GLC-FE-100LX-RGD, SFP-GE-S=, CWDM and DWDM SFPs, and an optional SD card slot supports 1 GB, 4 GB and 16 GB cards. It is managed through Cisco Catalyst Center or the built-in WebUI.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs Cisco IOS XE with Secure Boot, image signing and the Cisco Trust Anchor module
- API-driven configuration with open APIs and data models (NETCONF, RESTCONF)
- Managed through Cisco Catalyst Center, with a WebUI for initial setup
- Resiliency through MRP, REP and dual-input DC power
- Industrial automation protocol support: EtherNet/IP (CIP), Modbus and PROFINET
- Layer 2 features including 802.1Q, RSTP/MSTP/PVST+, LACP, EtherChannel, IGMP/MLD snooping and SPAN/RSPAN
- Security features including 802.1X, DHCP Snooping, IP Source Guard, SSH, HTTPS, RADIUS and TACACS+
- Zero-touch deployment and Cisco Plug and Play

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Product type: Industrial Ethernet switch, fixed configuration
- Copper ports: 4 x 10/100/1000 RJ45
- SFP uplink ports: 2 x 1GE SFP
- Total ports: 6
- PoE: Non-PoE, PoE budget not applicable
- Software: Cisco IOS XE, Network Essentials (perpetual licence)
- Forwarding bandwidth: 6 Gbps
- Forwarding rate (64-byte packets): 8.928 Mpps
- DRAM: 4 GB
- Flash (user accessible): 1.5 GB
- Removable storage: Optional SD card, 1 GB, 4 GB or 16 GB supported
- Console ports: 1 RS-232 (via RJ-45), 1 Micro USB
- Alarms: 2 dry-contact alarm inputs
- Power input: Dual DC inputs, 12-48V nominal (9.6-60V absolute)
- Power consumption (excluding PoE): 14 W
- MAC addresses: 8000 unicast
- VLANs: 256
- Egress queues: 8
- Mounting: DIN rail
- Dimensions (H x W x D): 12.70 x 6.48 x 11.00 cm
- Weight (switch only): 0.73 kg
- Operating temperature: -40 to 75 C (blower-equipped cabinet)
- Relative humidity: 5% to 95% non-condensing
- MTBF (Telcordia Issue 4): 931,290 hours

FAQs

Q: Which licence does this switch include?
A: This SKU includes the Network Essentials feature set as a perpetual licence. Cisco Catalyst Center Essentials licences are optional add-ons and are not required for operation.

Q: Does it support PoE?
A: No. The IE-3100-4T2S-E is a non-PoE model, so the copper ports do not supply power to connected devices.

Q: How is it powered?
A: It has dual DC power inputs, 12-48V nominal (9.6-60V absolute). Typical power consumption is 14 W, and compatible Cisco DIN-rail supplies include PWR-IE50W-AC=, PWR-IE65W-PC-DC= and PWR-IE170W-PC-DC=.

Q: Which SFP modules can I use in the uplink ports?
A: Compatible modules include GLC-FE-100FX-RGD=, GLC-FE-100LX-RGD, SFP-GE-S=, CWDM-SFP-xxxx= and DWDM-SFP-xxxx= types.

Q: How does it differ from other IE3100 variants?
A: This model pairs 4 Gigabit copper ports with 2 Gigabit SFP uplinks, has no PoE, and carries the Network Essentials feature set.

Q: How is it mounted and managed?
A: It mounts on a DIN rail and is managed through Cisco Catalyst Center or the built-in WebUI. An optional SD card slot supports 1 GB, 4 GB and 16 GB cards.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .
