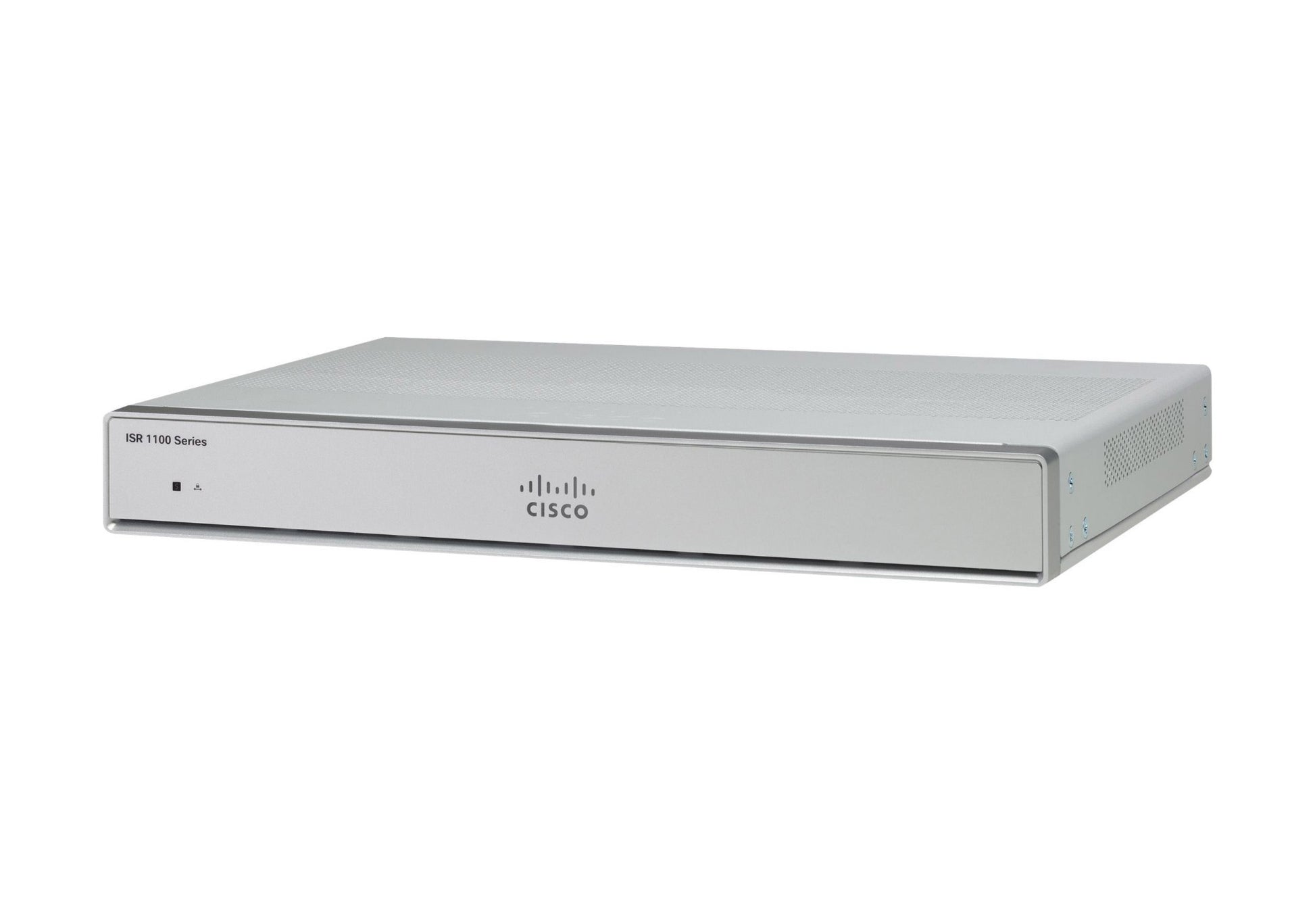

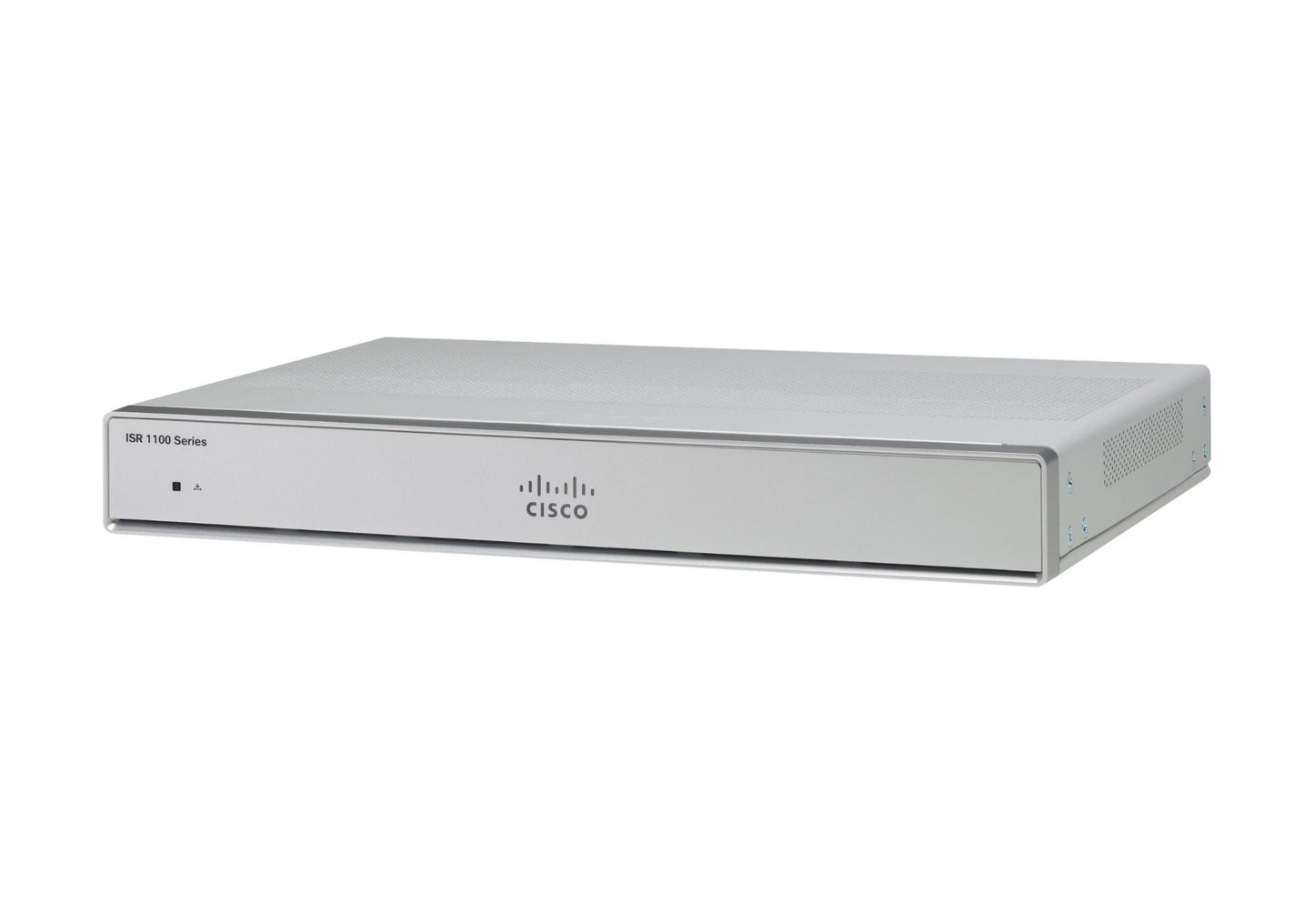

Cisco C1161X-8PLTEP | ISR 1100 8-Port GE PoE Router, 8GB, Pluggable LTE
SKU:C1161X-8PLTEP
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The C1161X-8PLTEP is a compact, fanless router from the Cisco ISR 1000 family, built for small branches, remote offices and SD-WAN edge sites that want routing, switching and cellular connectivity in one box. It runs either traditional Cisco IOS XE or controller-managed IOS XE SD-WAN, and a pluggable cellular module slot lets it use LTE or 5G as a backup or primary WAN link.
The LAN side provides eight Gigabit Ethernet copper ports, with optional PoE (4 ports) or PoE+ (2 ports) for powering phones and access points. The WAN side has one Gigabit Ethernet copper port and one Gigabit combo copper/SFP port. This X variant carries 8 GB DRAM and 8 GB flash for app hosting. Throughput reaches up to 1900 Mbps IPv4 forwarding in autonomous mode (512B), up to 850 Mbps SD-WAN IPsec (512B), and up to 825 Mbps maximum encrypted throughput (single tunnel, IMIX), with 200 SD-WAN overlay tunnels supported.
The cellular slot accepts Cisco pluggable modules covering LTE CAT4, CAT6, CAT7 and CAT18, and 5G NSA and SA on supported software releases. The combo WAN port takes Cisco Gigabit SFPs including GLC-SX-MM(D), GLC-LH-SM(D) and GLC-T/TE.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Choice of Cisco IOS XE or controller-managed IOS XE SD-WAN software
- Pluggable cellular options: LTE CAT4/6/7/18, 5G NSA and 5G SA
- Cellular failover with dual-SIM support and auto SIM carrier selection
- On-box security: NGFW, IPS/IDS, Advanced Malware Protection, URL filtering and Umbrella integration
- Management via embedded WebUI, Cisco DNA Center or Catalyst SD-WAN Manager
- Fanless small-form-factor design with 8 GB DRAM and 8 GB flash for app hosting
- Supports Cisco CUBE and SRST for voice resiliency
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Model: C1161X-8PLTEP
- LAN ports: 8 x Gigabit Ethernet (copper)
- WAN ports: 1 x GE copper plus 1 x GE combo copper/SFP
- Cellular: 1 x pluggable cellular module (PIM) slot
- Optional PoE/PoE+: 4 PoE or 2 PoE+ on the LAN ports
- Memory: 8 GB DRAM / 8 GB flash
- Maximum encrypted throughput (single tunnel, IMIX): 825 Mbps
- SD-WAN IPsec throughput (512B): up to 850 Mbps
- SD-WAN overlay tunnels: 200
- Autonomous mode IPv4 forwarding (512B): up to 1900 Mbps
- Autonomous mode IPsec throughput (512B): up to 700 Mbps
- IPv4 routes: 800K, IPv6 routes: 700K
- NAT sessions: 100K, VRFs: 4K
- Console: 1 x micro-USB
- USB: 1 x Type A USB 3.0
- Wi-Fi: No, DSL: No
- Dimensions (H x W x D): 1.65 x 10.80 x 7.85 in.
- Weight: 1.70 kg (3.74 lb)
- Maximum power consumption: 24.8 W (excluding external PSU loss)
- External power supply: 100-240 VAC input, 12 VDC output, 66 W
- PoE option requires 150 W power supply
- Operating temperature: 0 to 40 C
- Operating humidity: 5% to 85% non-condensing
- Minimum software: IOS XE 16.11.1, XE SD-WAN 17.2.1
FAQs
Q: Does this router need a licence?
A: It ships with the IP Base technology package by default. Optional Smart Licensing packages cover APP, SEC and UC features, and SD-WAN deployments use Cisco DNA subscriptions. The embedded WebUI needs no licence.
Q: How is PoE provided on the LAN ports?
A: PoE is optional, giving 4 PoE ports or 2 PoE+ ports across the 8 LAN ports. It requires the 150 W power supply, ISR-1100-POE4(=). The standard supply is a 12 VDC, 66 W adapter.
Q: Which cellular modules work with this router?
A: The slot accepts Cisco pluggable modules including P-LTEA-EA/LA (CAT6), P-LTEA7-NA/EAL/JP (CAT7), P-LTEAP18-GL (CAT18), P-5GS6-GL (5G NSA) and P-5GS6-R16-SA (5G SA). D-LTE USB CAT4 dongles are also supported.
Q: Which SFP modules fit the combo WAN port?
A: The combo port accepts Cisco Gigabit SFPs such as GLC-SX-MM(D), GLC-LH-SM(D), GLC-T/TE, BX, CWDM and DWDM types.
Q: How does the C1161X differ from non-X 116x models?
A: The X designation means 8 GB DRAM and 8 GB flash with app-hosting capability, together with the pluggable cellular slot and 8 Gigabit LAN ports with optional PoE.
