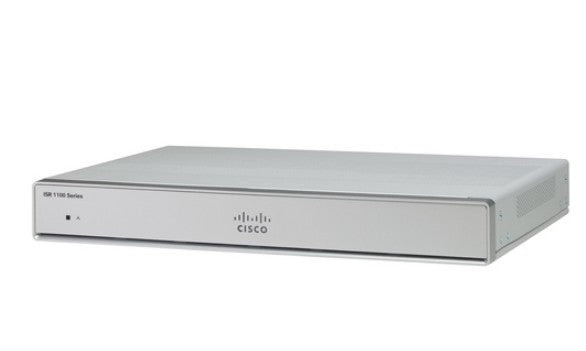

Cisco C1111-4PLTELA | ISR 1100 Router, 4x GE LAN, Dual GE WAN, LTE Advanced
SKU:C1111-4PLTELA
1 in stock
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Cisco ISR 1100 C1111-4PLTELA is a compact, fanless branch router from the ISR 1000 Series, built for small branch and remote offices, retail stores, clinics and teleworker sites that need plug-and-play deployment with an LTE link. It runs Cisco IOS XE and can operate in autonomous mode or under SD-WAN controller management.
This variant provides four Gigabit Ethernet LAN ports and two Gigabit Ethernet WAN ports, one copper and one combo copper/SFP. An embedded LTE Advanced CAT6 modem is included for the LATAM and APAC regions, so the router can carry primary or backup WAN traffic over cellular. There is no integrated Wi-Fi on this model. Autonomous mode IPv4 forwarding reaches 1600 Mbps at 512B, IPsec throughput reaches 500 Mbps and SD-WAN IPsec throughput reaches 450 Mbps. It has 4 GB DRAM and 4 GB flash, and ships with the IP Base technology package, with further technology licences and SD-WAN subscriptions available.
The combo port accepts Cisco GLC SFP optics including GLC-SX-MM(D), GLC-LH-SM(D), GLC-T and GLC-TE, plus CWDM and DWDM SFPs. Optional PoE and PoE+ on the LAN ports is available through the ISR-1100-POE2 module with a 115W power supply, and a rack-mount kit (ACS-1100-RM-19) is available.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Combines routing, switching, integrated security and an LTE Advanced uplink in a fanless compact chassis
- Runs Cisco IOS XE in autonomous mode or controller-managed SD-WAN mode
- Automatic failover between the primary WAN and the backup LTE link
- On-box security including application-aware firewall, IPS/IDS, Advanced Malware Protection, URL filtering and Cisco Umbrella integration
- Voice support with Cisco Unified Border Element (CUBE) and SRST
- Management through WebUI, Cisco DNA Center, Catalyst SD-WAN Manager or Cisco Security Cloud Control
- Pay-as-you-grow licensing with Smart Licensing
- Optional PoE and PoE+ upgrade for the LAN ports
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- WAN interfaces: 2x GE (1 copper, 1 combo copper/SFP)
- LAN interfaces: 4x GE (copper)
- Cellular: Embedded LTE Advanced CAT6, LTELA variant for LATAM and APAC
- Wi-Fi: None (non-W model)
- DSL: None
- DRAM / flash: 4 GB / 4 GB
- Console: 1x Micro-USB/RJ-45
- USB: 1x Type A USB 3.0
- Autonomous mode IPv4 forwarding (512B): up to 1600 Mbps
- Autonomous mode IPsec throughput (512B): up to 500 Mbps
- SD-WAN IPsec throughput (512B): up to 450 Mbps
- SD-WAN IPsec with QoS, DPI and Flexible NetFlow (512B): up to 200 Mbps
- SD-WAN overlay tunnels: 200
- IPsec SVTI tunnels: 100
- IPv4 routes: 280K
- IPv6 routes: 260K
- NAT sessions: 100K
- VRFs: 1K
- External power supply: 100 to 240 VAC, 50 to 60 Hz, 12 VDC output, max 66 W
- Maximum power consumption: 26.8 W (excluding external supply loss)
- Optional PoE: 2x PoE or 1x PoE+ on LAN ports, requires ISR-1100-POE2 and a 115W power supply
- Dimensions (H x W x D): 1.75 x 12.70 x 9.60 in. (4.45 x 32.26 x 24.38 cm)
- Weight: 4.50 lb (2.04 kg)
- Operating temperature: 0 to 40 C at sea level
- Operating humidity: 10% to 85% RH non-condensing
FAQs
Q: Which licence does this router ship with?
A: It ships with the IP Base technology package on a single Cisco IOS XE Universal image. Application Experience, Unified Communications, Security and IPsec performance licences can be added, and SD-WAN uses Cisco DNA subscriptions with a Smart Account.
Q: Can this router supply PoE to connected devices?
A: Only with the optional ISR-1100-POE2 module and a 115W power supply, which gives either 2 PoE ports or 1 PoE+ port across the four LAN ports. Without them there is no PoE output.
Q: Which optics fit the combo WAN port?
A: The combo copper/SFP port accepts Cisco GLC optics such as GLC-SX-MM(D), GLC-LH-SM(D), GLC-T and GLC-TE, as well as CWDM and DWDM SFPs and 100M FX/LX SFPs.
Q: How does the LTELA variant differ from other C1111 models?
A: The LTELA variant carries an embedded LTE Advanced CAT6 modem for the LATAM and APAC regions and has no integrated Wi-Fi. Other C1111 SKUs use different cellular regions or add Wi-Fi.
Q: Can it run in SD-WAN mode?
A: Yes. It supports both autonomous IOS XE and controller-managed IOS XE SD-WAN, with up to 200 SD-WAN overlay tunnels and up to 450 Mbps of SD-WAN IPsec throughput at 512B.
