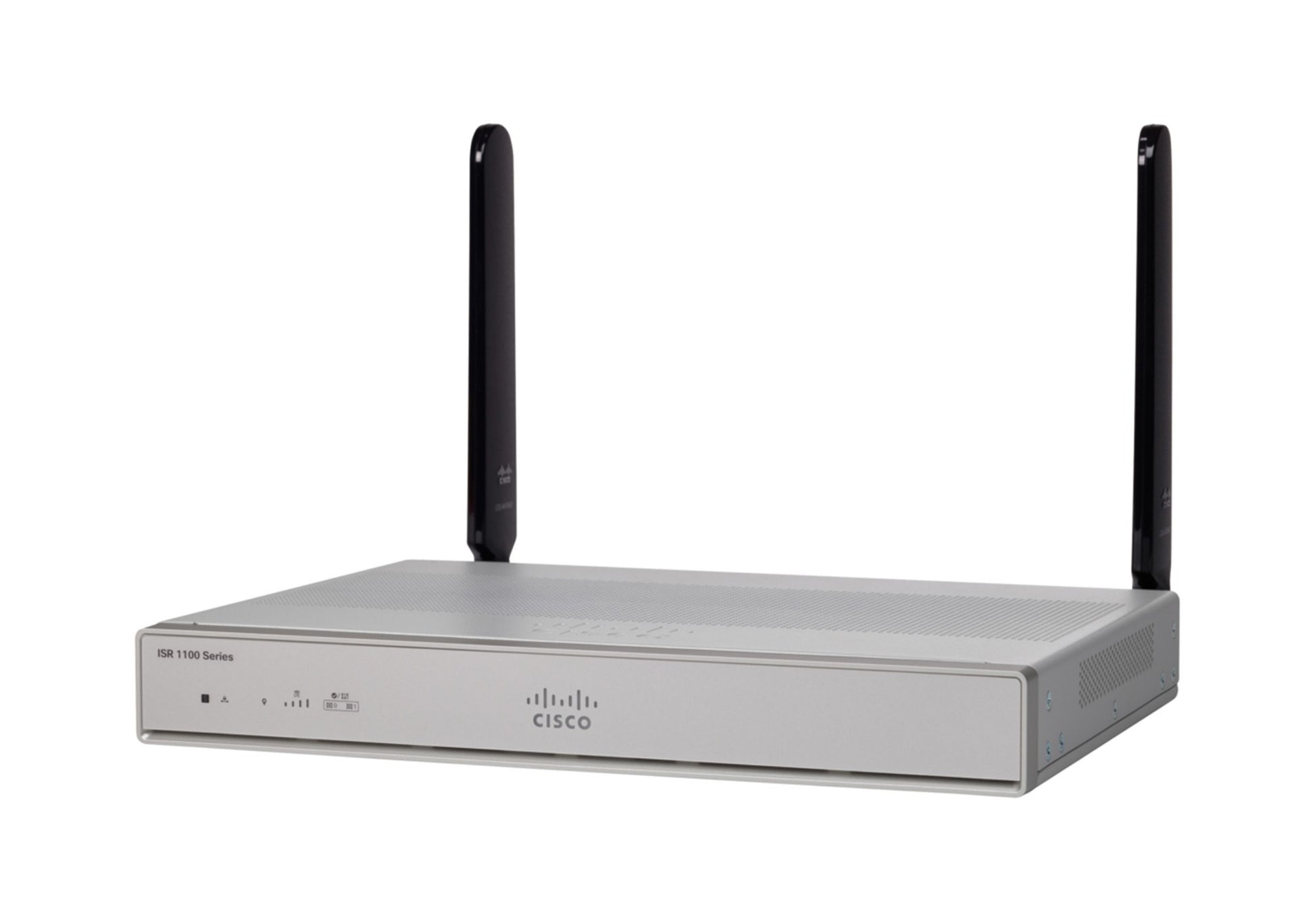

Cisco C1111-8P | ISR 1100 Router, 8x GE LAN PoE+, 2x GE WAN, SFP
SKU:C1111-8P
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The ISR 1100 C1111-8P is a fixed-configuration branch router for small and branch-office WAN and SD-WAN deployments. It combines routing with built-in LAN switching, so a single unit can serve IP phones, access points and cameras at the edge of the network. It runs Cisco IOS XE and can operate in either autonomous mode or Cisco SD-WAN mode.
The C1111-8P provides eight Gigabit Ethernet copper LAN ports with PoE/PoE+ capability, and two Gigabit Ethernet WAN ports: one copper port and one copper/SFP combo port for fibre uplinks. It has 4 GB of DRAM and 4 GB of flash, with no Wi-Fi and no LTE on this SKU. SD-WAN IPsec throughput reaches up to 650 Mbps (512B), and autonomous mode IPv4 forwarding throughput reaches up to 1800 Mbps (512B). SD-WAN operation uses Cisco DNA subscription licensing, and the platform is DNA-ready.
The unit has a Micro-USB/RJ-45 console port and a USB 3.0 Type A port for storage. Power comes from an external AC supply, and a 150 W supply is needed for the PoE/PoE+ upgrade. Cisco DNA Center can manage it in autonomous mode.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Runs in either autonomous IOS XE mode or Cisco SD-WAN mode
- Eight integrated Gigabit Ethernet LAN ports with optional PoE/PoE+ upgrade
- Dual Gigabit Ethernet WAN with a copper/SFP combo port for fibre uplinks
- USB 3.0 Type A port for convenient storage
- Cisco DNA Center support for CLI templates, inventory and software image management in autonomous mode
- DNA-ready platform for SD-WAN deployments
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- WAN ports: 2x GE (1 copper port + 1 copper/SFP combo port)
- LAN ports: 8x GE (copper)
- PoE/PoE+: optional upgrade, 4 PoE / 2 PoE+ on the 8 GE LAN ports
- Memory: 4 GB DRAM, 4 GB flash
- Console: 1 integrated Micro-USB/RJ-45 console port
- USB: 1x USB 3.0 Type A port
- SD-WAN IPsec throughput (512B): up to 650 Mbps
- SD-WAN profile (IPsec + QoS + DPI + Flexible NetFlow, 512B): up to 250 Mbps
- SD-WAN overlay tunnels: 200
- Autonomous mode IPv4 forwarding throughput (512B): up to 1800 Mbps
- Autonomous mode IPsec throughput (512B): up to 600 Mbps
- IPsec SVTI tunnels: 100
- IPv4 routes: 280K
- IPv6 routes: 260K
- NAT sessions: 100K
- VRFs: 1K
- Power input: 100 to 240 VAC, 50 to 60 Hz (external supply)
- Power supply output: 12 VDC, 66 W maximum; 150 W supply required for PoE/PoE+
- Maximum power consumption (excluding external supply loss): 19.2 W
- Dimensions (H x W x D): 1.75 x 12.70 x 9.015 in.
- Weight: 4.37 lb (1.98 kg)
- Operating temperature: 0 to 40 C at sea level
- Operating humidity: 10% to 85% relative humidity (noncondensing)
- Minimum software: Cisco IOS XE 16.6.1
FAQs
Q: Does the C1111-8P need a licence for SD-WAN?
A: SD-WAN operation requires Cisco DNA subscription licensing. The C1111-8P is a DNA-ready platform.
Q: What power supply does it need for PoE?
A: The optional PoE/PoE+ upgrade requires a 150 W power supply. The standard supply is rated at 12 VDC and 66 W maximum.
Q: Which optics does the WAN combo port take?
A: The combo WAN port accepts SFP optics for fibre uplinks, alongside the dedicated copper WAN port.
Q: Does this model include Wi-Fi or LTE?
A: No. This SKU is a wired router with 8 GE LAN ports and 2 GE WAN ports, and has no Wi-Fi or LTE.
Q: Which software release does it require?
A: Cisco IOS XE 16.6.1 is the minimum supported release for most 111x models. SD-WAN support depends on the release, so check the Cisco SD-WAN Device Compatibility Matrix.
