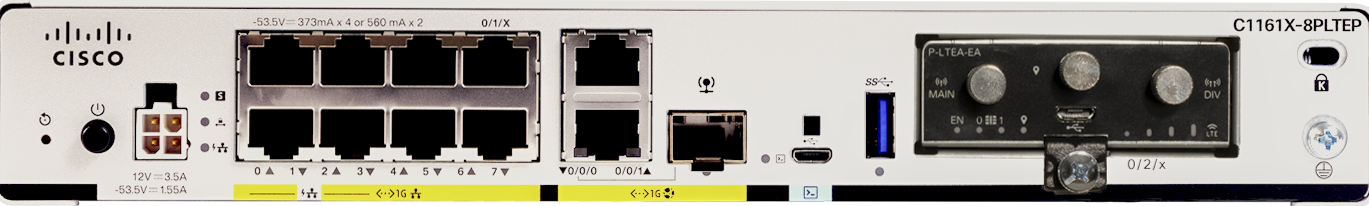

Cisco C1161-8PLTEP | ISR 1100 8-Port Gigabit PoE+ Router, LTE, 4GB/4GB
SKU:C1161-8PLTEP
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The ISR 1100 is a compact, fanless branch router for small offices, retail stores, medical clinics, remote offices and university campuses that need a router, PoE switch and cellular WAN in one device. It also suits managed-service and M2M customer premises deployments. It runs Cisco IOS XE or controller-managed IOS XE SD-WAN from the same hardware.
There are 8 Gigabit Ethernet LAN ports with PoE/PoE+ capability (4 PoE and 2 PoE+ across the LAN ports), plus two Gigabit WAN ports, one copper and one copper/SFP combo. A pluggable cellular module slot supports LTE modules from CAT4 to CAT18, and 5G modules are also supported. This LTE variant has 4 GB DRAM and 4 GB flash. IPsec throughput reaches up to 700 Mbps in autonomous mode and up to 850 Mbps with SD-WAN. PoE/PoE+ requires the 150W power supply.
The Universal IOS XE image ships with IP Base as the default technology package, with optional Application Experience, Security and IPsec/HSEC licences available. Cisco Smart Licensing is supported. Supported cellular modules include P-LTE-VZ, P-LTEA-EA, P-LTEA7-NA and P-LTEAP18-GL.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Runs traditional Cisco IOS XE or controller-managed IOS XE SD-WAN from the same hardware
- Fanless, small-form-factor design for small offices and branches
- On-box security including NGFW with application awareness, IPS/IDS, Advanced Malware Protection, URL filtering and Cisco Umbrella SIG
- Management via WebUI, Cisco DNA Center or Catalyst SD-WAN Manager
- Cellular modules provide automatic failover between primary and backup links
- Dual micro-SIM sockets with remote firmware upgrade and SIM lock/unlock on cellular modules
- FirstNet certified when fitted with the CAT18 module (P-LTEAP18-GL)
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- LAN ports: 8 x Gigabit Ethernet
- WAN ports: 1 x GE copper plus 1 x GE copper/SFP combo
- PoE: 4 PoE / 2 PoE+ capable LAN ports, requires 150W power supply
- Cellular: pluggable module slot, LTE (CAT4, CAT6, CAT7, CAT18) and 5G modules supported
- Memory: 4 GB DRAM / 4 GB flash
- Console: 1 x micro-USB
- USB: 1 x USB 3.0 Type-A
- Autonomous mode IPv4 forwarding throughput (512B): up to 1900 Mbps
- Autonomous mode IPsec throughput (512B): up to 700 Mbps
- SD-WAN IPsec throughput (512B): up to 850 Mbps
- SD-WAN IPsec + QoS + DPI + Flexible NetFlow (512B): up to 350 Mbps
- SD-WAN overlay tunnels: 200
- IPsec SVTI tunnels: 100
- IPv4 routes: 800K
- IPv6 routes: 700K
- NAT sessions: 100K
- VRFs: 4K
- Power supply: external AC, 100-240 VAC, 12 VDC output, 66 W maximum
- Maximum power consumption: 24.8 W
- Dimensions (H x W x D): 1.65 x 10.80 x 7.85 in
- Weight: 1.70 kg (3.74 lb)
- Operating temperature: 0 to 40 C
- Operating humidity: 5% to 85% RH (noncondensing)
- Minimum IOS XE version: 16.11.1
FAQs
Q: Does this router need a licence?
A: It runs the Universal Cisco IOS XE image with IP Base as the default technology package. Optional Application Experience, Security and IPsec/HSEC licences can be activated on the Universal image, and Cisco Smart Licensing needs a Smart Account. The WebUI needs no licence.
Q: What power supply is needed for PoE?
A: PoE/PoE+ on the LAN ports requires the 150W power supply. The standard external adapter is rated at 66 W maximum output. PoE output is -53.5 VDC across 4 PoE and 2 PoE+ capable LAN ports.
Q: Which cellular modules does it support?
A: It supports LTE modules including CAT4 (P-LTE-VZ, P-LTE-US, P-LTE-GB, P-LTE-MNA, P-LTE-IN, P-LTE-JN), CAT6 (P-LTEA-EA, P-LTEA-LA), CAT7 (P-LTEA7-NA, P-LTEA7-EAL, P-LTEA7-JP) and CAT18 (P-LTEAP18-GL). 5G modules P-5GS6-GL and P-5GS6-R16-SA are also supported.
Q: What software version does it require?
A: The minimum IOS XE version is 16.11.1, and SD-WAN mode requires IOS XE SD-WAN 17.2.1 or later. A 5G NSA module needs IOS XE 17.9.2a or later, and a 5G SA module needs 17.12.1a or later.
Q: How does it differ from the C1161X-8PLTEP?
A: This C1161-8PLTEP has 4 GB DRAM and 4 GB flash. The C1161X-8PLTEP variant has 8 GB DRAM and 8 GB flash.
