Cisco N9396Y12C-SE1 | Nexus 9300-SE1 96-Port 25G/50G Switch, 12x 100G QSFP28

SKU:N9396Y12C-SE1

Stock Status: Enquire

Request Quote

Sale Sold out

Shipping calculated at checkout.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

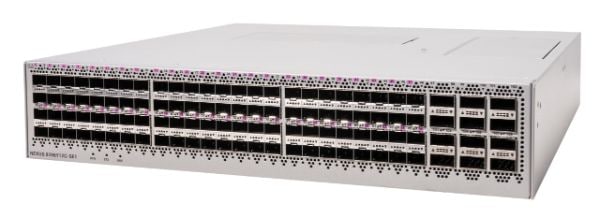

The Nexus 9300-SE1 is a 2RU fixed data-centre switch built on the Cisco Silicon One E100 ASIC. It is designed for leaf and spine deployments, VXLAN EVPN fabrics, IP Fabric for Media and AI/ML network fabrics where high port density and wire-rate encryption matter.

This variant provides 48 x 1/10/25G SFP ports and 48 x 1/10/25/50G SFP56 ports for downlinks, with 12 x 40/100G QSFP28 uplinks. Total bandwidth is 9.6 Tbps with a forwarding rate of 2.304 Bpps. MACsec is supported on all ports. It is powered by a 6-core CPU with 32 GB of default memory, expandable by a further 32 GB, and a 128 GB SSD. The system buffer is 64 MB. Management is through 1 RJ-45 and 1 SFP management port, a USB port and an RS-232 serial port.

It runs Cisco NX-OS from release 10.6.2. Hot-swappable N+1 power supplies and fans are supported, with 1400W AC, 2000W DC and 2000W HVAC/HVDC options, in port-side intake or port-side exhaust airflow. Compatible PSUs include NXA-PAC-1400W-PI, NXA-PAC-1400W-PE and NXA-PDC-2KW-PI, and the fan trays are NXASFAN-160CFM2PI and NXASFAN-160CFM2PE.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco Silicon One E100 ASIC with wire-rate encryption
- IEEE 802.1ae MACsec on all ports, with IPSec and VXLANsec capability
- NX-OS with VXLAN EVPN including hierarchical multisite, and IP Fabric for Media
- IPv4/IPv6 unicast and multicast routing including BGP, OSPF, IS-IS, EIGRP, RIPv2, PIM-SM, SSM and MSDP, plus Segment Routing
- Congestion management, flow control and telemetry designed for AI/ML fabrics
- Day-0 automation with POAP, Ansible, NETCONF/RESTCONF/gNMI, REST API and model-driven telemetry
- Virtual Port-Channel (vPC), ECMP routing and Software Maintenance Upgrades for high availability
- Hot-swappable N+1 power supplies and fans
- Managed through Cisco Nexus Dashboard

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Downlink ports: 48 x 1/10/25G SFP + 48 x 1/10/25/50G SFP56
- Uplink ports: 12 x 40/100G QSFP28
- Form factor: 2RU
- Bandwidth: 9.6 Tbps
- Forwarding rate: 2.304 Bpps
- ASIC: Cisco Silicon One E100
- CPU: 6 cores
- System memory: 32 GB default, expandable by 32 GB
- SSD: 128 GB
- System buffer: 64 MB
- Management ports: 1 RJ-45 and 1 SFP
- USB ports: 1
- RS-232 serial ports: 1
- Power supplies: 1400W AC, 2000W DC, 2000W HVAC/HVDC (N+1, hot-swappable)
- Typical power: 325 W (port-side intake) / 346 W (port-side exhaust)
- Maximum power: 683 W (port-side intake) / 770 W (port-side exhaust)
- Fans: 3 (NXASFAN-160CFM2PI / NXASFAN-160CFM2PE)
- Airflow: Port-side intake and port-side exhaust
- Dimensions (H x W x D): 86 x 442 x 468 mm
- Weight (without PSUs or fans): 18.8 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Humidity: 5 to 95% (non-condensing)
- Altitude: 0 to 4000 m
- MTBF: 354,280 hours
- Minimum NX-OS image: 10.6.2

FAQs

Q: Does this switch need a licence?
A: It runs Cisco NX-OS, and the default software provides a Layer-2 security and management feature set. Layer-3 IP unicast and multicast routing and Cisco Nexus Data Broker need additional licences, available as subscription or perpetual in Essentials, Advantage and Premier tiers.

Q: Which power supplies and fan trays does it use?
A: Compatible power supplies are NXA-PAC-1400W-PI, NXA-PAC-1400W-PE and NXA-PDC-2KW-PI, supporting N+1 redundancy. Compatible fan trays are NXASFAN-160CFM2PI and NXASFAN-160CFM2PE. Choose port-side intake or port-side exhaust parts to match your airflow design.

Q: Which NX-OS release does it require?
A: The minimum supported NX-OS image is 10.6.2.

Q: How does it differ from the other Nexus 9300-SE1 models?
A: This model has 48 x 1/10/25G SFP and 48 x 1/10/25/50G SFP56 downlinks with 12 x 40/100G QSFP28 uplinks in 2RU. The N9396T12C-SE1 has 96 x 10GBASE-T ports, the N9348Y12C-SE1 is a 1RU model with 32 + 16 SFP ports, and the N9336C-SE1 has 36 x QSFP28 ports.

Q: Can the QSFP28 ports be broken out?
A: Yes. Breakout support includes 4x25G and 2x50G.
