Cisco

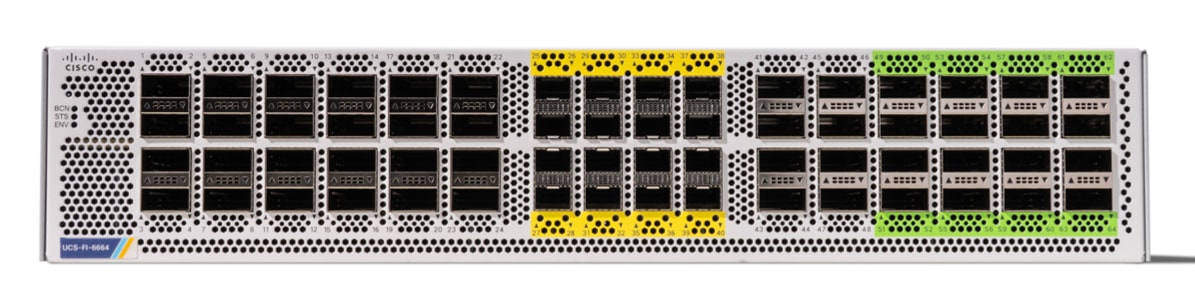

Cisco UCS-FI-6664 | UCS 6600 64-Port 100G Fabric Interconnect, 2RU

UCS-FI-6664

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCS 6664 is a 2RU top-of-rack fabric interconnect from the Cisco UCS 6600 Series. It provides LAN and SAN connectivity and a single management domain for UCS X-Series, B-Series and managed C-Series servers, and suits environments moving to 100G Ethernet and 64G Fibre Channel with converged LAN/SAN, IP storage and NVMe-oF traffic.

The 64 fixed ports include 48 x 40/100GbE QSFP28 ports and 16 unified ports (ports 25-40) that run as 10/25/50G SFP Ethernet or 16/32/64G Fibre Channel. Switching capacity is up to 11.648 Tbps in a cut-through design with sub-microsecond latency. This 64-port, 2RU, 100G model differs from the 1RU UCS 6652, which offers 52 ports of 10/25/50G with 400G uplinks. Power comes from up to two 1400W AC platinum supplies with four hot-swappable fan modules. A mandatory perpetual software licence (UCS-FI-6664-SW) is auto-included and activates all ports and software features.

The 6664 works with UCS X9508 and UCS 5108 chassis, UCSX-9108-25G, UCSX-9108-100G and IOM 2408 modules, and UCS VIC 1400, 14000 and 15000 series adapters. It supports B-/X-Series M5 and newer and C-Series M6 and newer servers, and is managed through Cisco UCS Manager or Cisco Intersight.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cut-through architecture with deterministic, low-latency, line-rate 10/25/40/50/100GbE regardless of packet size or enabled services
- Unified fabric consolidates LAN and SAN traffic (FC, iSCSI, NFS, NVMe-oF over FC/TCP/RoCEv2) on one fabric
- Priority-based Flow Control and systemwide bandwidth management for lossless Ethernet and consistent QoS
- Latency under 1 microsecond
- Redundant hot-swappable fans and power supplies with front-to-back cooling
- All QSFP28 ports can run in 40/100 Gbps Ethernet mode
- Supports Intersight Managed Mode and Cisco UCS Manager in a highly available configuration
- L1/L2 ports for HA clustering of two fabric interconnects

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2RU
- Fixed ports: 64 (48 x 40/100GbE QSFP28 + 16 unified ports)
- Unified ports: 16 (ports 25-40), 10/25/50G SFP Ethernet or 16/32/64G Fibre Channel
- 10/25-Gbps Ethernet ports: up to 64
- 50-Gbps Ethernet ports: up to 16
- 40/100-Gbps Ethernet ports: up to 48 (ports 1-24 and 41-64)
- 16/32/64-Gbps Fibre Channel ports: up to 16
- Throughput: 11.648 Tbps
- Supported speeds: 10/25/40/50/100-Gbps Ethernet/FCoE and 16/32/64-Gbps Fibre Channel
- CPU: 4 cores
- System memory: 32 GB
- Management ports: 1
- USB ports: 1
- Power supplies: up to 2 x 1400W AC (UCS-PSU-6600-AC)
- Typical operating power: 605W
- Maximum power (AC): 1100W
- Input voltage: 100 to 240 VAC, 50 to 60 Hz
- Fans: 4 hot-swappable (UCS-FAN-6664)
- Airflow: front (PSU/fan-side) to back (port-side exhaust)
- Dimensions (H x W x D): 8.6 x 44.2 x 56.6 cm
- Weight (with two power supplies and four fans): 20 kg
- Operating temperature: 0 to 40 C
- Humidity: 5 to 95%
- RoHS compliant: Yes

FAQs

Q: Does the UCS 6664 need a separate software licence?
A: No. A perpetual software licence (UCS-FI-6664-SW) is auto-included and activates all ports and software features. Intersight management may need separate Intersight licensing.

Q: What power supplies does it use?
A: It takes up to two UCS-PSU-6600-AC platinum 1400W supplies (100-240VAC, 50-60Hz) and four UCS-FAN-6664 fan modules. Typical operating power is 605W and maximum is 1100W.

Q: Which chassis and servers does it work with?
A: It supports UCS X9508 and UCS 5108 chassis, using UCSX-9108-25G, UCSX-9108-100G or IOM 2408 modules. Servers supported are B-/X-Series M5 and newer and C-Series M6 and newer. The 5108 chassis needs UCS release 6.0(2) or later.

Q: How does the UCS 6664 differ from the UCS 6652?
A: The 6664 is a 2RU model with 64 ports and 100G Ethernet. The UCS 6652 is a 1RU model with 52 ports of 10/25/50G and 400G uplinks.

Q: Can the unified ports run Fibre Channel?
A: Yes. The 16 unified ports (ports 25-40) run as 10/25/50G SFP Ethernet or 16/32/64G Fibre Channel.
