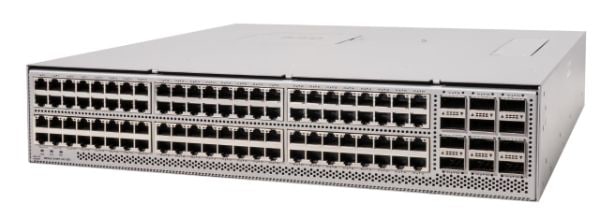

Cisco N9396T12C-SE1 | Nexus 9300 96-Port 10G-T Switch, 12x 100G QSFP28, SE1

SKU:N9396T12C-SE1

Stock Status: Enquire

Request Quote

Sale Sold out

Shipping calculated at checkout.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Nexus 9300-SE1 is a fixed 2RU data-centre switch built for top-of-rack and leaf deployments that need dense copper server access with high-speed uplinks. It runs in NX-OS mode and suits environments consolidating many 10G-T servers onto a small rack footprint.

It provides 96 multi-rate 100M/1/10G BASE-T ports and 12 QSFP28 ports supporting 40/100G for uplinks. The chassis is powered by two hot-swappable power supplies in a 1+1 redundant arrangement, with 1400W AC or 2000W DC options. Three hot-swappable fan modules are available in port-side intake or port-side exhaust airflow. Typical power draw is 583.5 W, with a maximum of 794 W, and the chassis measures 442.3 x 470.6 x 86 mm and weighs 18.8 kg.

The switch works with the NXA-PAC-1400W-PE, NXA-PAC-1400W-PI and NXA-PDC-2KW-PI power supplies and the NXASFAN-160CFM2PE and NXASFAN-160CFM2PI fan modules. The Australian AC power cord is CAB-9K10A-AU, and the 2000W DC supply uses the PWR-2KW-DC-CBL cable.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Fixed 2RU chassis with 1+1 redundant, hot-swappable power supplies
- Three hot-swappable fan modules in port-side intake or exhaust airflow
- AC (1400W) and DC (2000W) power supply options
- Runs in NX-OS mode
- 96 multi-rate 100M/1/10G BASE-T ports for high-density copper server access
- 12 x 40/100G QSFP28 uplink ports for high-speed aggregation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Ports: 96 x 100M/1/10G BASE-T
- Uplink ports: 12 x 40/100G QSFP28
- Form factor: 2RU fixed chassis
- Power supply modules: 2 hot-swappable (1+1 redundancy)
- Power supply options: NXA-PAC-1400W-PE, NXA-PAC-1400W-PI (1400W AC), NXA-PDC-2KW-PI (2000W DC)
- Fan modules: 3 x NXASFAN-160CFM2PE (port-side exhaust) or NXASFAN-160CFM2PI (port-side intake)
- Typical power consumption: 583.5 W
- Maximum power consumption: 794 W
- Heat dissipation: 2763.84 BTU/hr
- 1400W AC PSU input: 100-127 VAC / 200-240 VAC, 50-60 Hz
- 1400W AC PSU output: 1,000 W at 100-127 VAC, 1,400 W at 200-240 VAC
- 1400W AC PSU efficiency: 90% or greater (20-100% load)
- 2000W DC PSU input: nominal -48 to -60 VDC
- 2000W DC PSU output: 2000 W
- Dimensions (W x D x H): 442.3 x 470.6 x 86 mm (2 RU)
- Weight (chassis): 18.8 kg
- Operating temperature: 0 to 40 C
- Non-operating temperature: -40 to 70 C
- Operating humidity: 8 to 80%
- Non-operating humidity: 5 to 95%
- Operating altitude: 0 to 3,048 m
- Safety standards: IEC 62368-1 3rd Ed, UL 60950-1, UL 62368-1, AS/NZS 62368-1

FAQs

Q: What power supplies does the N9396T12C-SE1 use?
A: It takes two hot-swappable power supplies in a 1+1 redundant arrangement. Supported models are the NXA-PAC-1400W-PE and NXA-PAC-1400W-PI (1400W AC) and the NXA-PDC-2KW-PI (2000W DC).

Q: What airflow options are available?
A: The three fan modules come in port-side exhaust (NXASFAN-160CFM2PE) or port-side intake (NXASFAN-160CFM2PI) versions. Choose the airflow direction to suit your rack layout.

Q: What is the power consumption?
A: Typical consumption is 583.5 W and the maximum is 794 W, with heat dissipation of 2763.84 BTU/hr.

Q: Which power cord is used in Australia?
A: The Australian AC power cord is CAB-9K10A-AU. The 2000W DC supply uses the PWR-2KW-DC-CBL cable.

Q: What speeds do the front-panel ports support?
A: The 96 copper ports are multi-rate 100M/1/10G BASE-T. The 12 QSFP28 ports support 40G and 100G.
