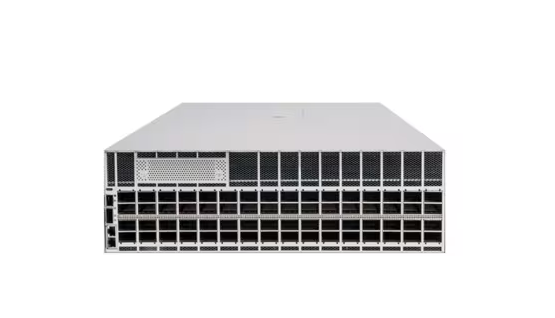

Cisco N9364E-SP2R-O | Nexus 9300 64-Port 800G OSFP Switch, 3RU

SKU:N9364E-SP2R-O

Stock Status: Enquire

Request Quote

Sale Sold out

Shipping calculated at checkout.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Nexus 9300 N9364E-SP2R-O is a 3RU data centre switch built on the Cisco Silicon One P200 ASIC. It is aimed at high-density spine layers, AI/ML clusters and scale-across data centre interconnect, and can run as a spine or leaf in NX-OS VXLAN EVPN fabrics or as an ACI spine managed by APIC.

This OSFP variant provides 64 x 800G OSFP ports with up to 102.4 Tbps of bandwidth and 19.2 bpps forwarding. Ports also run at 400G, 200G and 100G, with breakout options down to 4x10G, which supports a staged migration from 10/25/50G to 100/400/800G. The ASIC has a 144 MB on-die shared buffer plus 16 GB of HBM, and the system carries 64 GB of DDR5 memory and a 240 GB SSD.

Power comes from four 3000W HVAC/HVDC supplies in 2+2 redundancy with seven fans in 6+1 redundancy and port-side intake airflow. Typical draw is 2500 W and maximum is 5100 W. Layer-2 security and management features are in the default software, while Layer-3 IP unicast and multicast routing needs Cisco DCN Essentials, Advantage or Premier subscription licensing.

Supported OSFP optics are listed in the Cisco TMG Compatibility Matrix. Spare and accessory part numbers include PSU3KW-HVPI, FAN-PI-V4, FAN-1RU-PI-V2 and NXK-ACC-KIT2-2RU.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Supports NX-OS VXLAN EVPN, vPC and ACI spine mode managed by APIC
- Integrates with Cisco Nexus Dashboard
- Line-rate MACsec (IEEE 802.1AE) and IPsec
- AI/ML fabric features including PFC, ECN, RoCE lossless transport, ETS, DCBX, WRED and intelligent buffer management
- Programmability with POAP, Ansible, NETCONF/RESTCONF/gNMI, OpenConfig, model-driven telemetry and REST API
- Cisco Application Framework (CAF) for hosting third-party applications
- 128-way ECMP
- Hot-swappable power supplies and fans with redundancy

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 64 x 800G OSFP
- Breakout support: 2x400G, 4x200G, 8x100G, 1x400G, 2x200G, 4x100G, 8x50G, 4x50G, 2x100G, 4x25G, 4x10G
- Bandwidth: up to 102.4 Tbps
- Packet forwarding rate: 19.2 bpps
- ASIC: Cisco Silicon One P200 (51.2 Tbps full-duplex, deep buffer)
- High bandwidth memory (HBM): 16 GB
- On-die buffer: 144 MB fully shared
- System memory: 64 GB DDR5
- SSD: 240 GB
- CPU: AMD Ryzen Embedded V3000 Series 3.0 GHz
- USB: 1 port
- RS-232 serial console ports: 1
- Management ports: 1
- Power supplies: 4 x 3000W HVAC/HVDC, 2+2 redundancy
- Fans: 7 hot-swappable, 6+1 redundancy
- Typical power: 2500 W
- Maximum power: 5100 W
- PSU input voltage: 90-140 VAC, 180-305 VAC, 190-400 VDC
- PSU input frequency: 47-63 Hz
- PSU efficiency: 80PLUS Platinum
- Dimensions (H x W x D): 5.12 x 17.29 x 24.69 inches (3RU)
- Weight (with PSUs and fans): 72 lbs (32.65 kg)
- Operating temperature: 0 to 40 C (32 to 104 F)
- Humidity: 5 to 95% non-condensing
- Altitude: 0 to 3000 m (0 to 9,842 ft)

FAQs

Q: Does this switch need a licence for Layer-3 routing?
A: Layer-3 IP unicast and multicast routing needs additional licences. The switch uses Cisco Data Center Network (DCN) Essentials, Advantage and Premier subscription tiers.

Q: What power does the N9364E-SP2R-O require?
A: It uses four 3000W HVAC/HVDC supplies in 2+2 redundancy. Input is 90-140 VAC, 180-305 VAC or 190-400 VDC at 47-63 Hz. Typical draw is 2500 W and maximum is 5100 W.

Q: Which optics does it work with?
A: It uses OSFP optics and cables listed in the Cisco TMG Compatibility Matrix. Ports run at 800G, 400G, 200G or 100G, with breakout options to lower speeds.

Q: How does it differ from the N9364E-SP2R-Q?
A: This -O variant has 64 x 800G OSFP ports, while the N9364E-SP2R-Q uses QSFP-DD ports. Choose based on the optic form factor in your fabric.

Q: Can it run in an ACI fabric?
A: Yes. It can operate as an ACI spine managed by APIC, or in NX-OS mode with VXLAN EVPN as spine or leaf, and it integrates with Cisco Nexus Dashboard.
