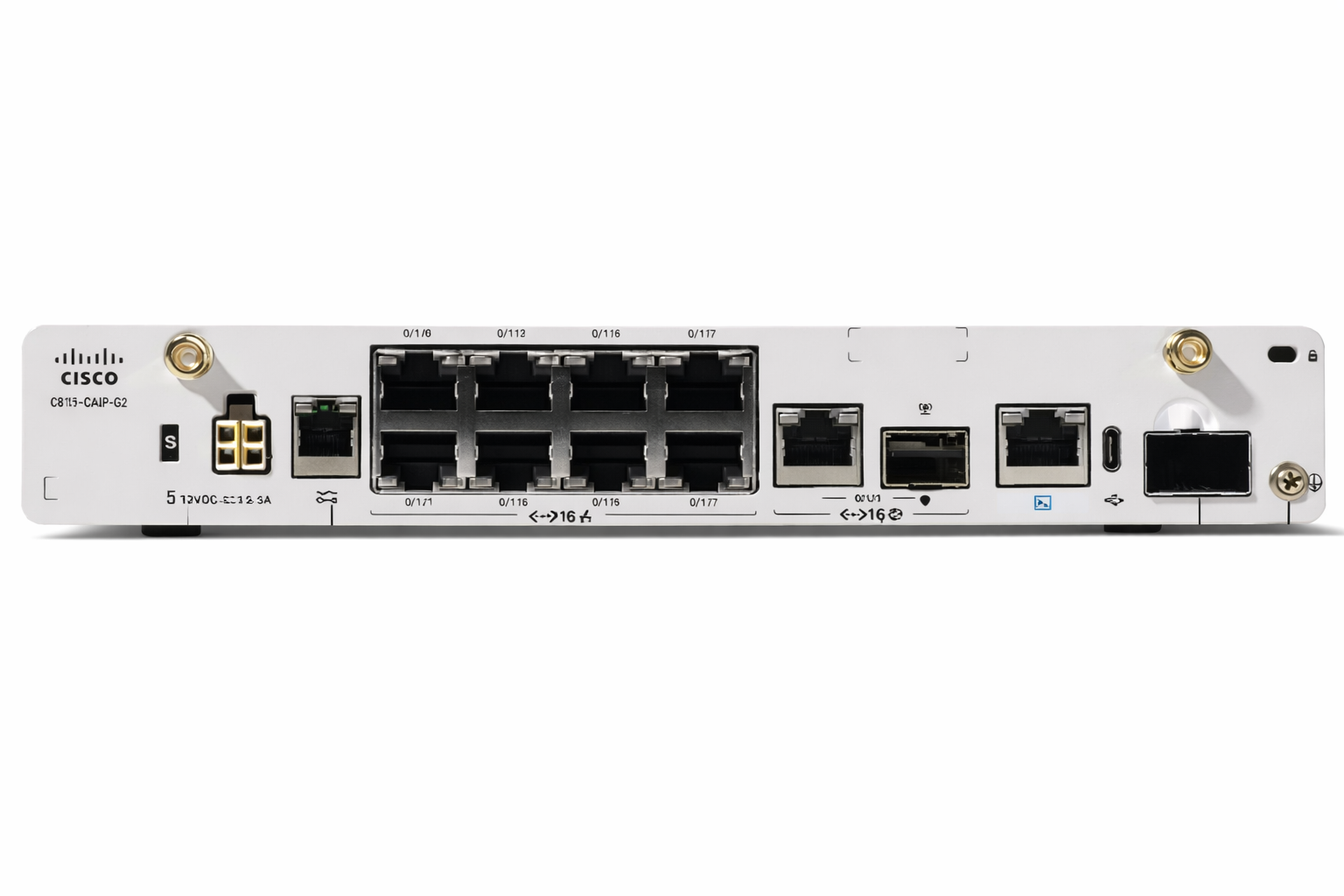

• Cisco CB75-CAIP-G2 NIC with ethernet ports on C8151-CVAP-G2 back
1 1

Cisco

Cisco C8151-CVAP-G2 | Secure WAN 8100 G2 Router, VDSL/ADSL POTS + 5G RedCap

C8151-CVAP-G2

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Secure WAN 8100 G2 is a fanless small-branch secure router from Cisco's 8100 Series. It suits point-of-sale sites, small branches, remote workers, IoT deployments and temporary or mobile locations that need secure routing or SD-WAN with built-in security and resilient WAN options.

This SKU is defined by its embedded VDSL2/ADSL modem for POTS lines (Annex A) and an embedded 5G RedCap cellular module with dual nano SIM slots. WAN connectivity includes a 1GE RJ-45/SFP combo port, an RJ-11 DSL port and an XGSPON/10G BASE-T port, with 6 x 1GE RJ-45 LAN ports and 2 x 1GE RJ-45 flex ports. Forwarding throughput is 5.6 Gbps (512B), IPsec throughput is 1.5 Gbps, SD-WAN throughput is 900 Mbps and threat protection throughput is 1 Gbps (EMIX).

It runs IOS XE 26.1.1 or later for autonomous routing or SD-WAN, and Catalyst SD-WAN Manager 26.1.1 or later is needed for SD-WAN operation. Power comes from a 66W external supply with a typical draw of 27W, and mounting options include rackmount, desktop, under desk and DIN-rail or wall.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hardware accelerated security and networking
- Fanless design suited to small branches
- Integrated next-generation firewall, Zero Trust capabilities and SASE-ready architecture
- Post-quantum cryptography readiness
- Routing or SD-WAN, managed on-premises, through infrastructure-as-code or from the cloud
- Embedded VDSL2/ADSL modem and 5G RedCap cellular for resilient WAN connectivity
- Blue beacon LED, Kensington lock and ground screw on the front panel
- Multiple mounting options including rackmount, desktop, under desk and DIN-rail or wall

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- WAN ports: 1 x 1GE RJ-45/SFP combo, 1 x RJ-11 (DSL), 1 x XGSPON/10G BASE-T
- LAN ports: 6 x 1GE RJ-45
- Flex ports: 2 x 1GE RJ-45
- Cellular: Embedded 5G RedCap module with dual nano SIM slots
- DSL: VDSL2/ADSL over POTS (Annex A)
- DSL standards: ITU G.993.2 (VDSL2) profiles 8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b; ITU G.992.1 (ADSL), G.992.3 (ADSL2), G.992.5 (ADSL2+)
- 5G FR1 bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n30, n38, n40, n41, n48, n66, n70, n71, n77, n78, n79
- LTE bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B30, B34, B38, B39, B40, B41, B42, B43, B48, B66, B70, B71, B106
- Management port: 1 x RJ-45 console
- Out-of-band management: 1 x USB Type C 3.0
- Forwarding throughput (512B): 5.6 Gbps
- IPsec throughput (512B): 1.5 Gbps
- SD-WAN throughput (512B): 900 Mbps (IPsec + QoS + DPI + Flexible NetFlow)
- Threat protection throughput (EMIX): 1 Gbps (DIA-NAT + ZBFW + IPS + URLF + AMP)
- IPv4 routes: 500K
- IPv6 routes: 500K
- NAT sessions: 100K
- VRFs: 4K
- IPsec tunnels: 250
- Power supply: 66W external, 12 VDC input
- Typical power: 27W
- Dimensions (H x D x W): 1.57 in x 7.8 in x 10.8 in
- Weight: 5.1 lb
- MTBF: more than 100,000 hours
- Operating temperature: 0 to 40 C at sea level, derated 1 C per 1000 ft above 40 C
- Operating humidity: 5% to 85% relative, non-condensing
- Minimum software: IOS XE 26.1.1; Catalyst SD-WAN Manager 26.1.1

FAQs

Q: Which DSL type does this router support?
A: It has an embedded VDSL2/ADSL modem for POTS lines (Annex A), supporting VDSL2 profiles up to 35b plus ADSL, ADSL2 and ADSL2+.

Q: Does it support SD-WAN?
A: Yes. SD-WAN operation needs IOS XE 26.1.1 or later and Cisco Catalyst SD-WAN Manager 26.1.1 or later.

Q: How is it powered, and does it provide PoE?
A: It uses a 66W external power supply with a 12 VDC input and draws about 27W typically. There is no PoE on this model.

Q: Can I fit a different cellular module?
A: No. The 5G RedCap module is embedded in this SKU. The pluggable cellular PIMs are supported only on the C8151-G2 and C8161-G2.

Q: Can I use an SFP on the WAN port?
A: Yes. The 1GE RJ-45/SFP combo WAN port accepts SFP modules.

Q: Where do I find licensing and subscription details?
A: Ordering and software subscription details are in the Cisco 8000 Series Secure Routers Ordering Guide.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
