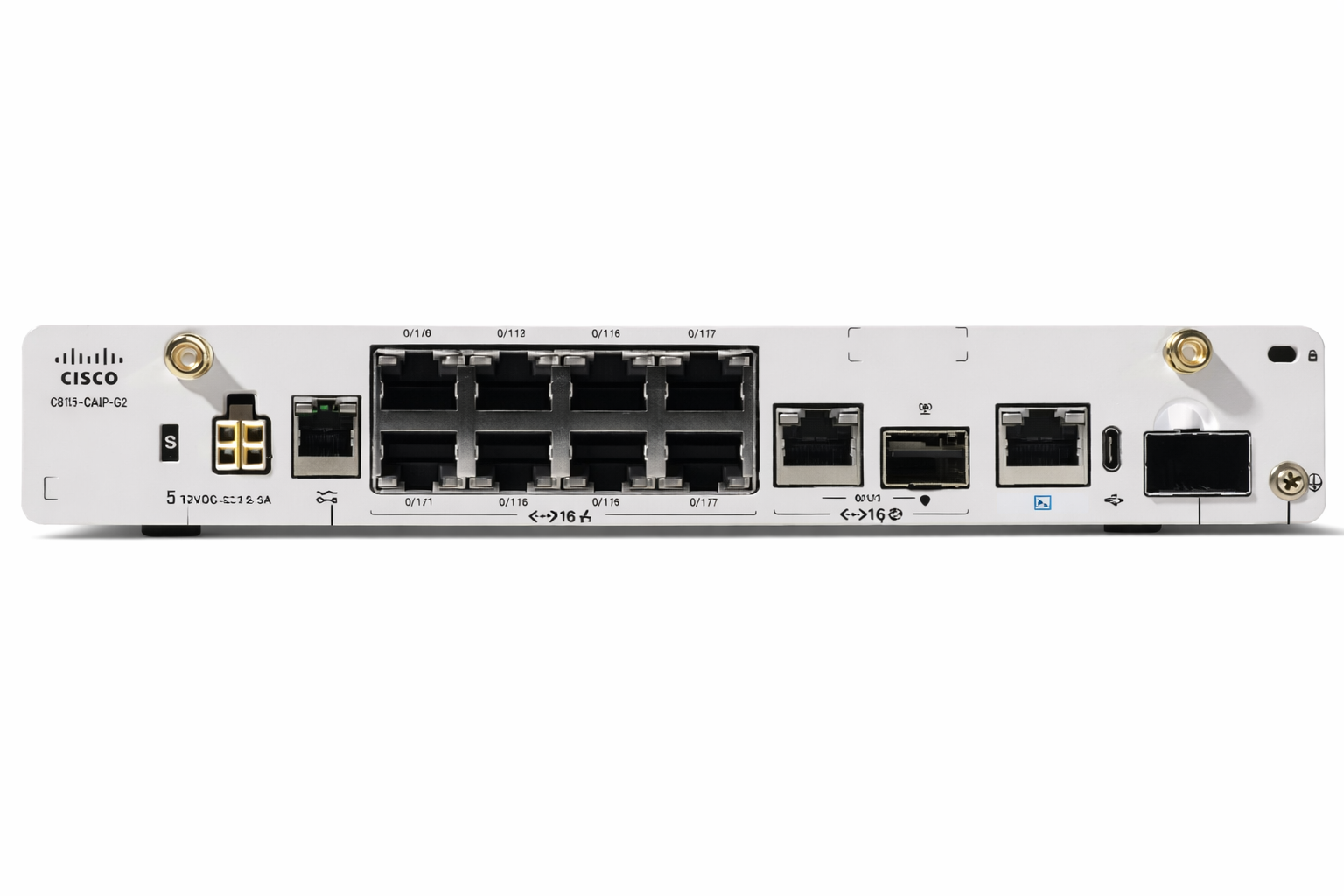

• Back of Cisco CB75-CAIP-G2 NIC in C8151-CVAI-G2 router with Ethernet ports
1 1

Cisco

Cisco C8151-CVAI-G2 | 8100 G2 Router, VDSL2 Annex B/J, Embedded 5G

C8151-CVAI-G2

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 8100 Series G2 is a fanless secure router built for small branch sites, point-of-sale connectivity, remote and home workers, IoT and remote asset management. This model combines an integrated VDSL2/ADSL modem for ISDN lines (Annex B/J) with an embedded 5G RedCap cellular module, so a branch can use DSL or cellular as its primary or backup WAN.

It provides 9 x 1GE ports in total. WAN connectivity covers 1 x 1GE RJ-45/SFP combo, 1 x RJ-11 DSL and 1 x XGSPON/10G BASE-T, alongside 2 flex ports and 6 LAN ports, all 1GE RJ-45. The cellular module has dual nano-SIM slots. Forwarding throughput is 5.6 Gbps (512B), IPsec is 1.5 Gbps, SD-WAN is 900 Mbps and threat protection is 1 Gbps. Power comes from the 66W external AC adapter, with a typical draw of 27W and no PoE output.

The router ships with Cisco Routing OS Essentials as a perpetual licence, with an optional OS Advantage upgrade. It runs autonomous routing or Catalyst SD-WAN from IOS XE 26.1.1. Mounting options include rack mount, desktop, under desk and DIN rail or wall mount.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Fanless design suited to small branch deployments
- Integrated VDSL2/ADSL modem plus embedded 5G RedCap cellular for primary or backup WAN
- Runs autonomous routing or Catalyst SD-WAN
- Integrated next-generation firewall with Zero Trust capabilities and a SASE-ready architecture
- Post-quantum cryptography readiness
- Hardware-accelerated security and networking
- Managed on-premises, via infrastructure-as-code, or from the cloud
- Front-panel status, cellular and blue beacon LEDs, reset button and Kensington lock

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Ports: 9 x 1GE in total
- WAN ports: 1 x 1GE RJ-45/SFP combo, 1 x RJ-11 DSL, 1 x XGSPON/10G BASE-T
- Flex ports: 2 x 1GE RJ-45
- LAN ports: 6 x 1GE RJ-45
- DSL: VDSL2/ADSL over ISDN (Annex B/J)
- DSL standards: ITU G.993.2 (VDSL2) profiles 8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b; G.992.1 (ADSL), G.992.3 (ADSL2), G.992.5 (ADSL2+)
- Cellular: Embedded 5G RedCap module with dual nano-SIM slots
- 5G FR1 bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n30, n38, n40, n41, n48, n66, n70, n71, n77, n78, n79
- LTE bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B30, B34, B38, B39, B40, B41, B42, B43, B48, B66, B70, B71, B106
- Management: 1 x RJ-45 console, 1 x USB Type C 3.0 OOB management
- Forwarding throughput (512B): 5.6 Gbps
- IPsec throughput (512B): 1.5 Gbps
- SD-WAN throughput (512B): 900 Mbps
- Threat protection throughput (EMIX): 1 Gbps
- IPv4 routes: 500K
- IPv6 routes: 500K
- NAT sessions: 100K
- VRFs: 4K
- IPsec tunnels: 250
- Power supply: 66W external (12 VDC input), 27W typical
- Dimensions (H x D x W): 1.57 in x 7.8 in x 10.8 in
- Weight: 5.1 lb
- Operating temperature: 0 to 40 C at sea level
- Operating humidity: 5% to 85% relative humidity (noncondensing)
- MTBF: over 100,000 hours

FAQs

Q: What licence does the router ship with?
A: It ships preloaded with Cisco Routing OS Essentials as a perpetual licence. An optional OS Advantage perpetual upgrade is available. Subscriptions are optional: Cisco Routing Advantage for traditional routing, or Cisco WAN Essentials or Advantage for Catalyst SD-WAN.

Q: What power supply does it use and does it provide PoE?
A: It uses the PWR-CC1-66WAC 66W external AC adapter with a 12 VDC input. Typical power draw is 27W. The router has no PoE output.

Q: Does it work with Cisco cellular PIM modules?
A: No. This model has an embedded 5G RedCap module, so the P-5GS6-R16SA-GL and P-LTEA7 series PIM modules are not supported on it.

Q: Which mounting kits are available?
A: Rack mounting uses kit C8151-C-G2-RM-19. DIN rail mounting uses ACS-1111-DRM= and under desk mounting uses ACS-1100-UDM=. The router can also sit on a desktop.

Q: What software is required for routing and SD-WAN?
A: Both autonomous routing and Catalyst SD-WAN need IOS XE 26.1.1 or later. SD-WAN also needs Catalyst SD-WAN Manager 26.1.1 or later.

Q: What DSL types does the embedded modem support?
A: The embedded modem supports VDSL2 (profiles 8a to 35b) and ADSL, ADSL2 and ADSL2+ over ISDN lines using Annex B/J.
