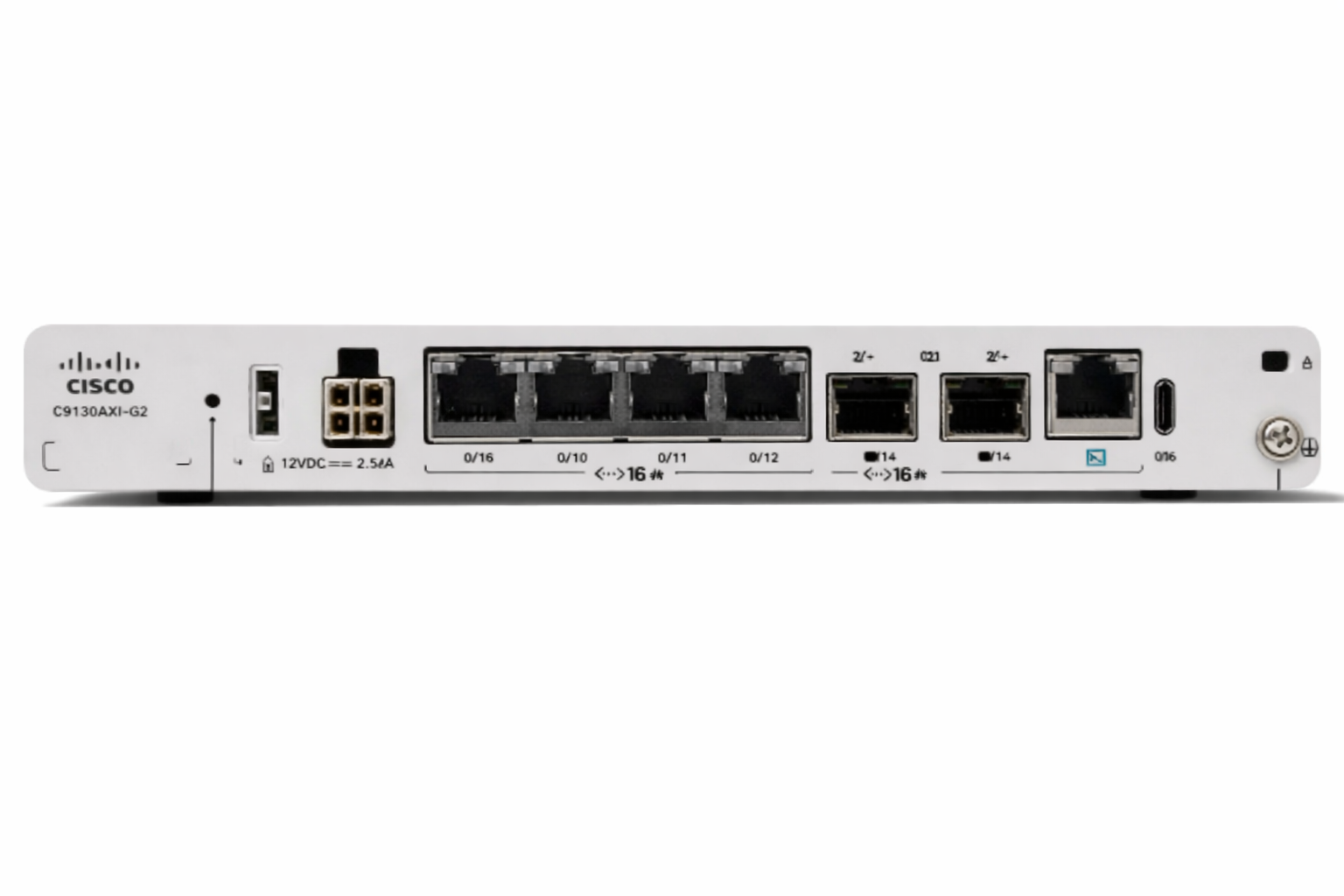

• Cisco C9130AXI-G2 switch back with Ethernet ports, power input, 4GB RAM
1 1

Cisco

Cisco C8130-VAP-G2 | Secure WAN 8100 G2 Router, VDSL2/ADSL Annex A, 4GB

C8130-VAP-G2

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco C8130-VAP-G2 is a fanless small-branch secure router from the Secure WAN 8100 Series G2. It is built for point-of-sale sites, small branches, remote workers and IoT connectivity, and suits locations that use POTS-based DSL (Annex A) or XGSPON fibre service. It runs autonomous routing or SD-WAN, and is PQC ready.

This variant has an embedded VDSL2/ADSL modem for POTS lines (Annex A), 4GB DRAM, 16GB flash and no cellular. WAN connectivity comes from one RJ-11 DSL port, one XGSPON/10G BASE-T port and one 1GE RJ-45/SFP combo port. Two 1GE LAN ports and two 1GE flex ports handle local connections. Forwarding throughput is 1.9 Gbps and IPsec throughput is 1.5 Gbps (512B), with up to 250 IPsec tunnels. It is powered by a 66W external supply and draws 23W typically. There is no PoE on this model.

Autonomous routing needs IOS XE 26.1.1 or later. SD-WAN mode requires IOS XE 26.2.1 and Catalyst SD-WAN Manager 26.2.1. The SFP combo port accepts SFP optics, and the compact chassis supports rackmount, desktop, under-desk and DIN-rail or wall mounting.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hardware-accelerated security and networking on Cisco's secure networking processor
- Fanless design suited to small branch deployments
- Integrated next-generation firewall, Zero Trust capabilities and SASE-ready architecture
- Post-quantum cryptography (PQC) readiness
- Embedded VDSL2/ADSL modem plus XGSPON/10G BASE-T for multi-WAN options
- Autonomous routing or SD-WAN, managed on-premises, via infrastructure-as-code or from the cloud
- Multiple mounting options: rackmount, desktop, under desk, DIN-rail/wall

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- WAN ports: 1x 1GE RJ-45/SFP combo, 1x RJ-11 DSL, 1x XGSPON/10G BASE-T
- LAN ports: 2x 1GE RJ-45
- Flex ports: 2x 1GE RJ-45
- DSL: Embedded VDSL2/ADSL over POTS (Annex A)
- DSL standards: ITU G.993.2 (VDSL2) profiles 8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b; ADSL Annex A and Annex B/J; G.992.1, G.992.3, G.992.5
- Cellular: None
- Management: 1x RJ-45 console, 1x USB Type-C 3.0 OOB management
- Memory: 4GB DRAM, 16GB flash
- Forwarding throughput (512B): 1.9 Gbps
- IPsec throughput (512B): 1.5 Gbps
- SD-WAN throughput (512B): 900 Mbps (IPsec + QoS + DPI + Flexible NetFlow)
- IPv4 routes: 280K
- IPv6 routes: 260K
- NAT sessions: 100K
- VRFs: 1K
- IPsec tunnels: 250
- Power supply: 66W external
- Typical power: 23W
- Dimensions (H x D x W): 1.09 in x 7.8 in x 10.8 in
- Weight: 3.5 lb
- MTBF: over 100,000 hours
- Operating temperature: 0 to 40 C at sea level, derate 1 C per 1000 ft above 40 C
- Operating humidity: 5% to 85% non-condensing
- Mounting: Rackmount, desktop, under desk, DIN-rail/wall

FAQs

Q: Which DSL line type does the C8130-VAP-G2 support?
A: It has an embedded VDSL2/ADSL modem for POTS lines (Annex A), supporting VDSL2 profiles up to 35b and ADSL, ADSL2 and ADSL2+.

Q: Does this router support cellular?
A: No. This SKU has no cellular support. Its WAN options are the embedded DSL port, the XGSPON/10G BASE-T port and the 1GE RJ-45/SFP combo port.

Q: Does it provide PoE?
A: No. It has no PoE or PoE+. It is powered by a 66W external power supply and draws about 23W typically.

Q: What software version is needed for SD-WAN?
A: SD-WAN mode requires IOS XE 26.2.1 and Catalyst SD-WAN Manager 26.2.1. Autonomous routing needs IOS XE 26.1.1 or later.

Q: Can the combo WAN port take optics?
A: Yes. The 1GE RJ-45/SFP combo port accepts SFP optics as well as standard copper.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
