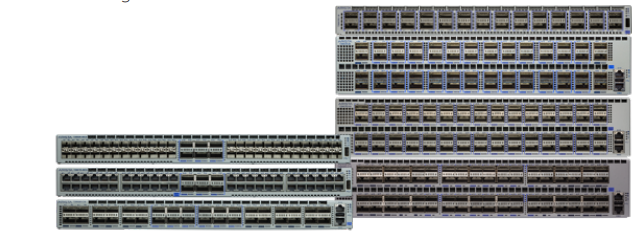

Arista DCS-7280TRA-48C6-R | 7280R 48-Port 10G-T Switch, 6x 100G, Rear-to-Front

SKU:DCS-7280TRA-48C6-R

Stock Status: Enquire

Request Quote

Sale Sold out

Shipping calculated at checkout.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7280RA is a fixed-configuration 1RU data centre switch router from the 7280R Series. It is built for leaf, top-of-rack and spine roles, as well as Layer 2 and Layer 3 cloud designs, VXLAN overlay networks, internet peering and inter-DC interconnect where deep buffers and large routing tables matter.

This model provides 48 wire-speed 100M/1G/10GBASE-T RJ45 ports plus six 100GbE QSFP100 uplinks, each configurable as 100, 50, 40, 25 or 10GbE. Switching throughput is 2.16 Tbps with a 720 Mpps forwarding rate, latency from 3.8 us and a 4 GB packet buffer built on a virtual output queue architecture. AlgoMatch supports flexible, scalable ACL and forwarding lookups, and the tables hold 768K MAC addresses and 768K IPv4 and IPv6 host routes. This SKU is the rear-to-front airflow version with two hot-swap 500W AC power supplies in a 1+1 arrangement and four N+1 fans.

The QSFP100 ports work with 100GBASE-SR4, LR4, CWDM4, PSM4, DR, FR, AOC and CR4 optics and cables, 40G QSFP+ modules, and 4x25G or 4x10G breakout. It runs Arista EOS with a minimum release of 4.19.0 and is managed with CloudVision.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Arista EOS with a single binary image, Linux kernel and state-sharing architecture
- Virtual output queue architecture with deep packet buffering to avoid head-of-line blocking
- AlgoMatch for flexible, scalable ACL and forwarding lookups
- Up to 128-way ECMP and MLAG for leaf-spine designs
- VXLAN gateway with bridging and routing
- CloudVision, Zero Touch Provisioning, LANZ, DANZ and VM Tracer support
- PTP, sFlow and multi-port mirroring for network visibility
- Hot-swap power supplies and fans with tool-less rails

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 100M/1G/10GBASE-T RJ45, 6 x 100GbE QSFP100
- Uplink modes: each QSFP100 port supports 100/50/40/25/10GbE
- Maximum port counts: 6 x 100GbE, 12 x 50GbE, 6 x 40GbE, 24 x 25GbE, 72 x 10GbE
- Switching throughput: 2.16 Tbps full duplex
- Forwarding rate: 720 Mpps
- Latency: from 3.8 us
- Packet buffer: 4 GB
- CPU: Quad-Core x86
- System memory: 8 GB (32 GB optional)
- Flash storage: 4 GB, SSD option available
- Management: 1 x 100/1000 port, 1 x RS-232 serial (RJ-45), 2 x USB
- Power supplies: 2 x 500W AC (PWR-500AC), 1+1 redundant, hot-swap
- Power draw: 290 W typical, 405 W maximum
- Cooling: 4 x FAN-7000H-F/R fans (N+1), rear-to-front airflow
- Form factor: 1RU, 19 x 1.75 x 16 in (48.3 x 4.4 x 40.6 cm)
- Weight: 10.1 kg (22.2 lbs)
- 10GBASE-T reach: up to 30m over Cat6a
- MAC addresses: 768K
- IPv4 and IPv6 host routes: 768K
- Operating temperature: 0 to 40 C (32 to 104 F)
- Operating humidity: 5 to 95%
- Minimum EOS: 4.19.0

FAQs

Q: Which power supply does this model use?
A: It uses two hot-swap 500W AC power supplies (PWR-500AC) in a 1+1 redundant arrangement, with 100-240V AC input on C14 inlets.

Q: Which direction does the airflow run?
A: This SKU is the rear-to-front airflow version, using FAN-7000H-F/R fans in an N+1 arrangement.

Q: What optics work in the 100G ports?
A: The QSFP100 ports support 100GBASE-SR4, LR4, CWDM4, PSM4, DR, FR, AOC and CR4 optics and cables, plus 40G QSFP+ modules and 4x25G or 4x10G breakout.

Q: How far can the 10GBASE-T ports run?
A: The RJ45 ports run 100M, 1G or 10G, with 10G reaching up to 30m over Cat6a cabling.

Q: Which EOS release and licence does it need?
A: It runs Arista EOS 4.19.0 or later and falls under EOS Feature License Group 2. Specific feature licence bundles are ordered separately.

Q: Does this switch support PoE?
A: No. The 48 RJ45 ports are data only, so powered devices need a separate power source.
