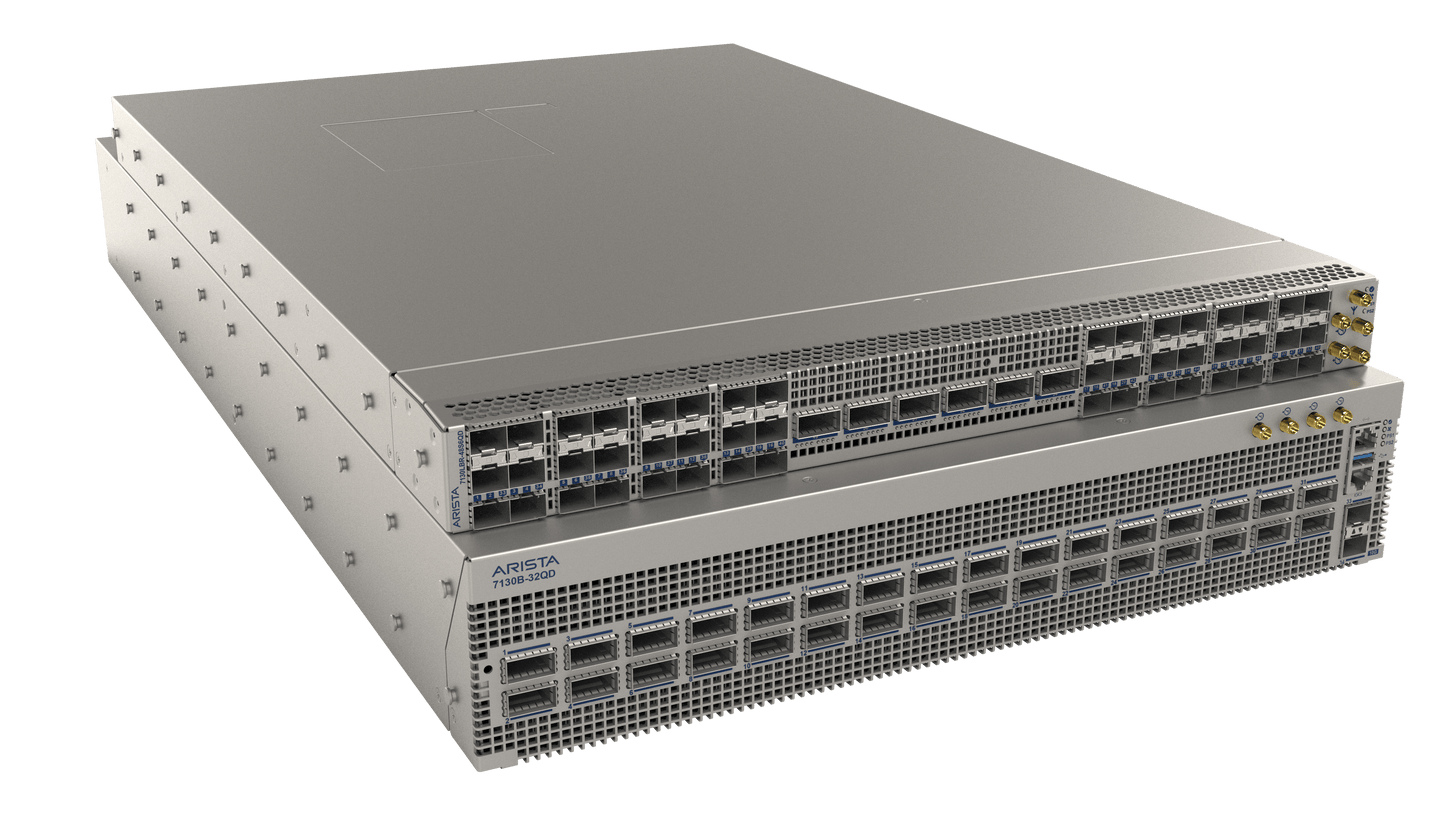

Arista DCS-7130-16G3# | 7130 Connect 16-Port 10G SFP+ Layer 1 Switch, 4ns

SKU:DCS-7130-16G3#

Stock Status: Enquire

Request Quote

Sale Sold out

Shipping calculated at checkout.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7130 Connect Series G3 16-port is a 1RU Layer 1+ crosspoint switch built for ultra-low-latency environments. It forwards data bit-for-bit between ports with a deterministic 4 ns latency and full signal regeneration, so it can serve as a remotely configurable patch panel, a media converter, or a tap and mirroring device for link monitoring and bypass of failed links.

The switch provides 16 SFP+ ports that run rate-transparent at 100M, 1GbE or 10GbE, plus an RJ45 port and two 100/1000 management ports. It is non-blocking with no buffering or queuing, and jitter is below 100 ps. Under the hood is a quad-core x86 CPU with 8 GB RAM and a 64GB SSD, running a Linux-based platform with an industry-standard CLI and JSON RPC API. Power is delivered by two hot-swap 460 W supplies in a 1+1 arrangement, with two hot-swap fan trays and a maximum draw of 190 W. There is no PoE and no separate licence listed for this SKU.

The SFP+ ports accept a wide range of media, including 1000BASE-T, 1000BASE-SX and LX, and 10GBASE-CR, SR, LR, ER and DWDM optics, making it protocol agnostic for uses such as Fibre Channel and CPRI.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Nanosecond-level, deterministic Layer 1 forwarding
- Signal regeneration with full clock and data recovery on input and output
- Media conversion between different media types running at the same rate
- Port mirroring with the same latency for 1:N mirroring
- Dynamic patching and link management as a crosspoint switch
- Layer 1+ packet statistics on every port
- Eye diagram, tcpdump and full SFP+ diagnostics for troubleshooting
- Linux-based platform with industry-standard CLI and JSON RPC API

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 16 x SFP+, 1 x RJ45
- Throughput: 100M to 11.3Gbps per port
- Rate transparency: 100M / 1GbE / 10GbE
- Latency: 4 ns deterministic
- Jitter: less than 100 ps
- CPU: Quad-core x86
- System memory: 8 GB RAM
- On-board SSD: 64GB
- USB ports: 1
- 100/1000 management ports: 2
- Serial console: 1 x RS-232 (RJ-45)
- Power supplies: 2 hot-swap, 1+1 redundant (PWR-460, AC or DC)
- Fan trays: 2 hot-swap, 1+1 redundant (FAN-7130-1U)
- Airflow: reversible airflow option
- Rack units: 1RU
- Dimensions (WxHxD): 44.8 x 4.3 x 37.9 cm
- Weight: 9 kg
- Maximum power draw: 190W
- Operating temperature: 0 to 40 C
- Relative humidity: 10% to 85% non-condensing
- Maximum altitude: 2,000m

FAQs

Q: Does this switch need a licence or subscription?
A: No separate licence or subscription is listed for this SKU.

Q: What power does it use and does it support PoE?
A: It uses two hot-swap 460 W power supplies in a 1+1 redundant arrangement, available as AC (100-240V) or DC (40-72V) PWR-460 units. Maximum draw is 190 W. It does not provide PoE.

Q: What optics and speeds do the SFP+ ports support?
A: The ports are rate-transparent from 100M to 11.3Gbps and support 1000BASE-T, 1000BASE-SX and LX, and 10GBASE-CR, SR, SRL, LR, LRL, ER and DWDM, plus 40GBASE-CR4 QSFP+/SFP+.

Q: How does it differ from the other 7130 models?
A: This model has 16 SFP+ ports in 1RU with 4 ns latency. The 7130-48G3 has 48 ports and the 7130-96 has 96 ports in 2RU with 6 ns latency.

Q: Are the fans and power supplies replaceable?
A: Yes. Both the two power supplies and the two fan trays are hot-swappable, with spares including FAN-7130-1U and PWR-460AC or PWR-460DC.
