NVIDIA

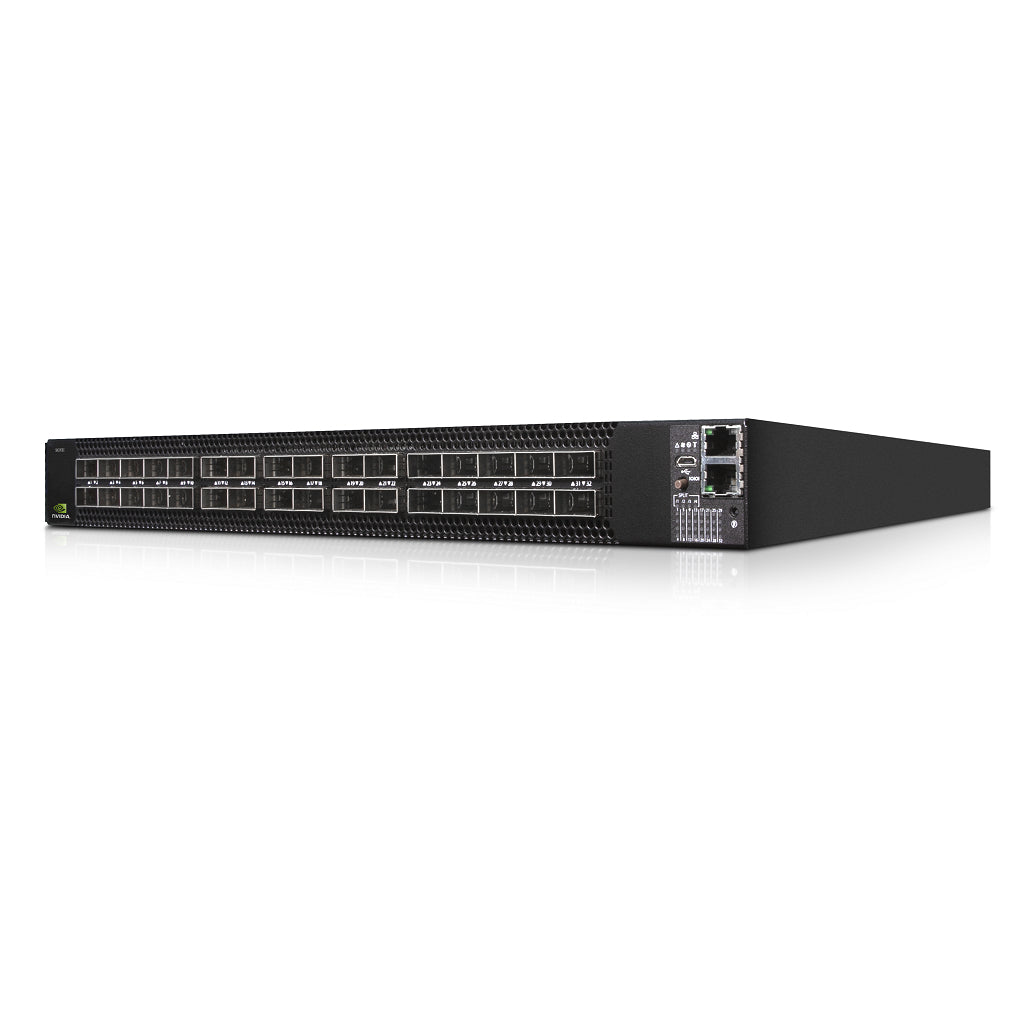

NVIDIA MSN3700-VS2RC | Spectrum-2 SN3700 32-Port 200GbE Switch, Cumulus Linux

SKU:MSN3700-VS2RC

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Spectrum-2 SN3700 is a 1U fixed-configuration open Ethernet switch built on the NVIDIA Spectrum-2 ASIC. It is positioned as a spine, super-spine or leaf switch for cloud, hyperscale and enterprise data centres, HPC clusters and Ethernet storage fabrics. This SKU runs Cumulus Linux.

It provides 32 QSFP56 ports, each supporting 10, 25, 40, 50, 100 and 200GbE, for 12.8 Tb/s of switching throughput and an 8.33 Bpps packet forwarding rate. Ports can be broken out to 2 x 100GbE or 4 x 50GbE, giving up to 64 x 100GbE or 128 x 50/25/10GbE per system. Latency is 425 ns with a 42 MB fully shared packet buffer, and the control plane uses an Intel x86 quad-core CPU with a 32GB SSD.

This variant has two AC power supplies and Connector-to-Power (C2P) airflow, with a rail kit for 19-inch rack mounting. Power consumption is 250W. It supports Layer 2, Layer 3 and RoCE, VXLAN routing and streaming telemetry for modern leaf-spine designs.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 2, Layer 3 and RoCE support
- Inband Network Telemetry (INT)-ready hardware and streaming telemetry
- 512K on-chip flow counters
- 512K shared forwarding entries shared between ACL, LPM, host routing, MAC, ECMP and tunnels
- High-performance VXLAN routing and IPv6 segment routing
- Cloud-scale NAT with 100K+ sessions
- Programmable packet pipeline with deep packet inspection to 512B depth
- Secure boot, SyncE and PPS timing support
- Open networking and disaggregation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Switch ASIC: NVIDIA Spectrum-2
- Ports: 32 x QSFP56
- Supported speeds: 10/25/40/50/100/200GbE per port
- Breakout: each QSFP56 port splits to 2 x 100GbE or 4 x 50GbE
- Throughput: 12.8 Tb/s
- Packet rate: 8.33 Bpps
- Latency: 425 ns
- Packet buffer: 42 MB fully shared
- CPU: Intel x86 2.20GHz Quad Core
- PCIe: 4x Gen 3.0
- Storage: 32GB SSD
- Operating system: Cumulus Linux
- Form factor: 1U, 19-inch rack mount
- Dimensions (H x W x D): 44 x 428 x 559 mm
- Weight: 14 kg
- Power supplies: 2 x AC
- Input voltage: 100-127VAC 50/60Hz 10A; 200-240VAC 50/60Hz 6A
- Power consumption: 250 W
- Airflow: Connector-to-Power (C2P)
- Operating temperature: 0 to 40 C
- Operating humidity: 10% to 85% non-condensing
- RoHS: compliant

FAQs

Q: What operating system does this switch run?
A: This SKU, MSN3700-VS2RC, ships with Cumulus Linux. Sibling SKUs run other software images, so check the suffix when ordering.

Q: What power does it need?
A: It has two AC power supplies and accepts 100-127VAC at 10A or 200-240VAC at 6A. Power consumption is 250W.

Q: Can the ports run at lower speeds?
A: Yes. Each QSFP56 port supports 10, 25, 40, 50, 100 and 200GbE, and can be broken out to 2 x 100GbE or 4 x 50GbE.

Q: Which airflow direction does this model use?
A: This model uses Connector-to-Power (C2P) airflow. Plan rack airflow so cool air enters at the connector side.

Q: What is it designed for?
A: It is built as a spine, super-spine or leaf switch for cloud, hyperscale and enterprise data centres, HPC and Ethernet storage fabrics.
