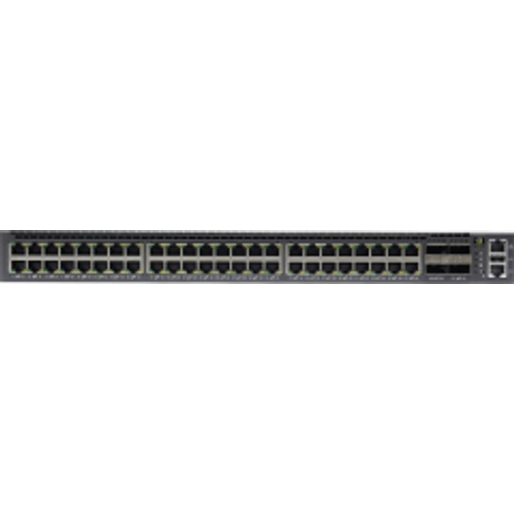

• NVIDIA MSN2201-CB2FC 48-port 1G RJ45 switch with 4x 100G QSFP28 uplinks
1 1

NVIDIA

NVIDIA MSN2201-CB2FC | Spectrum SN2201 48-Port Gigabit Switch, 4x 100G QSFP28

MSN2201-CB2FC

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The NVIDIA MSN2201-CB2FC is a high-performance 1U open Ethernet switch designed for out-of-band management and top-of-rack deployments in enterprise and data center environments. Featuring 48 Gigabit Ethernet RJ45 ports and 4 splittable 100GbE QSFP28 uplinks, it delivers up to 448Gbps switching capacity with consistent low latency. Running Cumulus Linux on an x86 CPU, the switch supports advanced Layer 2 and Layer 3 features, automation, and telemetry for modern software-defined networking.

Features

NVIDIA Spectrum ASIC for wire-speed, non-blocking performance across all ports
- Advanced Layer 2 features including VLANs, link aggregation (LACP), and Spanning Tree Protocol (STP)
- Layer 3 routing with support for OSPF, BGP, and static routing
- VXLAN, NVGRE, and GRE tunneling for overlay network support
- Comprehensive network telemetry and ASIC-level visibility for monitoring and troubleshooting
- Fully shared 16MB packet buffer for efficient traffic management and congestion handling
- Open networking support with Cumulus Linux and ONIE compatibility
- Automation-friendly with REST API, Ansible, and Puppet integration
- Hot-swappable redundant power supplies and fans for high availability
- Precision timing support for synchronization protocols
- Cut-through and store-and-forward switching modes
- Quality of Service (QoS) with multiple priority queues and traffic shaping
- Energy-efficient design with low power consumption (approx. 98W typical)
- Compact short-depth 1U form factor suitable for space-constrained racks

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

48x 10/100/1000BASE-T RJ45 ports
- 4x 100GbE QSFP28 ports (splittable to 40GbE)
- Switching capacity: 448 Gbps aggregate throughput
- Layer 2 and Layer 3 switching support
- 16MB fully shared packet buffer
- Operating system: Cumulus Linux (ONIE-compatible)
- x86 CPU for advanced network processing
- Management: CLI, SNMP, REST API
- Dual redundant AC power supplies (hot-swappable)
- Airflow: Port-to-Connector (P2C), back-to-front
- Power consumption: ~98W typical
- Form factor: 1U rack-mountable, short depth
- Dimensions: 43.9mm (H) x 428mm (W) x 432mm (D)
- Includes 4-post rail kit

FAQs

Q: What are the primary use cases for the MSN2201-CB2FC?
A: This switch is ideal for out-of-band management networks or as a top-of-rack switch in data centers requiring 1GbE host connectivity with high-speed 100GbE uplinks to aggregation layers. It supports both traditional and software-defined networking deployments.

Q: Can the QSFP28 ports be split into lower-speed interfaces?
A: Yes, each of the four QSFP28 ports can be configured as 100GbE or split into 40GbE interfaces, providing flexibility for various uplink and aggregation scenarios.

Q: What operating systems are compatible with this switch?
A: The MSN2201-CB2FC ships with Cumulus Linux and is ONIE-compatible, supporting open network operating systems including SONiC for automation-driven, DevOps-friendly network management.

Q: Does this model support redundant power supplies?
A: Yes, the MSN2201-CB2FC includes dual redundant AC power supplies that are hot-swappable, ensuring high availability and minimizing downtime during power supply maintenance or failure.

Q: What is the airflow direction for this model?
A: The MSN2201-CB2FC features Port-to-Connector (P2C) airflow, also known as back-to-front airflow, where cool air enters from the port side and exhausts through the power supply side of the switch.
