NVIDIA MQM8790-HS2R | Quantum QM8700 40-Port HDR 200G Switch, 2x PSU, C2P
SKU:MQM8790-HS2R
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

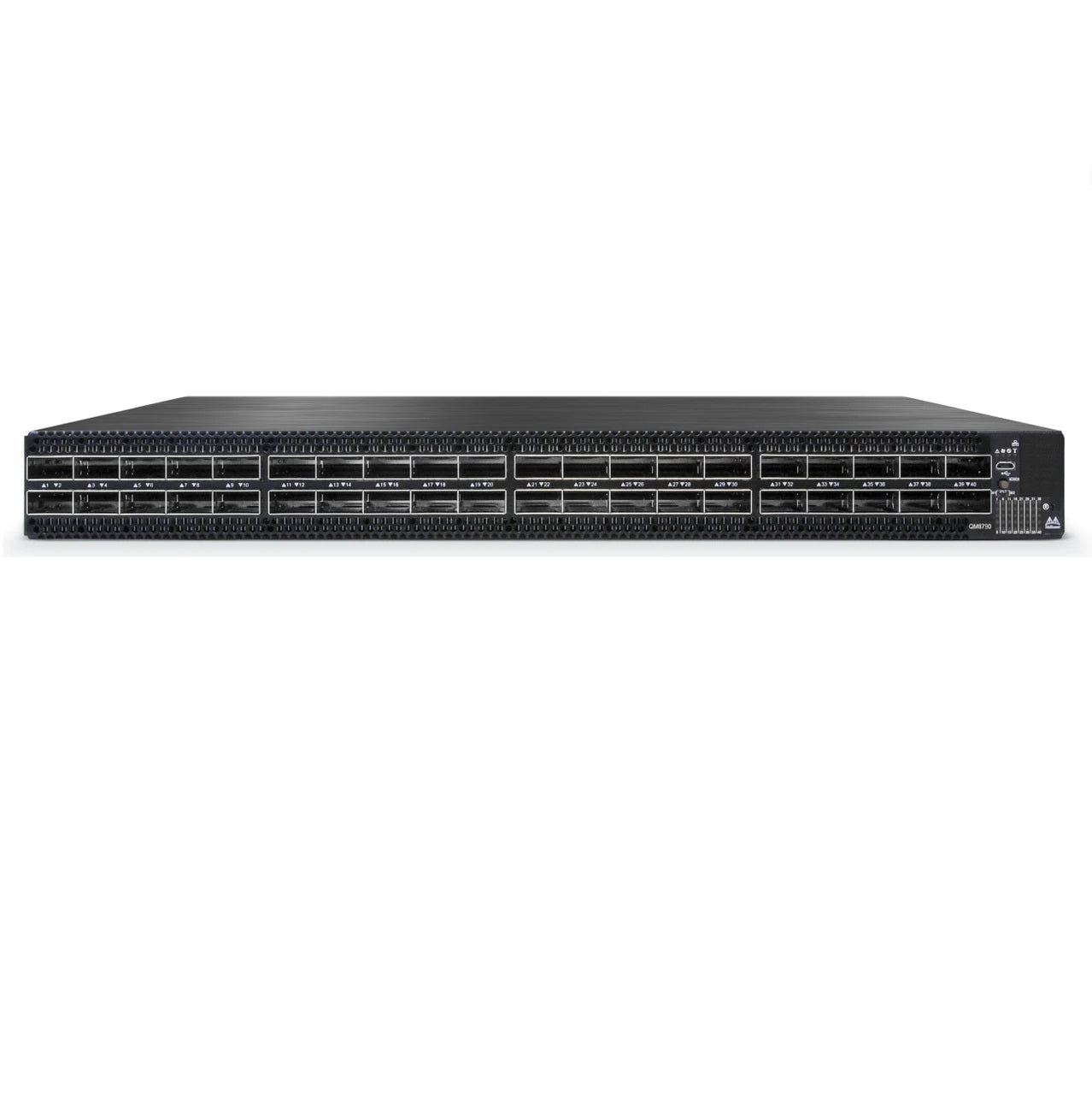

The Quantum QM8700 series MQM8790-HS2R is a 1U, 40-port unmanaged HDR 200Gb/s InfiniBand switch built on the Mellanox Quantum switch device. It suits top-of-rack leaf connectivity and the building of small to very large HPC and enterprise data-centre InfiniBand clusters, including double-dense racks of more than 40 servers using HDR100.
Each of the 40 QSFP56 ports runs at HDR 200Gb/s, or up to 80 HDR100 100Gb/s ports using splitter cables, with 16Tb/s of aggregate non-blocking throughput and sub-130ns port-to-port latency. This SKU has two hot-swappable 1+1 redundant AC power supplies and C2P airflow, meaning connector side inlet, in a standard depth chassis. It is unmanaged and is managed externally, for example by a subnet manager on the fabric.
It works with QSFP56 passive copper cables, active fibre cables and optical modules. HDR100 operation is supported with ConnectX-6 adapters through splitter cables. Spare parts include the MTEF-PSR-AC-C power supply and MTEF-FANR-C fan module, both C2P.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Mellanox SHARP in-network computing for collective offload
- Adaptive routing and congestion control to avoid fabric hot spots
- Enhanced VL mapping (VL2VL) for topologies such as SlimFly, Dragonfly+ and 6DT
- 1+1 redundant hot-swappable power supplies and N+1 redundant hot-swappable fans
- Backward compatible with previous InfiniBand speeds
- HDR100 support with ConnectX-6 adapters, giving up to 80 x 100G ports in 1U
- Low-power design, with power reduced further at partial port utilisation
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 40 x QSFP56 non-blocking
- Port speed: HDR 200Gb/s per port (HDR100 100Gb/s with splitter cables, up to 80 ports)
- Aggregate switch throughput: 16Tb/s
- Switch latency: sub-130ns port-to-port
- Chassis: 19-inch rack-mountable, 1U
- Management ports: I2C (RJ45), system reset button
- IBTA compliance: IBTA 1.21 and 1.3
- Virtual lanes: 9 (8 data + 1 management)
- MTU: 256 to 4Kbyte
- Forwarding database: 4 x 48K entry linear forwarding database
- Power supply: 2 x hot-swappable redundant AC PSUs (1+1), 80 Plus Gold and Energy Star certified
- Power input: 100-127VAC / 200-240VAC, 50-60Hz, single phase AC
- Airflow: C2P (connector side inlet)
- Cooling: hot-swappable N+1 redundant fan units
- Operating temperature: 0 to 40 C
- Non-operating temperature: -40 to 70 C
- Operating humidity: 10% to 85% non-condensing
- Altitude: Up to 3200 m
- Dimensions (H x W x D): 43.6 x 433.2 x 590.6 mm
- Weight: 12.488 kg with 2 PSUs
- Safety: CB, cTUVus, CE, CU
- EMC: CE, FCC, VCCI, ICES, RCM
- Compliance: RoHS, ISO 7779 and ETS 300 753 acoustic
FAQs
Q: Does this switch need a software licence?
A: No software licence is documented for this switch. It is unmanaged and is managed externally, for example through a subnet manager on the fabric.
Q: What power supplies does it use?
A: It has two hot-swappable AC power supplies (MTEF-PSR-AC-C, 1100W AC with C2P airflow) in a 1+1 redundant arrangement. Input is 100-127VAC or 200-240VAC at 50-60Hz.
Q: What does C2P airflow mean?
A: C2P means connector to power, so air is drawn in on the connector side and exhausted at the power supply side. Match this to your rack airflow design. The P2C-airflow version is MQM8790-HS2F.
Q: Can it connect to 100G HDR100 adapters?
A: Yes. Using splitter cables, each port can provide two HDR100 100Gb/s connections, giving up to 80 ports in 1U. HDR100 is supported with ConnectX-6 adapters.
Q: What cables and modules does it work with?
A: It uses QSFP56 connectors, supporting passive copper (DAC) cables, active fibre cables and optical modules.
Q: How do I manage this switch?
A: It is an externally managed switch, so it is configured and monitored through a subnet manager on the InfiniBand fabric rather than a built-in management interface.
