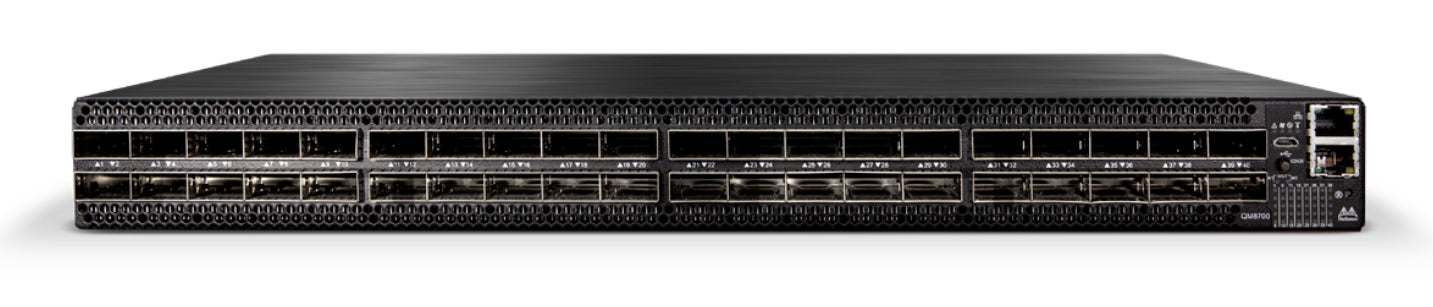

NVIDIA MQM8700-HS2F | Quantum QM8700 40-Port HDR InfiniBand Switch, P2C Airflow
SKU:MQM8700-HS2F
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Mellanox Quantum QM8700 series MQM8700-HS2F is a 1U managed HDR InfiniBand edge switch, suited to top-of-rack leaf use and to building small to very large HPC, AI and machine learning clusters. It is built on the Mellanox Quantum switch device and supports in-network computing through SHARP collective offloads.
It provides 40 QSFP56 HDR 200Gb/s ports, or up to 80 HDR100 100Gb/s ports using splitter cables, with 16Tb/s of non-blocking aggregate throughput and sub-130ns switch latency. This variant has two 1100W AC hot-swap power supplies in a 1+1 arrangement, P2C (connector-side outlet) airflow and a standard depth chassis. An integrated x86 dual-core CPU runs MLNX-OS with an on-board subnet manager for up to 2K nodes, so no separate licence is needed to operate it.
HDR100 operation requires ConnectX-6 adapters, and the switch remains backward compatible with earlier InfiniBand speeds. It accepts QSFP56 passive copper cables, active fibre cables and optical modules.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- In-network computing with Mellanox SHARP collective offloads
- Adaptive routing and congestion control for maximum effective fabric bandwidth
- Enhanced VL mapping supports modern topologies including SlimFly, Dragonfly+ and 6DT
- Backward compatible with previous InfiniBand speeds
- On-board subnet manager for out-of-the-box bring-up of up to 2K nodes
- Full chassis management via CLI, WebUI, SNMP or JSON, with UFM support
- 1+1 redundant hot-swappable PSUs and N+1 redundant hot-swappable fans
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 40 x QSFP56 HDR 200Gb/s InfiniBand
- HDR100 ports: up to 80 x 100Gb/s using splitter cables (requires ConnectX-6 adapters)
- Switching throughput: 16Tb/s aggregate, non-blocking
- Switch latency: sub-130ns
- Compliance: IBTA 1.21 and 1.3
- Virtual lanes: 9 (8 data + 1 management)
- MTU: 256 bytes to 4KB
- Forwarding database: 4 x 48K entry linear forwarding database
- CPU: x86 ComEx Broadwell, dual core
- Management ports: 100/1000 RJ45 Ethernet, RS232 console, USB
- Management: CLI, WebUI, SNMP v1/v2/v3, JSON, IPv6, DHCP
- Fabric management: on-board subnet manager (up to 2K nodes), UFM agent
- Connectors and cabling: QSFP56 passive copper, active fibre, optical modules
- Form factor: 19-inch rack-mountable, 1U, standard depth
- Power supplies: 2 x 1100W AC, 1+1 redundant, hot-swappable
- Power supply certification: 80 Gold+ and Energy Star
- Input voltage: 100-127VAC / 200-240VAC, 50-60Hz, single phase, 4.5A / 2.9A
- Cooling: hot-swappable N+1 redundant fan unit, P2C airflow
- Operating temperature: 0 to 40 C
- Non-operating temperature: -40 to 70 C
- Operating humidity: 10% to 85% non-condensing
- Altitude: up to 3200m
- Safety: CB, cTUVus, CE, CU
- EMC: CE, FCC, VCCI, ICES, RCM
- Environmental: RoHS compliant
FAQs
Q: Does this switch need a separate licence to operate?
A: No. The on-board MLNX-OS software and subnet manager for up to 2K nodes run on the integrated x86 CPU. This SKU is the base managed configuration. UFM is a separate fabric management software product.
Q: What power supplies does it use?
A: It uses two 1100W AC hot-swap power supplies in a 1+1 redundant arrangement. Input is 100-127VAC or 200-240VAC at 50-60Hz, single phase.
Q: What does P2C airflow mean for this model?
A: P2C means the airflow outlet is on the connector side. The matching spare power supply is MTEF-PSF-AC-C and the matching fan unit is MTEF-FANF-C. The sibling MQM8700-HS2R uses C2P airflow.
Q: What does it work with for HDR100 and cabling?
A: HDR100 operation using splitter cables requires ConnectX-6 adapters. The QSFP56 ports accept passive copper cables, active fibre cables and optical modules, and the switch is backward compatible with earlier InfiniBand speeds.
Q: Can it run its own subnet manager?
A: Yes. The on-board subnet manager supports up to 2K nodes, so small and mid-sized fabrics can be brought up without an external manager.
