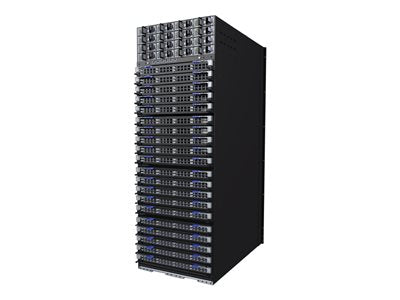

NVIDIA MCS8500 | Quantum CS8500 800-Port HDR 200G InfiniBand Switch, N+1
SKU:MCS8500
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The NVIDIA Quantum CS8500 is a liquid-cooled 29U modular InfiniBand director switch for medium to large HPC, AI and machine learning, and enterprise data centre fabrics that need high-density, low-latency spine switching at lower power per port.
This chassis provides up to 800 HDR 200Gb/s ports, or 1,600 HDR100 ports using port-split mode, with 320Tb/s of aggregate switch throughput. It uses 20 leaf and 20 spine slots, with 40 QSFP56 ports per leaf blade. This SKU is the chassis with nine power supply units for N+1 redundancy, expandable to 16 units for N+N. The maximum power draw is 23,374 W for a CDU-based system and 25,474 W for an AHX-based system, on a 200-240 VAC input. Management uses MLNX-OS with an on-board subnet manager, and SHARP in-network computing is supported.
The cooling solution is selected separately: either the AHX-22KW-350MM liquid-to-air heat exchanger or the 900-00796 liquid-to-liquid CDU. Related accessories include MTDF-LIQ-B coolant and the MTDF-MTN-A maintenance kit. The switch uses QSFP56 passive copper cables, active fibre cables and optical modules, and remains interoperable with earlier InfiniBand generations.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Port-split technology doubles radix to 1,600 HDR100 ports
- NVIDIA SHARP in-network computing for MPI and collective offload
- Adaptive routing and congestion control
- Hot-swappable power supplies with N+1 or N+N redundancy
- Closed-loop liquid cooling for low noise and lower infrastructure operating cost
- MLNX-OS chassis management of power supplies, fans and ports
- Backwards compatible with previous-generation InfiniBand
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 800 x HDR 200Gb/s InfiniBand (QSFP56)
- Port-split mode: 1,600 x HDR100 100Gb/s ports
- Aggregate switch throughput: 320Tb/s
- Form factor: 29U, 19-inch rack mount
- Ports per leaf blade: 40 x QSFP56 HDR 200Gb/s
- Leaf slots: 20
- Spine slots: 20
- Power supply units: 9 (N+1), expandable to 16 (N+N)
- SerDes speeds: 10, 56, 100, 200 Gb/s per port
- Compliance: IBTA 1.21 and 1.3
- Virtual lanes: 9 (8 data + 1 management)
- MTU: 256 bytes to 4KB
- Fabric management: on-board subnet manager (up to 2k nodes), UFM agent
- Management interfaces: SSH, Telnet, Web, SNMP v1/v2/v3, XML, CLI; 100/1000Mb/s RJ45 Ethernet, RS232 console, USB
- Management modules: two available (one required for operation)
- CPU: x86 ComEx Broadwell
- Dimensions (H x W x D): 1289.05 x 482.6 x 770.0 mm; shelf adds 44.45 mm to height
- Weight: 240 kg empty chassis; 405 kg shipped configuration
- Input voltage: 200-240 VAC, 50-60 Hz
- Power consumption (CDU-based): typical 12,300 W (passive cables), maximum 23,374 W
- Power consumption (AHX-based): typical 13,300 W (passive cables), maximum 25,474 W
- Maximum heat output: 46,170 BTU/hr
- Operating temperature: 0 to 40 C
- Operating humidity: 10-85% non-condensing
FAQs
Q: Does the MCS8500 need a separate licence?
A: The chassis runs NVIDIA MLNX-OS chassis management software. No separate licence requirement applies to the chassis itself.
Q: What cooling does this chassis need?
A: It is liquid cooled and the cooling solution is chosen separately. Options are the AHX-22KW-350MM liquid-to-air heat exchanger or the 900-00796 liquid-to-liquid CDU.
Q: What power supply configuration does this SKU use?
A: This SKU is the chassis with nine 3kW AC power supply units (MTDF-PS-B) for N+1 redundancy. It can be expanded to 16 units for N+N redundancy, on a 200-240 VAC input.
Q: What cables and optics does it work with?
A: Each port is QSFP56 and accepts passive copper cables, active fibre cables and optical modules. It interoperates with earlier InfiniBand generations.
Q: Can it provide more than 800 ports?
A: Yes. Port-split mode divides each HDR 200Gb/s port into two HDR100 100Gb/s ports, giving up to 1,600 HDR100 ports.
