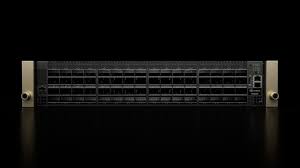

• NVIDIA 920-9N42F-00RI-KC0 64x 800G OSFP switch with Cisco 3850 accents
1 1

NVIDIA

NVIDIA 920-9N42F-00RI-KC0 | Spectrum-4 64-Port 800G Switch, 48VDC, 2U Data Centre

920-9N42F-00RI-KC0

Stock Status: Enquire

$145,475.00 inc. GST
$132,250.00 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The NVIDIA Spectrum-4 SN5600D is a high-performance 2U data centre switch delivering 51.2 Tb/s aggregate throughput across 64 OSFP 800GbE ports plus 1 SFP28 management port. Designed for AI/ML training fabrics, Spectrum-X deployments, and hyperscale cloud networks, it features a Spectrum-4 ASIC, x86 CPU, secure boot, and Cumulus Linux authentication. This model is powered by 48VDC busbar with connector-to-power airflow and includes MGX mounting hardware for advanced data centre installations.

Features

NVIDIA Spectrum-4 ASIC with 51.2 Tb/s total switching capacity
- 64 OSFP ports supporting 800GbE per port with flexible breakout to lower speeds
- Sub-microsecond consistent cut-through latency for latency-sensitive workloads
- Accelerated RoCE (RDMA over Converged Ethernet) with AI cloud extensions
- Advanced VXLAN routing with single-pass hardware acceleration for network virtualisation
- 512,000 shared forwarding entries across ACL, LPM routes, host routes, MAC, ECMP, and tunnel applications
- Secure boot capable with Intel x86 Xeon hexa-core CPU
- Cumulus Linux authentication for open networking and automation
- Connector-to-power airflow optimised for front-to-back cooling
- 48VDC busbar power input for telecom and carrier-grade deployments
- MGX mounting system for modular data centre rack installations
- Pre-validated with NVIDIA BlueField DPUs and ConnectX SmartNICs for end-to-end solution compatibility
- Layer 2 and Layer 3 switching with advanced multicast, QoS, and traffic engineering capabilities

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Ports: 64x OSFP 800GbE (ports 1-64 support 10/25/40/50/100/200/400/800GbE), 1x SFP28 25GbE management port
- Switching Capacity: 51.2 Tb/s aggregate throughput
- ASIC: NVIDIA Spectrum-4
- CPU: Intel x86 Xeon Hexa-core Coffee Lake E-2276ME with secure boot
- Memory: 32GB DDR4 RAM, 160GB SSD storage
- Power: 48VDC busbar input (range 40-60VDC), typical power consumption 940W with passive cables
- Operating System: Cumulus Linux authentication
- Airflow: Connector-to-power (C2P)
- Form Factor: 2U rackmount, standard depth
- Dimensions: 3.39" H x 17.2" W x 28.3" D (86.2mm x 438mm x 720mm)
- Operating Temperature: 0° to 35°C
- Certifications: CB, cTUVus, CE, CU, S-Mark, FCC, VCCI, ICES, RCM, BSMI, KCC, CCC, RoHS compliant
- Mounting: MGX mount with mounting rail kit included

FAQs

Q: What topologies does the SN5600D support?
A: The SN5600D is designed for leaf, spine, and super-spine topologies in AI/ML training clusters and hyperscale data centres. It supports both top-of-rack and end-of-row deployment models, making it ideal for NVIDIA Spectrum-X accelerated Ethernet fabrics and standard leaf/spine architectures.

Q: What port speeds and breakout options are supported?
A: Each of the 64 OSFP ports supports flexible speeds from 10GbE to 800GbE, including 10/25/40/50/100/200/400/800GbE configurations. The single SFP28 management port supports 1G/10G/25GbE for out-of-band management.

Q: What is the difference between the SN5600D and SN5600 models?
A: The SN5600D variant is powered by a 48VDC busbar input, making it suitable for telecom and carrier-grade data centre environments that use DC power infrastructure. It also includes MGX mounting hardware, whereas the standard SN5600 uses dual AC power supplies and tool-less rail kits.

Q: Is this switch compatible with NVIDIA Spectrum-X deployments?
A: Yes, the SN5600D is purpose-built for NVIDIA Spectrum-X accelerated AI Ethernet solutions. It integrates seamlessly with NVIDIA BlueField DPUs, ConnectX SmartNICs, and LinkX interconnects to deliver optimised performance for AI/ML workloads with advanced RoCE capabilities.

Q: What operating systems can run on this switch?
A: This specific SKU ships with Cumulus Linux authentication pre-installed. The SN5000 series supports multiple network operating systems including Cumulus Linux, ONIE for bring-your-own-OS flexibility, and is compatible with various open networking stacks for data centre automation.
