NVIDIA

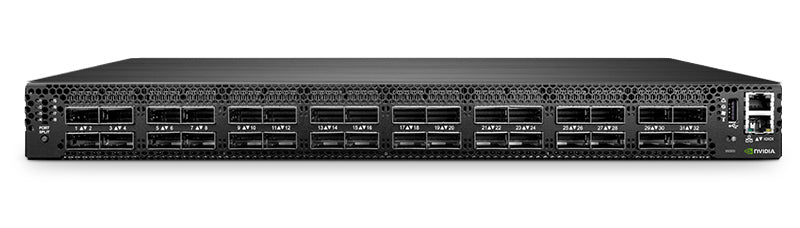

NVIDIA 920-9N301-00RB-0C0 | Spectrum-3 SN4700 32-Port 400GbE Switch, Cumulus Linux

SKU:920-9N301-00RB-0C0

$50,575.00 USD
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Spectrum-3 SN4700 is a 1U open Ethernet switch built for spine and super-spine roles in leaf/spine data centre fabrics. It suits cloud, AI and HPC clusters, hyperconverged storage and data analytics environments that need dense 400GbE connectivity.

It provides 32 QSFP-DD ports, each running at 1/10/25/40/50/100/200/400GbE, with breakout to up to 64 x 200GbE or 128 x 100/50/25/10/1GbE. The Spectrum-3 ASIC delivers 12.8 Tb/s of switching capacity at 8.4 Bpps with a 64MB fully shared packet buffer, backed by a quad-core x86 CPU, 16GB of RAM and a 64GB SSD. This variant ships pre-installed with Cumulus Linux, uses C2P (reverse) airflow and has two hot-swap AC power supplies in a 1+1 redundant arrangement with six hot-swap fans.

It works with 400GbE QSFP-DD optics and cables, and with 200G QSFP56, 100G QSFP28, 40G QSFP, 25G SFP28 and 10G SFP+ via adapters or breakout cables. Related part numbers include the MTEF-PSF-AC-F and MTEF-PSR-AC-F power supplies and the MTEF-FANF-C and MTEF-FANR-C fan modules.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- What Just Happened (WJH) streaming telemetry for faster issue resolution
- Hardware-accelerated histograms at sub-microsecond granularity
- Inband network telemetry (INT)-ready hardware
- 512K shared forwarding entries across ACL, LPM, host routes, MAC, ECMP and tunnels, with up to 1M IPv4 routes
- Single-pass VXLAN routing and IPv6 segment routing
- Cloud-scale NAT with 100K+ sessions
- RoCE and GPUDirect support with congestion management
- Multi-chassis LAG and 128-way ECMP
- Supports Docker containers on the switch

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Connectors: 32 x QSFP-DD 400GbE
- Port speeds: 1/10/25/40/50/100/200/400GbE per port
- Breakout: up to 64 x 200GbE or 128 x 100/50/25/10/1GbE
- Switching capacity: 12.8 Tb/s
- Wire speed switching: 8.4 Bpps
- CPU: Quad-core x86
- System memory: 16GB
- SSD memory: 64GB
- Packet buffer: 64MB fully shared
- Management ports: 1 x 100/1000Mb/s
- Serial ports: 1 x RJ45
- USB ports: 1
- Power supplies: 2 hot-swap AC (1+1 redundant)
- Power supply input: 100-264 VAC, 50-60 Hz
- Fans: 6 hot-swappable (N+1 redundant)
- Airflow: C2P (reverse)
- Form factor: 1U
- Size (H x W x D): 44 mm x 428 mm x 568.5 mm
- Operating temperature: 0 to 40 C
- Non-operating temperature: -40 to 70 C
- Relative humidity: 5% to 85%
- Operating altitude: 0 to 3050 m
- Operating system: Cumulus Linux pre-installed

FAQs

Q: Which operating system does this SKU run?
A: It ships pre-installed with NVIDIA Cumulus Linux. The Onyx and ONIE variants of the SN4700 are separate SKUs.

Q: What airflow direction does this model use?
A: This SKU uses C2P (reverse) airflow, so confirm it matches your rack's hot and cold aisle layout before ordering.

Q: What power does it need?
A: It has two hot-swap AC power supplies in a 1+1 redundant arrangement, accepting 100-264 VAC at 50-60 Hz. Replacement PSU part numbers are MTEF-PSF-AC-F and MTEF-PSR-AC-F.

Q: Which optics and cables does it work with?
A: The QSFP-DD ports take 400GbE optics and cables such as MCP1660-W0xxxxx DAC, T-DQ8FNS-N00-M SR8, MMS1V00-WM DR4 and C-DQ8FNM0xx-H0-M AOC. Lower speeds from 200G down to 10G are supported via adapters or breakout cables.

Q: How does it differ from other SN4700 SKUs?
A: This MSN4700-WS2RC variant combines Cumulus Linux, C2P (reverse) airflow, two AC power supplies and a rail kit. Other SKUs differ in operating system, airflow or PSU type.
