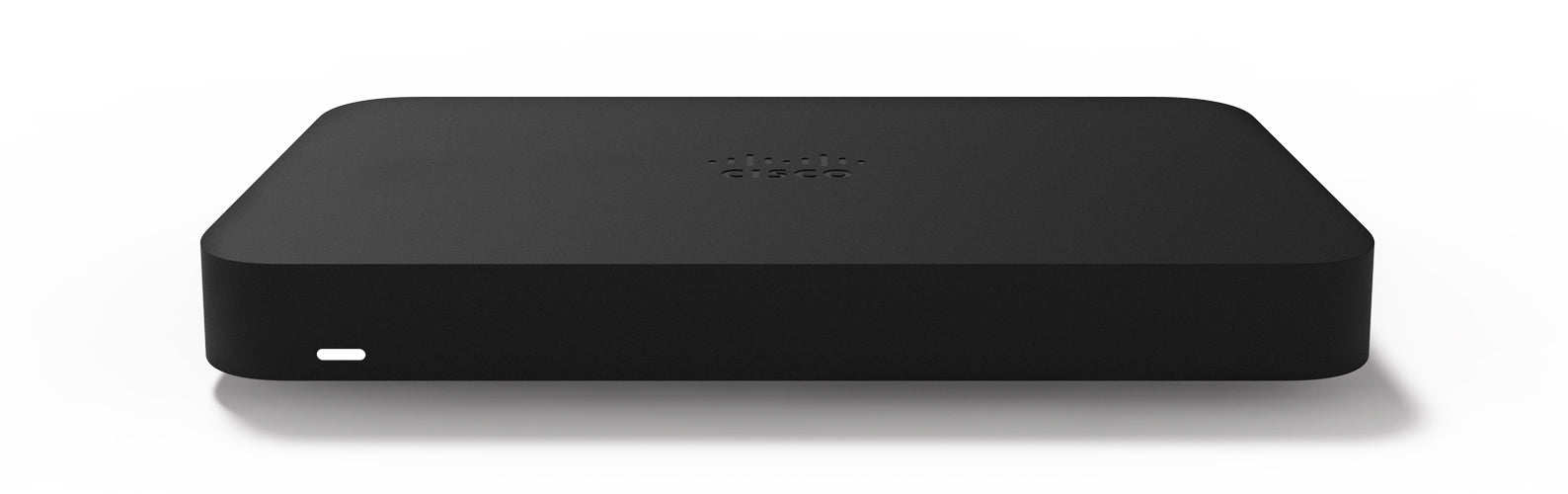

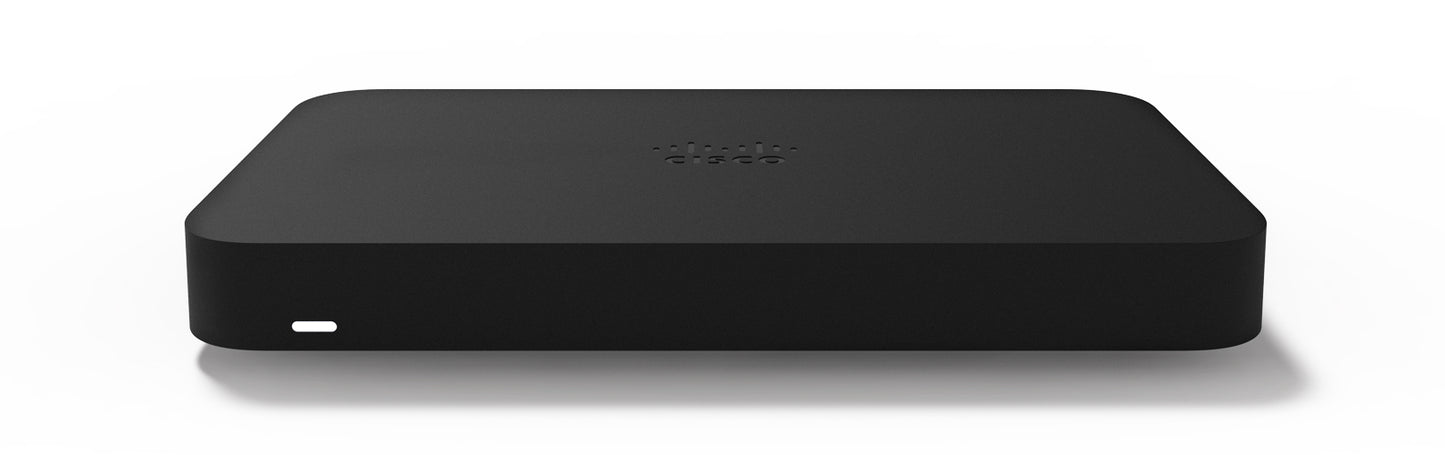

Meraki Z3C-HW-WW | Z3 Teleworker Gateway, LTE, Wi-Fi 5, 1x GE WAN + 4x GE LAN
SKU:Z3C-HW-WW
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Meraki Z3C is a cloud-managed teleworker gateway in the Meraki Z Series. It brings SD-WAN and Auto VPN to home offices and small remote sites, and this Z3C model adds an integrated Cat 3 LTE modem so cellular can serve as a failover or primary uplink. It is built for teleworkers and small sites that need a secure, centrally managed gateway.
This worldwide (WW) variant pairs LTE on the North America and Worldwide band set with dual-band Wi-Fi 5 and wired connectivity of 1x gigabit WAN and 4x gigabit LAN ports. One LAN port supplies 802.3af PoE, and a USB 2.0 port supports 3G/4G connectivity. Firewall throughput is 100 Mbps and VPN throughput is 50 Mbps, with 5 clients or fewer recommended per unit.
Security and routing include a stateful firewall, 1:1 NAT, DMZ, Layer 7 traffic analysis, Layer 3 failover and multiple WAN support. Management is through the Meraki Dashboard with zero-touch deployment, role-based administration and two-factor authentication, and it interoperates with Meraki MX Auto VPN hubs.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Cloud-managed through the Meraki Dashboard with zero-touch deployment
- Auto VPN and Client VPN for secure remote connectivity
- Stateful firewall, 1:1 NAT, DMZ and Layer 7 traffic analysis
- Layer 3 failover and multiple WAN support
- Integrated LTE for cellular failover or primary uplink
- Throughput, VPN and LTE traffic monitoring with Syslog integration
- Role-based administration and two-factor authentication
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product type: Cloud-managed teleworker gateway
- WAN interface: 1x GbE
- LAN interfaces: 4x GbE
- PoE: 1x 802.3af enabled LAN port
- USB: 1x USB 2.0 port for 3G/4G connectivity
- Cellular: Integrated Cat 3 LTE modem, up to 100 Mbps
- LTE bands: North America and Worldwide
- Wireless: Wi-Fi 5 dual-band
- Firewall throughput: 100 Mbps
- VPN throughput: 50 Mbps
- Recommended clients: 5 or fewer
- Management: Meraki Dashboard cloud management, zero-touch deployment
FAQs
Q: Does the Z3C need a licence to operate?
A: Yes. Meraki devices need a Meraki Z3 Teleworker Gateway licence to operate in the Meraki Dashboard. Confirm the licence term and SKU with Meraki when ordering.
Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.
Q: How does the Z3C differ from a non-LTE Z3?
A: The Z3C adds an integrated Cat 3 LTE modem for cellular failover or primary connectivity. This worldwide variant uses the North America and Worldwide LTE band set.
Q: What is needed to use the LTE connection?
A: A cellular antenna and an active SIM are required to use the integrated LTE modem.
Q: Does it work with Meraki MX appliances?
A: Yes. It interoperates with Meraki MX Auto VPN hubs, so a remote worker can connect securely back to the main site.
