Meraki MG21-HW-WW | MG21 Cat 6 LTE Cellular Gateway, PoE-in, Worldwide
SKU:MG21-HW-WW
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

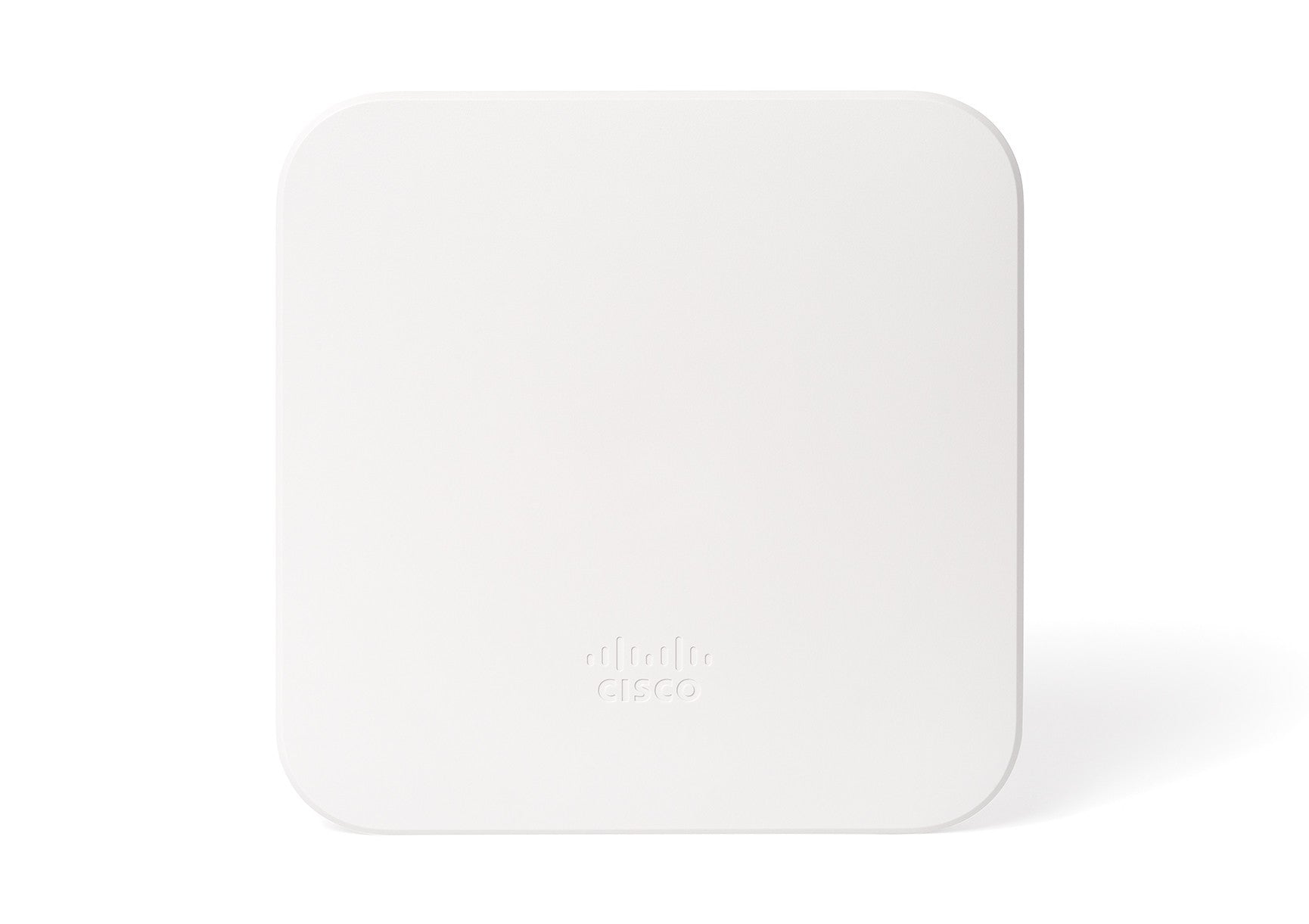

The Meraki MG21 is a cloud-managed cellular gateway with an integrated 300 Mbps Cat 6 LTE modem. It turns a cellular signal into an Ethernet handoff, making it suited to failover or backup WAN at branch locations, pop-up sites and emergency services, or as primary connectivity where wired internet is unavailable.
This Worldwide (WW) variant uses internal dipole and patch antennas with 2.72 dBi gain. It has a single 802.3af PoE-in port, can be powered from 12V/1A DC or 48-57V DC, and supports up to 2 downstream devices across 2 LAN interfaces. The IP67 rating and -20 to 45 C operating range suit outdoor and harsh environments, and the compact housing measures 160.45 x 160.45 x 34.45 mm.
The MG21 provides a wired uplink to a Meraki MX or any third-party router and is managed from the Cisco Meraki dashboard. It requires a Meraki MG21 Enterprise licence (LIC-MG21-ENT-1Y or LIC-MG21-ENT-3Y) to operate, and this hardware SKU does not include a licence.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Integrated 300 Mbps Cat 6 LTE modem
- Supports 2 separate downstream router connections
- Small form factor, PoE or DC powered
- IP67 rating for outdoor and harsh environments
- Cloud managed and self-configuring from the Meraki dashboard
- Automatic firmware upgrades with scheduling control
- Email, SMS and mobile push notification alerts
- Ping, traceroute, cable testing and link failure detection with alerting
- Remote packet capture
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Modem: 300 Mbps Cat 6 LTE
- Variant: Worldwide (WW) LTE bands
- Antennas: Internal, dipole and patch
- Antenna gain: 2.72 dBi
- PoE-in port: 1 x 802.3af compatible
- LAN interfaces: 2
- Downstream devices: Up to 2
- Power supply: 12V/1A or 48-57V DC/0.35A
- Ingress protection: IP67
- Operating temperature: -20 to 45 C
- Humidity: 5% to 95% non-condensing
- Dimensions (W x D x H): 160.45 x 160.45 x 34.45 mm
- Certifications: PTCRB (US), RCM (ANZ, APAC), GCF (EU)
- Management: Cisco Meraki dashboard
FAQs
Q: Does the MG21 need a licence to operate?
A: Yes. It requires a Meraki MG21 Enterprise licence, available as LIC-MG21-ENT-1Y for one year or LIC-MG21-ENT-3Y for three years. This hardware SKU does not include a licence.
Q: How is the MG21 powered?
A: It can be powered by 802.3af PoE-in (48-57V DC/0.35A) or a 12V/1A DC supply.
Q: What can the MG21 connect to?
A: It provides a wired uplink to a Meraki MX or any third-party router, and supports up to 2 downstream devices.
Q: How does the MG21-HW-WW differ from the MG21-HW-NA?
A: The WW variant is built for worldwide LTE bands, while the NA variant targets North American bands. Both use internal antennas.
Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.
