HPE

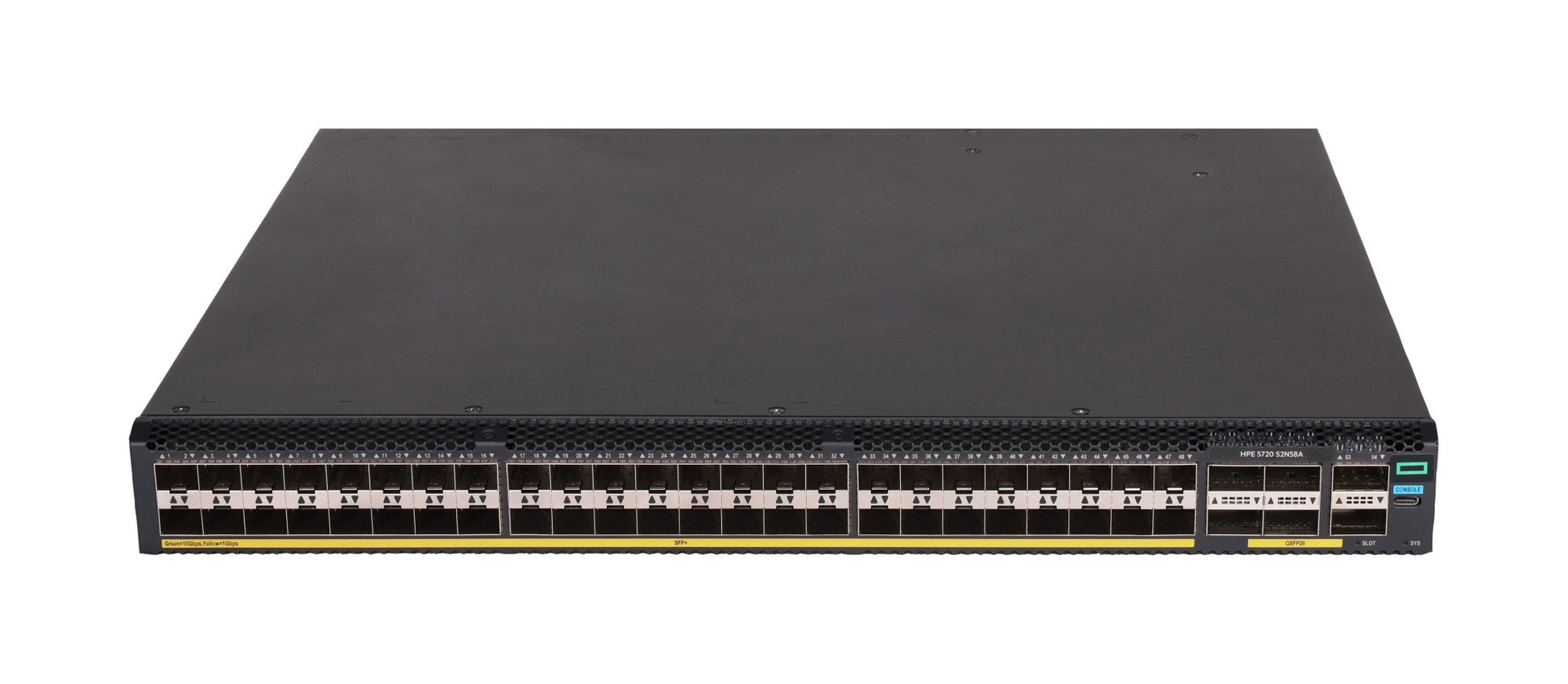

HPE S2N58A | Comware 5720 48-Port 10G SFP+ Switch, 6x 100G QSFP28

SKU:S2N58A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Comware 5720 is a fixed-port Layer 3 managed data centre switch built for leaf, top-of-rack and access layer roles in medium and large enterprise networks. It gives you dense 10G server connectivity with 100G uplinks in a 1U chassis.

This model provides 48 SFP+ ports that run at 1G or 10G, plus 6 QSFP28 ports at 100G, for 54 ports in total across 1000Base-X, 10GBase-X and 100GBase-X. It has two pluggable power supply bays for redundant AC (120 V or 230 V) or DC (-48 V or -60 V) operation, front-to-back airflow and a typical power consumption of 89 W. The chassis measures 4.4 x 44 x 40 cm and weighs 7.9 kg.

IRF stacking virtualises up to nine physical switches into one logical device, and DRNI lets two switches act as a single distributed-relay system. The switch supports VXLAN with lite EVPN and In-Service Software Upgrade, and it is managed through HPE Intelligent Management Center (IMC). The power supplies are shared with the Comware 5710 series and the fan module with the Comware 5944 series.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Intelligent Resilient Framework (IRF) virtualises up to nine physical switches into one logical device
- Distributed resilient network interconnect (DRNI) combines two switches into one virtual distributed-relay system
- VXLAN with lite EVPN for Layer 2 and Layer 3 overlay services
- In-Service Software Upgrade (ISSU) for updates with minimal disruption
- Redundant pluggable AC or DC power supplies
- AAA/RADIUS authentication with user binding by account, IP, MAC, VLAN and port
- Managed through HPE Intelligent Management Center (IMC)
- Cost-effective leaf and access design with 10G SFP+ and 100G QSFP28 uplinks

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product type: Layer 3 managed Ethernet switch
- SFP+ ports: 48 x 1G/10G
- QSFP28 ports: 6 x 100G
- Total expansion slots: 54
- Network technology: 1000Base-X, 10GBase-X, 100GBase-X
- Media type: Optical fibre
- Form factor: Rack-mountable, 1U
- Airflow: Front to back
- Power source: Pluggable power supply, AC or DC
- Power supplies supported: 2 (redundant)
- Input voltage: 120 V AC, 230 V AC, -48 V DC, -60 V DC
- Power consumption: 89 W
- Dimensions (H x W x D): 4.4 x 44 x 40 cm
- Weight: 7.9 kg
- Colour: Black/Silver/Yellow
- Application: Data centre, enterprise network
- IRF stacking: up to 9 switches

FAQs

Q: How are the power supplies configured on this switch?
A: It has two pluggable power supply bays that support redundant operation. You can use AC units (120 V or 230 V) or DC units (-48 V or -60 V). The power supplies are shared with the Comware 5710 series.

Q: Do the SFP+ ports support both 1G and 10G?
A: Yes. Each of the 48 SFP+ ports supports 1G and 10G optics or DACs. The 6 QSFP28 ports run at 100G for uplinks.

Q: How many switches can be stacked together?
A: IRF stacking lets you virtualise up to nine switches into a single logical device with one management point.

Q: Which airflow direction does the chassis use?
A: Airflow is front to back, so plan the switch position in the rack to match your hot and cold aisle layout.

Q: How is this switch managed?
A: It is managed through HPE Intelligent Management Center (IMC) as well as the Comware command line interface.
