HPE

HPE S2N57A | Comware 5720 32-Port 10G SFP+ Switch, 6x 100G QSFP28

SKU:S2N57A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

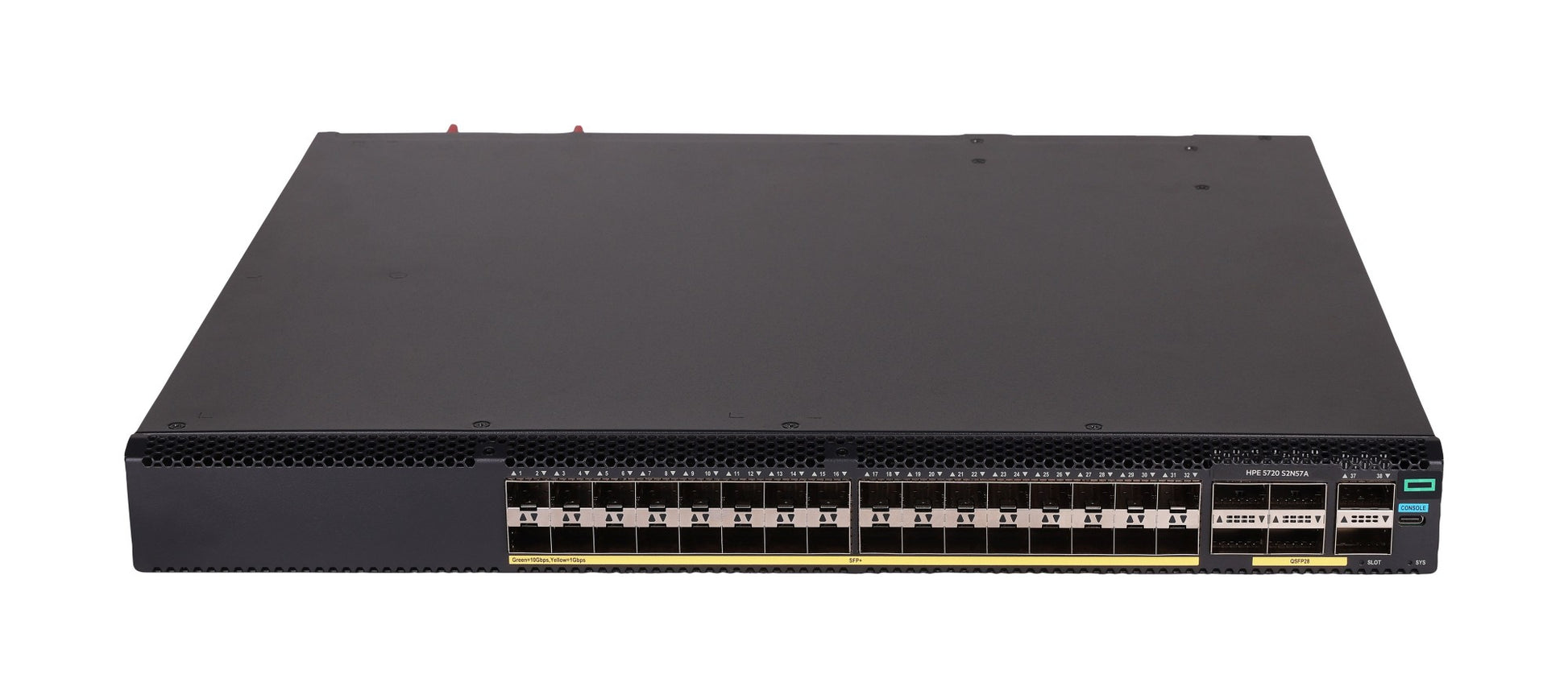

The Comware 5720 is a 1U Layer 3 managed data centre switch built for leaf, top-of-rack and access-layer deployments. It suits environments scaling from 10GbE SFP+ to 100G QSFP28 uplinks, and can also be used in campus and branch designs.

This model provides 32 SFP+ ports running at 1G or 10G and 6 QSFP28 ports at 100G. Switching capacity is 2240 Gbps with a packet forwarding rate of 1001 Mpps and a 32 MB packet buffer. Two pluggable AC power supplies are fitted for redundancy, with front-to-back airflow for hot and cold aisle layouts. It is the 32-port SFP+ variant, sitting below the 48-port SFP+ model in the same range.

It supports IRF virtualisation of up to 9 units into one logical device, along with VXLAN and MACsec. SFP+ ports accept 1G/10G optics and direct attach cables, while the QSFP28 ports are configurable with a 100G QSFP28 or QSFP+ transceiver. Comware software is included and the switch can be managed through HPE IMC.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- HPE Intelligent Resilient Framework (IRF) virtualises up to 9 switches into one logical device
- VXLAN support for data centre overlay networks
- MACsec support for link-level encryption
- Equal-cost multi-path (ECMP) routing
- Distributed resilient network interconnect (DRNI)
- Jumbo frame support up to 9216 bytes
- AAA and RADIUS authentication with dynamic or static binding of user, IP, MAC, VLAN and port
- Managed via HPE IMC, with support for IMC Orchestrator and Analyzer

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 32 x 1G/10G SFP+ and 6 x 100G QSFP28
- Management ports: 1 x 10/100/1000Base-T out-of-band, 1 x RJ-45 console, 1 x USB-C console, 1 x USB
- Layer: 3 (managed), 1U rack-mountable
- Switching capacity: 2240 Gbps
- Forwarding rate: 1001 Mpps
- Latency (1000 Mbps): under 5 µs
- Latency (10 Gbps): under 3 µs
- Packet buffer: 32 MB
- MAC address table: 280K entries
- IRF stack: up to 9 units
- Processor: 1 x ARM Cortex-A72
- Memory: 4 GB DDR4 SDRAM
- Flash: 4 GB
- Power supplies: 2 installed, pluggable AC
- Input voltage: AC 100-240 V
- Standby power consumption: 90 W
- Dimensions (H x W x D): 4.4 x 44 x 40 cm
- Weight: 8.1 kg
- Operating temperature: 0 to 45 C
- Storage temperature: -40 to 70 C
- Operating humidity: 5-95% non-condensing
- Airflow: Front to back

FAQs

Q: Does this switch support PoE?
A: No. This is a non-PoE data centre switch. It is powered by two pluggable AC power supplies rated for 100-240 V.

Q: Is Comware software licensing included?
A: Comware software is included with the switch. HPE IMC, IMC Orchestrator and Analyzer are separate management offerings with their own licensing.

Q: What optics does it work with?
A: The SFP+ ports take 1G or 10G optics and direct attach cables. The QSFP28 ports are configurable with a 100G QSFP28 or QSFP+ transceiver.

Q: Can multiple switches be stacked?
A: Yes. HPE IRF can virtualise up to 9 units into a single logical switch for simpler management and resilience.

Q: How does it differ from S2N58A?
A: S2N57A has 32 SFP+ 1G/10G ports with 6 QSFP28 100G ports. S2N58A offers 48 SFP+ ports with the same 6 QSFP28 ports.
