HPE R8P29A | SN3600B 24-Port 32G FC Switch, 16G SW SFP+, Power Pack+
SKU:R8P29A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

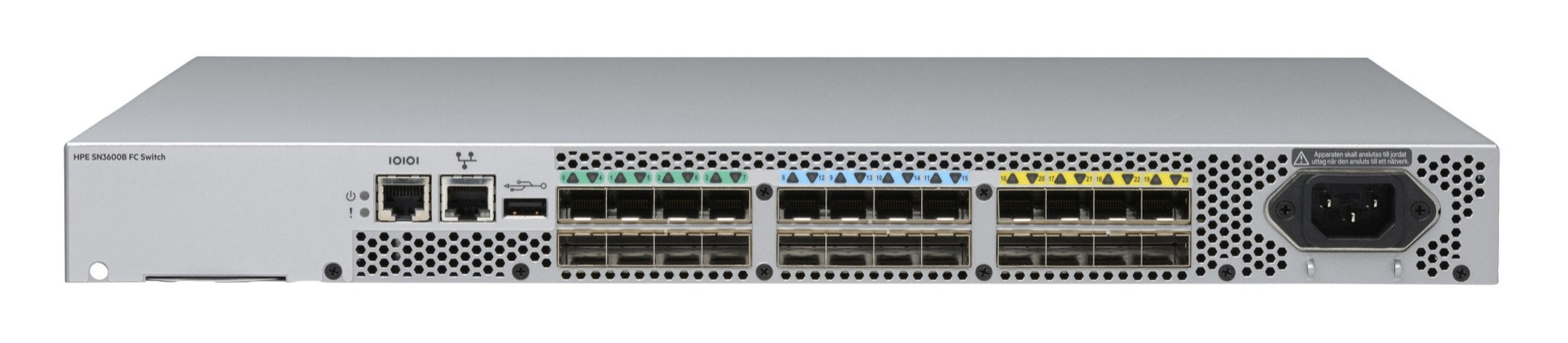

The HPE SN3600B is an entry-level Gen6 32Gb Fibre Channel SAN switch in a 1U chassis, part of the HPE B-series Fibre Channel switch range. This R8P29A configuration suits small to medium SAN workgroups and enterprise SAN edge or core switching, particularly flash and all-flash storage, virtualised and cloud environments that need Gen6 FC performance on a limited budget.
All 24 ports are active (24/24) and the switch ships with 24 x 16Gb short wave SFP+ transceivers. The SFP+ ports auto-negotiate 4, 8, 16 and 32Gbps, giving 768Gbps of aggregate bandwidth with port-to-port latency under 900ns. The Power Pack+ software bundle is included, covering Fabric Vision, ISL Trunking and Extended Fabric, alongside the base Fabric OS software. Because every port is already licensed, no Ports on Demand upgrade is needed.
The switch uses HPE hot-pluggable B-series SFP+ optics with LC connectors and runs Fabric OS. It works with HPE Primera, 3PAR, Nimble, StoreVirtual 4000, P9000/XP7 and MSA 2050/1050 storage. Airflow is back-to-front, with a single integrated AC power supply and four integrated cooling fans.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Gen6 32Gb Fibre Channel throughput with backward compatibility to 4/8/16Gb FC
- All 24 ports licensed and active, no Ports on Demand upgrade required
- ISL Trunking combines up to eight ports into one logical ISL of up to 256Gbps
- Fabric Vision, ISL Trunking and Extended Fabric included via Power Pack+
- ClearLink D_Port diagnostics plus embedded optics and environmental health monitoring
- NVMe over Fabric ready when the SAN infrastructure supports it
- Supports lower-cost 16Gb SFP+ optics as well as 32Gb SFP+ optics
- Hot code load and simple 3-step installation
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Active ports: 24 of 24 FC ports, SFP+
- Maximum port speed: 32Gbps (auto-negotiates 4/8/16/32Gbps with matching optics)
- Included transceivers: 24 x 16Gb short wave SFP+
- Aggregate switch bandwidth: 768Gbps end-to-end full duplex
- Port-to-port latency: under 900ns for locally switched ports
- Frame buffers: 2,000 dynamically allocated
- Maximum frame size: 2,112-byte payload
- Classes of service: Class 2, Class 3, Class F
- Port types: F_Port, E_Port, M_Port, D_Port; Access Gateway mode supports F_Port and NPIV-enabled N_Port
- Media types: 32Gbps SWL/LWL and 16Gbps SWL/LWL/ELWL, hot-pluggable SFP+ with LC connector
- Software: Power Pack+ (Fabric Vision, ISL Trunking, Extended Fabric)
- Form factor: 1U rack-mount
- Airflow: back-to-front, power from back
- Dimensions (H x W x D): 42.88 mm x 428.8 mm x 306.6 mm
- Weight: 5.76 kg with one integrated power supply, without transceivers
- Operating temperature: 0 to 40 C
- Non-operating temperature: -25 to 70 C
- Power supply: single fixed integrated AC supply, 90 to 264 V input
- Cooling: four integrated hot-plug fans
- Heat dissipation: 215 BTU/hr typical at 100VAC
FAQs
Q: Does this switch need extra port licences?
A: No. All 24 ports are licensed and active on this SKU, so no Ports on Demand upgrade is required.
Q: Which software is included with this model?
A: It includes the Power Pack+ bundle (Fabric Vision, ISL Trunking and Extended Fabric) along with the base Fabric OS software, Advanced Web Tools and Advanced Zoning.
Q: Can it run at 32Gbps with the included optics?
A: The included 16Gb short wave SFP+ transceivers run at up to 16Gbps. To run ports at 32Gbps, fit HPE 32Gb SFP+ optics, as the SFP+ ports auto-negotiate 4, 8, 16 and 32Gbps with matching optics.
Q: Which storage systems does it work with?
A: It works with HPE Primera, 3PAR StoreServ, Nimble, StoreVirtual 4000, P9000/XP7 and MSA 2050/1050 storage.
Q: How is it powered and cooled?
A: It has a single fixed integrated AC power supply accepting 90 to 264 V and four integrated hot-plug fans, with back-to-front airflow.
Q: How does it differ from the other SN3600B variants?
A: This R8P29A configuration has all 24 ports active, ships with 24 x 16Gb short wave SFP+ optics, and includes Power Pack+ software.
