HPE R8M66A | SN6640C 32G FC/FCIP Multiservice Switch, 4x FC, 2x 10GbE
SKU:R8M66A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

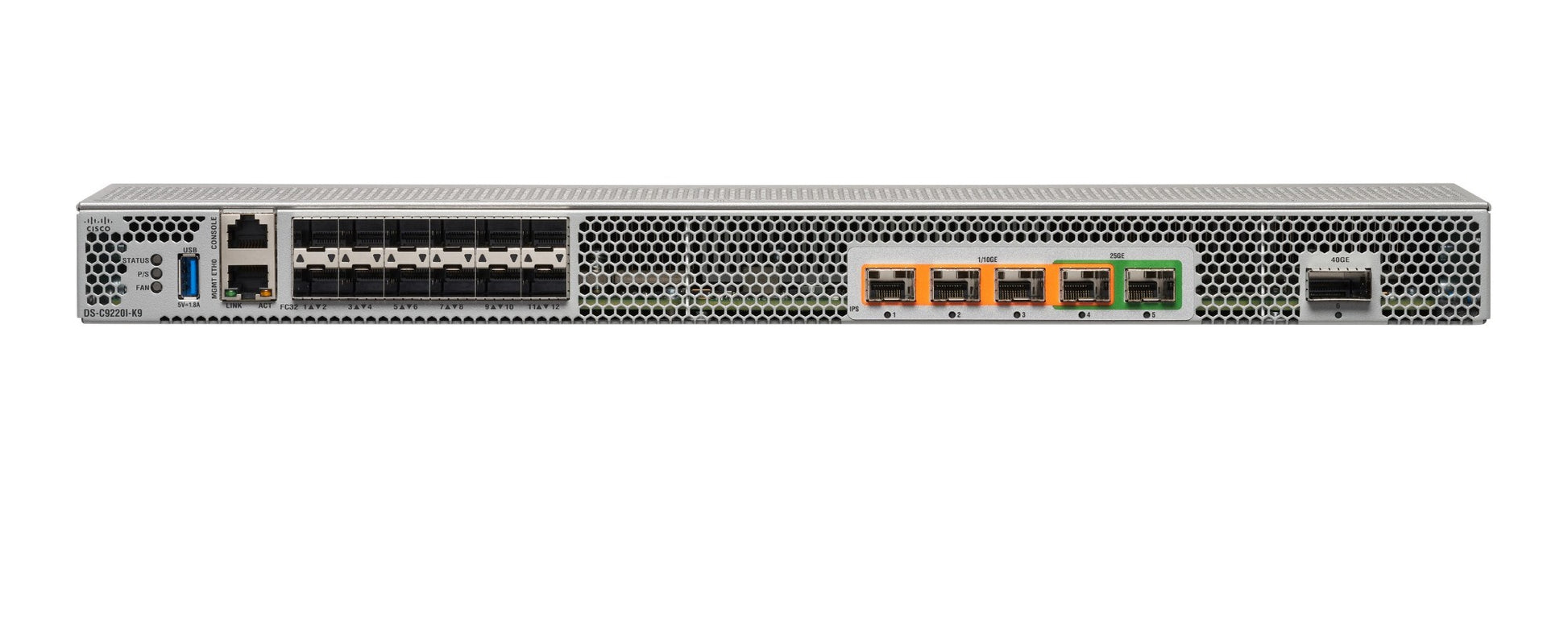

The HPE SN6640C is a compact 1U multiservice Fibre Channel switch built for SAN extension over IP and multiprotocol connectivity. It suits departmental and remote branch-office SANs, as well as large SANs alongside HPE SN8700C multilayer directors, with disaster recovery, business continuity and backup over WAN as the main use cases.
This R8M66A base configuration provides four 32Gbps Fibre Channel ports and two 1/10GbE FCIP ports, with the FCIP ports running at 1Gbps by default. The SAN Extension over IP package is enabled on the two fixed Ethernet ports as standard, giving hardware-based data compression, tape acceleration and IPsec encryption for FCIP. A port upgrade licence is needed to run the Ethernet ports at 10Gbps, activate the additional Fibre Channel and FCIP ports, and enable 25GbE or 40GbE. The chassis scales to 12 x 32Gbps FC ports and up to 384 Gbps of Fibre Channel bandwidth.
The switch runs MDS 9000 NX-OS, is managed through CLI, SMI-S, web services API or Cisco NDFC/DCNM, and interoperates with HPE C-series SN8500C and SN8700C directors and other C-series fabric switches. It supports 32/16/8Gb Fibre Channel and 40/25/10/1GbE transceivers.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Multiservice, multiprotocol switch for SAN extension and FCIP
- SAN Extension over IP package enabled on the two fixed 1/10GbE ports, so FCIP and compression need no extra licence
- Hardware-based data compression and tape acceleration for remote backup over WAN
- Hardware-based IPsec encryption for secure transmission over long distances
- Can act as an FCIP SAN extension switch for the HPE SN8700C director
- Connects to existing native Fibre Channel networks
- Non-disruptive software upgrades with hot-swappable PSUs, fan modules and SFP+ optics
- Runs C-series MDS 9000 NX-OS
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Fibre Channel ports (base): 4 x 32Gbps
- FCIP ports (base): 2 x 1/10GbE, 1Gbps default speed
- Maximum FC ports with licences: 12 x 32Gbps
- Maximum FCIP ports with licences: 4 x 1/10GbE, or 2 x 25GbE, or 1 x 40GbE (one combination at a time)
- Switch bandwidth: up to 384 Gbps Fibre Channel
- Media types: 32/16/8Gb Fibre Channel, 40/25/10/1GbE transceivers
- Form factor: 1RU rack-mountable
- Dimensions (H x W x D): 1.72 in x 17.30 in x 20.12 in
- Power supply: 500W 80Plus Platinum, hot-swappable 1+1 redundant
- Typical power consumption: 240 W
- AC input: 100 to 240V AC, 50 to 60 Hz
- Power cord connector: C15 socket to C16 plug on power supply
- Airflow: front to back
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Operating humidity: 10 to 90% non-condensing
- Operating altitude: -60 to 2000 m
- Management: SMI-S, CLI, Cisco DCNM/NDFC, web services API
FAQs
Q: Does the SN6640C R8M66A need a licence?
A: It is feature-licensed. The SAN Extension over IP package is included on the two fixed 1/10GbE ports, so FCIP and compression work as standard. A port upgrade licence is needed to run those ports at 10Gbps, activate the extra FC and FCIP ports, and enable 25GbE or 40GbE.
Q: What speed do the Ethernet ports run at on this SKU?
A: The two 1/10GbE FCIP ports run at 1Gbps by default on the R8M66A base configuration. A port upgrade licence enables 10Gbps operation.
Q: How many Fibre Channel ports can the chassis support?
A: The base configuration has four 32Gbps FC ports active. With the upgrade licence the chassis supports up to 12 x 32Gbps FC ports and up to 4 FCIP ports.
Q: What power does it use?
A: It uses a hot-swappable 500W 80Plus Platinum power supply in a 1+1 redundant arrangement, accepting 100 to 240V AC at 50 to 60 Hz. Typical consumption is 240W, with front-to-back airflow.
Q: What can it interoperate with?
A: It interoperates with HPE C-series SN8500C and SN8700C directors and other C-series fabric switches such as the SN6610C, SN6620C, SN6630C, SN6710C, SN6720C and SN6730C. It is managed with Cisco NDFC/DCNM.
