HPE

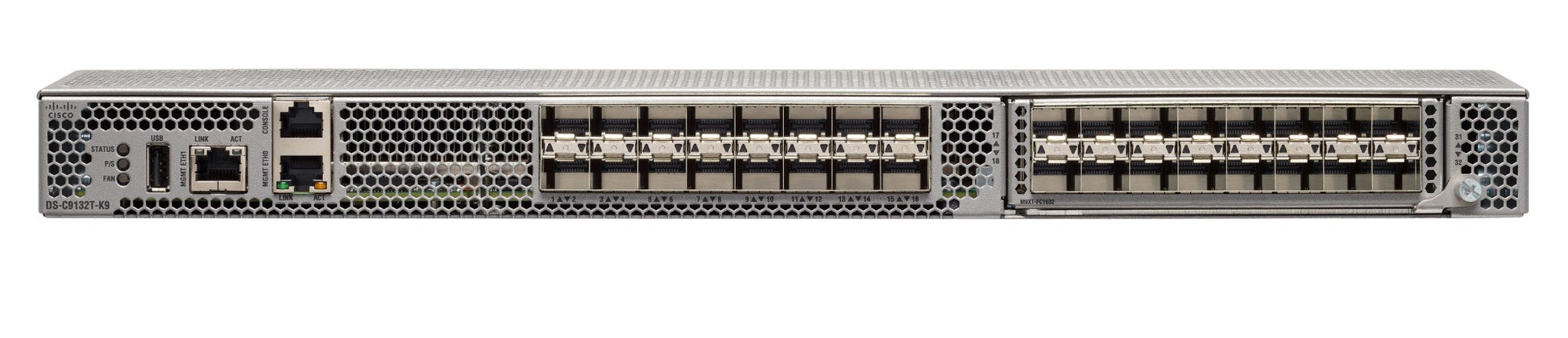

HPE R7L02A | SN6610C 8-Port 32G FC Switch, 4x16G + 4x32G SFP+

SKU:R7L02A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The HPE C-series SN6610C is a 1RU 32Gbps Fibre Channel fabric switch, based on the Cisco MDS 9132T, built for SAN edge and core connectivity. It suits server-rack-to-SAN-core links for small, midsize and large enterprises, virtualised environments and all-flash-array workloads, with SAN Insights analytics for performance visibility.

This R7L02A bundle ships with 8 active ports and a mix of 4x 16Gb and 4x 32Gb SFP+ optics. The ports autosense 8, 16 and 32 Gbps, with dedicated 32 Gbps bandwidth per port and up to 1024 Gbps aggregate bandwidth. The chassis has one fixed and one expansion slot, and port counts scale in 8-port increments up to 32 ports using the port activation licence Q9Z41AAE. The expansion module Q9D33A is needed beyond 16 active ports.

The bundle includes 1-year DCNM and 1-year SAN Insights term licences. Two units must be purchased to get the SAN Insights performance insights. It requires MDS 9000 NX-OS 8.2(1) or higher, and SAN Insights through DCNM needs DCNM 11.1(1) or later with NX-OS 8.4(1) or later. After the term, DCNM E-LTU R4F89AAE and a SAN Insights E-LTU are needed to keep using those features.

It works in core-edge fabrics with HPE C-series SN8500C, SN8700C, SN6620C, SN6630C, SN6010C, SN6710C, SN6720C and SN6640C switches.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Built-in analytics and telemetry on a next-generation ASIC platform
- NPIV and NPV modes with F-port channeling for SAN scaling
- VSANs for fault isolation and PortChannels for ISL resiliency
- REST and NX-API for programmability
- Non-disruptive software upgrades and stateful process restart
- SAN plug and play support
- Pay-as-you-grow port activation licensing
- FC-NVMe support
- Managed through Cisco Data Center Network Manager (DCNM)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Switch type: Multilayer Fabric Switch (SN6610C 32Gb Fabric Switch)
- Active ports (this bundle): 8, scalable up to 32 x 32Gbps Fibre Channel ports
- Bundled optics: 4 x 16Gb SW SFP+ and 4 x 32Gb SW SFP+
- Port speed: 8, 16 and 32 Gbps autosensing, 32 Gbps dedicated bandwidth per port
- Aggregate bandwidth: up to 1024 Gbps
- Slots per chassis: one fixed and one expansion slot
- Port upgrade: 8-port increments via E-LTU Q9Z41AAE, expansion module Q9D33A required beyond 16 active ports
- Buffer credits: up to 8300 per 16-port group, default 500 per port, max 8270 for a single port
- PortChannel: up to 16 ports per PortChannel
- Fibre Channel port types: E, F, B (standard); SD, ST, TE (enhanced)
- Management: out-of-band 10/100/1000 Ethernet, EIA/TIA-232 serial console, in-band IP over FC, CLI, SNMPv3, NX-API
- Minimum software: MDS 9000 NX-OS Release 8.2(1)
- Power supplies: 650W AC, maximum 2 per switch (1+1 redundancy)
- AC input: 100 to 240 VAC, 50 to 60 Hz
- Typical power consumption: 80 W with 8 ports activated on 32G SFPs with traffic at 25 C
- Airflow: rear to front (toward ports)
- Dimensions (H x W x D): 43.7 x 439 x 511 mm (1RU)
- Weight (fully configured): 9.82 kg
- Operating temperature: 0 to 40 C
- Operating humidity (non-condensing): 10 to 90%
- Regulatory: UL 60950, CE, AS/NZS 3260, FCC Part 15 Class A, EN55022 Class A, VCCI Class A, AS/NZS 3548 Class A

FAQs

Q: Which licences come with this SN6610C bundle?
A: It includes a 1-year DCNM term licence and a 1-year SAN Insights term licence, with the basic DCNM Essentials edition and NX-OS. After the term, DCNM E-LTU R4F89AAE and a SAN Insights E-LTU are needed to keep using those features.

Q: Can I add more than 8 active ports?
A: Yes. Ports activate in 8-port increments using the port activation E-LTU Q9Z41AAE, up to 32 ports. The 16-port expansion module Q9D33A is required beyond 16 active ports.

Q: What software versions does it need?
A: The switch needs MDS 9000 NX-OS 8.2(1) or higher. Using SAN Insights through DCNM requires DCNM 11.1(1) or later and NX-OS 8.4(1) or later.

Q: What power supplies does it use?
A: It takes up to two hot-swappable 650W AC power supplies for 1+1 redundancy, on 100 to 240 VAC at 50 to 60 Hz. The optional supply is Q9D37A.

Q: Which SFP+ optics work with the SN6610C?
A: Supported optics are the 32Gb SW and LW SFP+ (Q9D30A and Q9D31A), 16Gb SW and LW SFP+ (C8S72A and C8S73A) and 8Gb SFP+ (AJ906A and AJ907A).

Q: Why must two units be purchased for SAN Insights?
A: HPE specifies that two units are needed to get the SAN Insights performance insights from this bundle.
