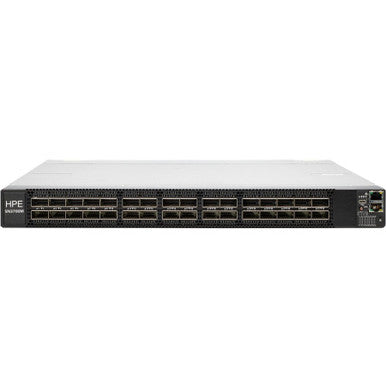

HPE R5Z74A | M-series SN3700M 32-Port 200GbE QSFP56 Switch, ONIE, P2C

SKU:R5Z74A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The HPE M-series SN3700M is a 1U data centre Ethernet switch built on the NVIDIA Spectrum-2 ASIC. It suits top-of-rack leaf and fixed-configuration spine roles in cloud-scale Layer 2 and Layer 3 data centres, and workloads such as hyperconverged and software-defined storage, NVMe flash storage, analytics, financial services and media streaming.

The front panel carries 32 QSFP56 ports that run at 1, 10, 25, 40, 50, 100 or 200GbE. Every port supports x2 or x4 breakout, giving up to 128 ports. Switching capacity is 12.8 Tbps with up to 8.33 Bpps processing, backed by a 42 MB fully shared packet buffer and a 512K on-chip forwarding table. Power comes from 2 x 1100 W hot-swap supplies with 6 fan modules, and airflow is power to connector.

This R5Z74A SKU is the ONIE version, so no network operating system is pre-installed. You load a compatible open NOS, such as NVIDIA Cumulus Linux, under its own licensing. It works with QSFP56 200G pluggables such as the HPE 200GB QSFP56 DAC R5Z76A and R5Z77A, as well as QSFP28 100G, QSFP+ 40G and SFP28 or SFP+ optics through breakout or adapters.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Built on the second generation NVIDIA Spectrum-2 ASIC for leaf, spine and super-spine data centre designs
- Non-blocking, wire-speed throughput across all packet sizes
- Zero packet loss support with RoCEv2 RDMA, NVMe/TCP, DCBX, PFC and ECN
- In-band network telemetry and deep visibility through 512K counters
- Feature-rich Layer 2 and Layer 3 forwarding
- Supports DAC, AOC and optical breakout cables
- ONIE allows zero-touch install of a compatible open network operating system

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- ASIC: NVIDIA Spectrum-2
- Ports: 32 x QSFP56 (1GbE to 200GbE)
- Port breakout: all ports split x2 or x4, up to 128 ports
- Switching capacity: 12.8 Tbps at 200GbE, 6.4 Tbps at 100GbE
- Processing capacity: 8.33 Bpps at 200GbE, 4.76 Bpps at 100GbE
- Packet buffer: 42 MB on-chip, fully shared
- Forwarding table: 512K on-chip, dynamically shared
- Counters: 512K general-purpose counters
- Latency: ultra-low, true cut-through
- Layer: Layer 2 and Layer 3
- Management ports: MGMT0 100 Mbps to 1 Gbps, RS232 serial console (RJ45), Micro USB 2.0
- Power supplies: 2 x 1100 W with intake fan, field replaceable
- Fans: 6 x intake fan tray
- Airflow: Power to Connector (P2C)
- Form factor: 1U rack-mountable
- Software: ONIE, open network OS install

FAQs

Q: Does this switch come with a network operating system?
A: No. R5Z74A is the ONIE SKU with no NOS pre-installed. You install a compatible open network OS, such as NVIDIA Cumulus Linux, subject to that software's own licensing.

Q: Can it be converted to run a different NOS later?
A: Because it is an ONIE SKU, you choose and install the open NOS yourself. SKUs factory-installed with Cumulus Linux cannot be converted to ONYX or ONIE SKUs.

Q: What power does it use?
A: It uses 2 x 1100 W redundant hot-swap power supplies with intake fans, which are field replaceable.

Q: Which airflow direction does this SKU use?
A: This SKU uses power to connector (P2C) airflow. Check that it suits your rack's hot and cold aisle layout.

Q: What optics and cables does it support?
A: The QSFP56 ports take 200G pluggables such as the HPE 200GB QSFP56 DAC R5Z76A and R5Z77A, plus QSFP28 100G and QSFP+ 40G. SFP28 and SFP+ optics work via breakout or adapters. Cumulus 5.9.2 or later is required for QSA28 and QSFP56 200G pluggables.

Q: Can the ports be split into lower speeds?
A: Yes. All 32 ports support x2 or x4 breakout, giving up to 128 ports.
