HPE

HPE Q9D35B | SN6610C 32G Fibre Channel Switch, 32/8 Ports, SFP+ v2

SKU:Q9D35B

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

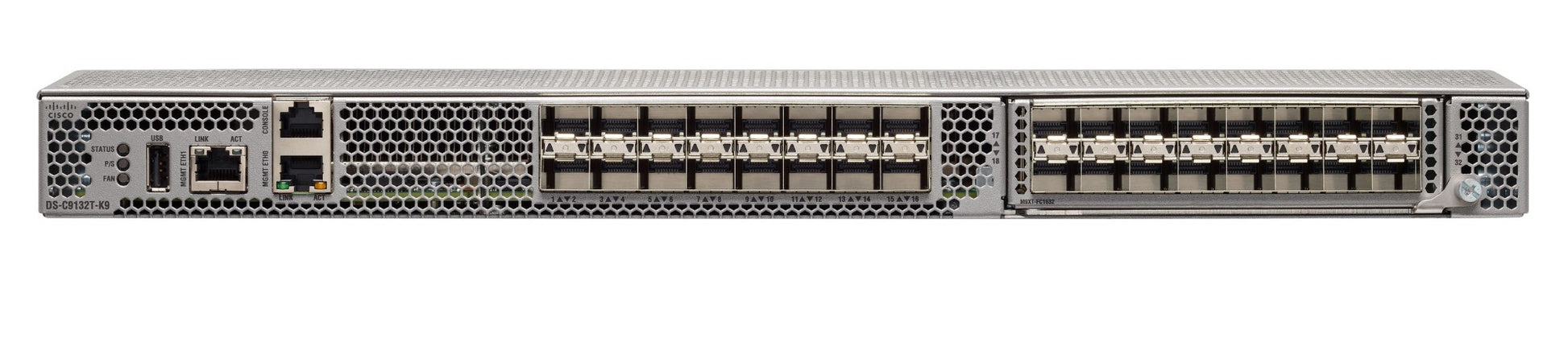

The SN6610C is a 1U, 32Gb Fibre Channel SAN switch from the HPE Storage Fibre Channel C-series, formerly StoreFabric. It suits high-performance SAN connectivity from the server rack to the SAN core, including NVMe and all-flash arrays and virtualised workloads.

This v2 SKU is the 32/8 configuration, with 8 active 32Gb Fibre Channel ports on a 32-port chassis, supplied with 8 x 32Gb short-wave SFP+ transceivers. Every port delivers 32 Gbps low-latency switching, with 1024 Gbit/s of aggregate switching capacity. The switch is managed, supports QoS, and is managed through SNMP, SMI-S, SSH and CLI. It has dual redundant AC power supplies rated for 100-240 V, 50-60 Hz, and has no PoE or RJ-45 switching ports.

Port capacity grows from 8 to 16 ports and then up to a maximum of 32 ports with a port expansion module. The switch accepts both 16Gb FC and 32Gb FC SFP+ optics, so it can be matched to existing fabric speeds. Analytics and telemetry are built into the ASIC platform.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Consistent 32 Gbps low-latency performance on every FC port
- 1024 Gbps of aggregate bandwidth for growing and dynamic workloads
- Scales from 8 to 16 ports, then up to 32 ports with a port expansion module
- Supports 16Gb FC and 32Gb FC SFP+ optics
- Built-in analytics and telemetry on the ASIC platform
- Optional redundancy on major components, including power supplies and fans
- Lower initial investment and power use for entry-level configurations of up to 8 ports

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Configuration: 32/8, 8 active 32Gb FC ports on a 32-port chassis
- Transceivers: 8 x 32Gb Short Wave SFP+
- Fibre ports quantity: 8 (active in this SKU)
- Fibre optic connector: SFP+
- Switching capacity: 1024 Gbit/s
- Switch type: Managed
- Quality of Service (QoS) support: Yes
- Management protocols: SNMP 1, SNMP 3, SMI-S, SSH, SSH-2, CLI
- Security algorithms: SNMPv3
- SSH/SSL support: Yes
- Form factor: 1U
- Rack mounting: Yes
- Product colour: Metallic
- Power source: AC
- Number of power supply units: 2
- Redundant power supply (RPS) support: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power over Ethernet (PoE): No
- Ethernet RJ-45 switching ports: None

FAQs

Q: How many ports are active on this SKU?
A: This is the 32/8 configuration, so 8 ports are active on a 32-port chassis. Ports can be grown to 16 and then up to 32 with a port expansion module.

Q: Which SFP+ optics does it take?
A: It accepts 16Gb FC and 32Gb FC SFP+ optics. This SKU is supplied with 8 x 32Gb short-wave SFP+ transceivers.

Q: How is it powered?
A: It has two redundant AC power supplies rated for 100-240 V at 50-60 Hz. It does not support PoE.

Q: Does it have Ethernet ports?
A: No. It has no RJ-45 switching ports and is built for Fibre Channel SAN connectivity using SFP+ ports.

Q: How is the switch managed?
A: It is a managed switch with SNMP v1 and v3, SMI-S, SSH and CLI management, and supports QoS.
