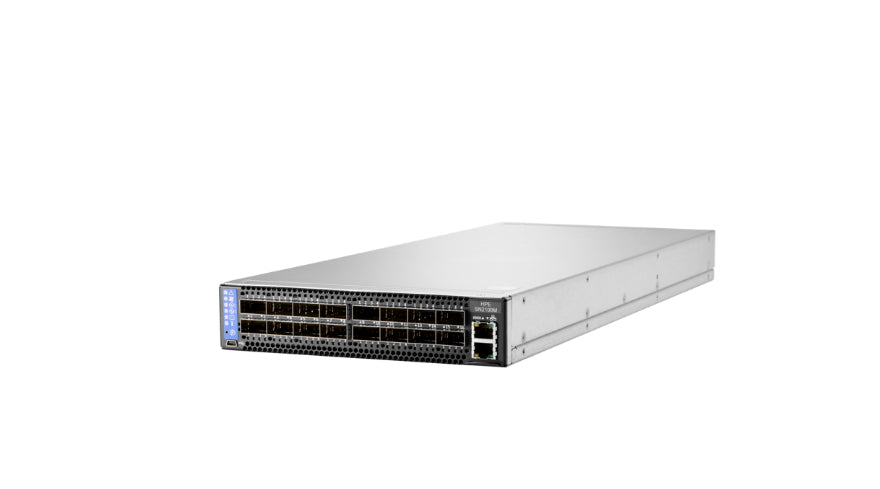

HPE Q2F24A | StoreFabric SN2100M 8-Port 100G QSFP28 Half Width Switch
SKU:Q2F24A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The StoreFabric SN2100M is a half-width, 1U data-centre Ethernet switch built on the NVIDIA Spectrum platform. It suits top-of-rack storage networks, hyper-converged infrastructure, flash-storage fabrics and leaf/spine data-centre designs, and two units can be mounted side by side in a single 1U space.
This SKU provides 8 x 100GbE QSFP28 ports with support for 1, 10, 25, 40, 50 and 100 GbE speeds, delivering 3.2 Tbps of aggregate switching bandwidth with port-to-port cut-through latency of about 300 ns. It is a Layer 2 and Layer 3 managed, non-PoE switch with no dedicated uplink ports, and typical power draw is under 95 W. Airflow runs power to connector. It ships with 8 ports enabled, and a further 8 ports can be unlocked with the HPE SN2100M 100GbE 8-port Upgrade E-LTU (Q2M94AAE).
The QSFP28 ports accept 100GbE optics and DACs, as well as breakout cables for 10, 25, 40 and 50 GbE connections.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Wire-rate forwarding with zero packet loss across all frame sizes at 100 GbE
- Layer 2 and Layer 3 forwarding
- Ultra-low latency of under 300 ns, suited to flash storage and software-defined data centres
- Low power draw of under 95 W, reducing heat and operating cost
- Two half-width units can be mounted side by side in 1U for higher density
- Port breakout support for 10/25/40/50 GbE
- Supports RoCE and VXLAN for storage and virtualised workloads
- Additional 8 ports can be unlocked with an upgrade licence
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 8 x QSFP28 (100GbE)
- Supported port speeds: 1, 10, 25, 40, 50, 100 GbE
- Aggregate switching bandwidth: 3.2 Tbps
- Cut-through latency: 300 ns port-to-port
- Packet buffer: 16 MB
- Form factor: 1U half-width, rack-mountable
- Airflow: Power to connector
- Power consumption: Less than 95 W (typical)
- PoE: None
- Uplink ports: None
- Stack ports: None
- Redundant power supply supported: Yes
- Encryption capability: None
- Protocol supported: Ethernet
- Management protocols: SNMP, Telnet, SSH, CLI
- Port expansion: 8 additional ports via upgrade E-LTU
FAQs
Q: Can I add more ports to this switch?
A: Yes. This SKU ships with 8 x 100GbE ports enabled, and a further 8 ports can be unlocked with the separate HPE SN2100M 100GbE 8-port Upgrade E-LTU (Q2M94AAE).
Q: Does it support PoE?
A: No. The SN2100M is a non-PoE switch. Typical power draw is under 95 W, and the switch supports redundant power supplies.
Q: What can I connect to the QSFP28 ports?
A: The ports accept 100GbE optics and DACs, plus breakout cables for 10, 25, 40 and 50 GbE connections.
Q: Can two switches share one rack unit?
A: Yes. HPE lists a rack-mount kit that holds two half-width SN2100M units side by side in a single 1U space.
Q: Does it have dedicated uplink or stacking ports?
A: No. All 8 ports are 100GbE QSFP28, and there are no dedicated uplink or stack ports.
