HPE

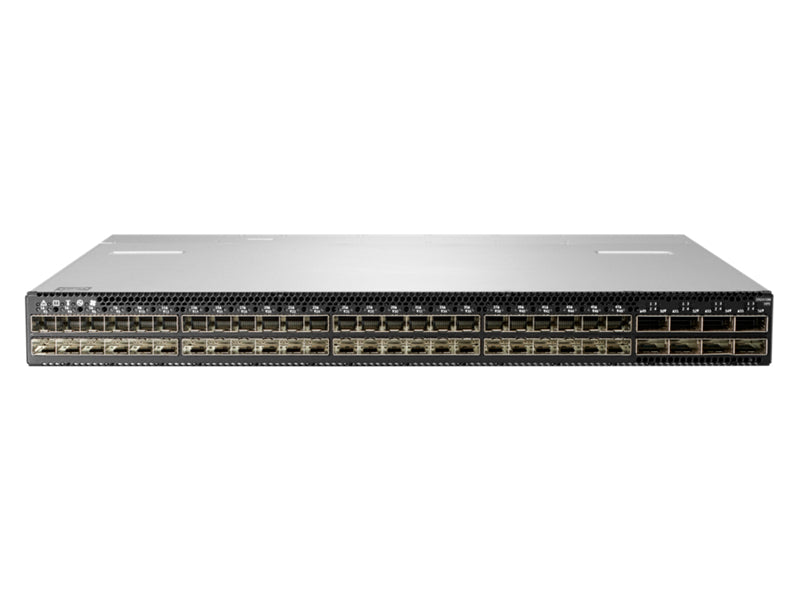

HPE Q2F22A | SN2410M 48x25G SFP28 + 8x100G QSFP28, Power-to-Connector Airflow

SKU:Q2F22A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The HPE SN2410M is a 1U top-of-rack Layer 3 Ethernet data centre switch from the HPE M-series range. It suits leaf positions in spine and leaf designs and serves server and storage networks, including flash and all-flash storage fabrics, in small to large enterprises.

The front panel provides 48 x 25GbE SFP28 ports, which also run at 1 and 10GbE, plus 8 x 100GbE QSFP28 ports that support 40 and 100GbE and break out into four 10 or 25GbE links. Switching capacity is 4 Tb/s with 2.97 Bpps processing and 300 ns port-to-port cut-through latency. This SKU uses power-to-connector airflow, the opposite direction to the connector-to-power variant, and has two hot-swappable AC power supplies in a 1+1 redundant arrangement. It ships with the base licence covering 24 active ports. The 24-port upgrade E-LTU enables the remaining 24 ports.

The switch runs the ONYX network operating system with ONIE support. SFP28 ports accept 1, 10 and 25GbE optics and DACs, while the QSFP28 ports accept 40 and 100GbE optics and breakout cables.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Ultra-low latency under 300 ns with zero packet loss at line rate
- QSFP28 ports break out into four 10 or 25GbE links
- Data Center Bridging support: PFC, ETS, DCBX and ECN
- Virtualisation and storage support: VTEP, tagged VLANs and trunking, MLAG
- IPv4 static routing and IPv6 ready
- Virtual routing and forwarding (VRF)
- What Just Happened (WJH) telemetry
- Hot-swappable power supplies and fan trays
- Low power design, under 6 W per port

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 25GbE SFP28 (1/10/25GbE capable)
- Uplink ports: 8 x 100GbE QSFP28 (40/100GbE, breakout to 4 x 10/25GbE)
- Switching capacity: 4 Tb/s
- Processing capacity: 2.97 Bpps
- Forwarding: cut-through
- Latency: 300 ns port-to-port
- Switch layer: Layer 3 managed
- Network OS: ONYX and ONIE
- System memory: 8 GB
- SSD: 32 GB
- Form factor: 1U rack-mount
- Airflow: power-to-connector (back to front)
- Power supplies: 2 x hot-swappable AC, 1+1 redundant
- Power input: 100-264 VAC, 50-60 Hz
- Typical power consumption: 165 W with passive cables
- PoE: none
- Fans: 4 hot-swappable fan trays, N+1 redundant
- Dimensions (H x W x D): 43.8 x 438 x 436 mm
- Weight: 8.52 kg
- Management port: 100 Mb/s to 1 Gb/s

FAQs

Q: Does this switch need a licence to use all 48 ports?
A: It ships with the base licence covering 24 active ports. The HPE SN2410M 25GbE 24-port Upgrade E-LTU (S0N97AAE or Q6J40AAE) enables the remaining 24 ports.

Q: What airflow direction does this model use?
A: Q2F22A uses power-to-connector airflow, also described as back to front. The connector-to-power airflow version is a separate SKU, R0P73A.

Q: What power does it need?
A: It has two hot-swappable AC power supplies in a 1+1 redundant arrangement, accepting 100-264 VAC at 50-60 Hz. Typical draw is 165 W with passive cables. It has no PoE.

Q: What speeds do the ports support?
A: The 48 SFP28 ports run at 1, 10 and 25GbE. The 8 QSFP28 ports run at 40 and 100GbE and can break out into four 10 or 25GbE links using breakout cables.

Q: What network operating system does it run?
A: It runs ONYX with ONIE support for network OS installation.
