HPE

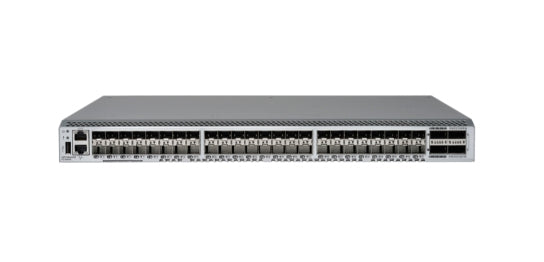

HPE Q0U58C | SN6600B 48/24-Port 32Gb FC Switch, 24x SFP+, No PP+

SKU:Q0U58C

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The HPE SN6600B is a 1U, NVMe-ready 32Gb Fibre Channel switch from the B-series StoreFabric range, built for midrange to large enterprise SANs. It suits high-density server virtualisation, cloud infrastructure and flash or NVMe-over-FC storage, and supports data centre consolidation as port counts grow.

This SKU is the 48-port chassis with 24 ports licensed through Ports on Demand and supplied with 24 x 32Gb short wave SFP+ optics. Ports auto-sense 4/8/16/32 Gbps, aggregate bandwidth is 2 Tbps and latency is 700 ns for locally switched ports. It can scale up to 64 ports, using 12-port SFP+ increments plus one 4-port QSFP increment. Dual hot-swappable redundant power supplies with integrated fans provide resilience, with back-to-front airflow.

This model does not include the Power Pack+ bundle, so Fabric Vision, Extended Fabric and ISL Trunking are not part of it. Base Fabric OS features such as Web Tools, Advanced Zoning, Adaptive Networking, in-flight encryption and compression are included. It uses HPE B-series branded SFP+ and QSFP transceivers and is managed with HPE SANnav, Network Advisor or Web Tools.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- NVMe-ready 32Gb Fibre Channel for flash-based storage and virtualised environments
- Ports on Demand scaling from 24 to 64 ports
- In-flight encryption and compression included with Fabric OS 8.2.0 or later
- IO Insight integrated network sensors for storage IO monitoring
- Hardware-enforced zoning, frame filtering, Adaptive Networking and Virtual Fabrics
- Redundant hot-swappable power supplies and fans with non-disruptive firmware upgrades
- ClearLink diagnostics for optics and cables

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Fibre Channel port speed: 32 Gbps (auto-sensing 4/8/16/32 Gbps)
- Chassis: 48 SFP+ ports plus 4 QSFP ports
- Licensed ports: 24 active via Ports on Demand, scalable to 64
- Included optics: 24 x 32Gb short wave SFP+
- Aggregate bandwidth: 2 Tbps
- Latency: 700 ns locally switched
- Port types: D_Port, E_Port, EX_Port, F_Port, AE_Port
- Access Gateway mode: F_Port and NPIV-enabled N_Port
- Frame buffers: 15,360 dynamically allocated
- Maximum frame size: 2112-byte payload
- Classes of service: Class 2, Class 3, Class F
- Fabric scalability: maximum 239 switches
- Management access: 10/100/1000 Ethernet RJ-45, serial RJ-45, USB, in-band over FC
- Management software: Web Tools, CLI, REST API, SNMP v1/v3, SMI-S, HPE SANnav, Network Advisor
- Security: DH-CHAP, FCAP, RADIUS, TACACS+, LDAP, RBAC, SSH v2, TLS v1.2/v1.3, secure boot
- Power supplies: dual hot-swappable redundant with integrated fans
- AC input: 90 to 264 V, 3.5 A, 47 to 63 Hz
- Power consumption: 204 W fully populated, 85 W empty chassis
- Dimensions (W x H x D): 440 x 43.9 x 355.6 mm
- Weight: 7.73 kg with two power supplies, without transceivers
- Airflow: back-to-front
- Operating temperature: 0 to 40 C, 10% to 85% humidity non-condensing
- Mounting: 1U rack-mountable

FAQs

Q: Does this SKU include the Power Pack+ licence bundle?
A: No. This model has 24 ports licensed through Ports on Demand and does not include Power Pack+ (Fabric Vision, Extended Fabric and ISL Trunking). Base Fabric OS features are included.

Q: How many ports can this switch be expanded to?
A: The chassis has 48 SFP+ ports and 4 QSFP ports. It ships with 24 licensed and can scale to 64 ports using optional 12-port SFP+ and 4-port QSFP Ports on Demand licences.

Q: What optics does it use?
A: It uses HPE B-series branded SFP+ (32/16/10/8 Gbps) and QSFP (128 Gbps) transceivers. This SKU is paired with 24 x 32Gb short wave SFP+ optics.

Q: Does it need a separate licence for encryption or compression?
A: No. In-flight encryption and compression are included in the base Fabric OS features and need no extra licence.

Q: What power does it require?
A: It has dual hot-swappable redundant AC power supplies with a 90 to 264 V input. Consumption is 204 W fully populated and 85 W for an empty chassis. It does not provide PoE.

Q: How is it managed?
A: Through Web Tools, CLI, REST API, SNMP, SMI-S, HPE SANnav or Network Advisor. SANnav is a separate term licence.
