HPE JH297A | MSR954 Router, 1G SFP, 2.4GHz 802.11n Wi-Fi, No LTE
SKU:JH297A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

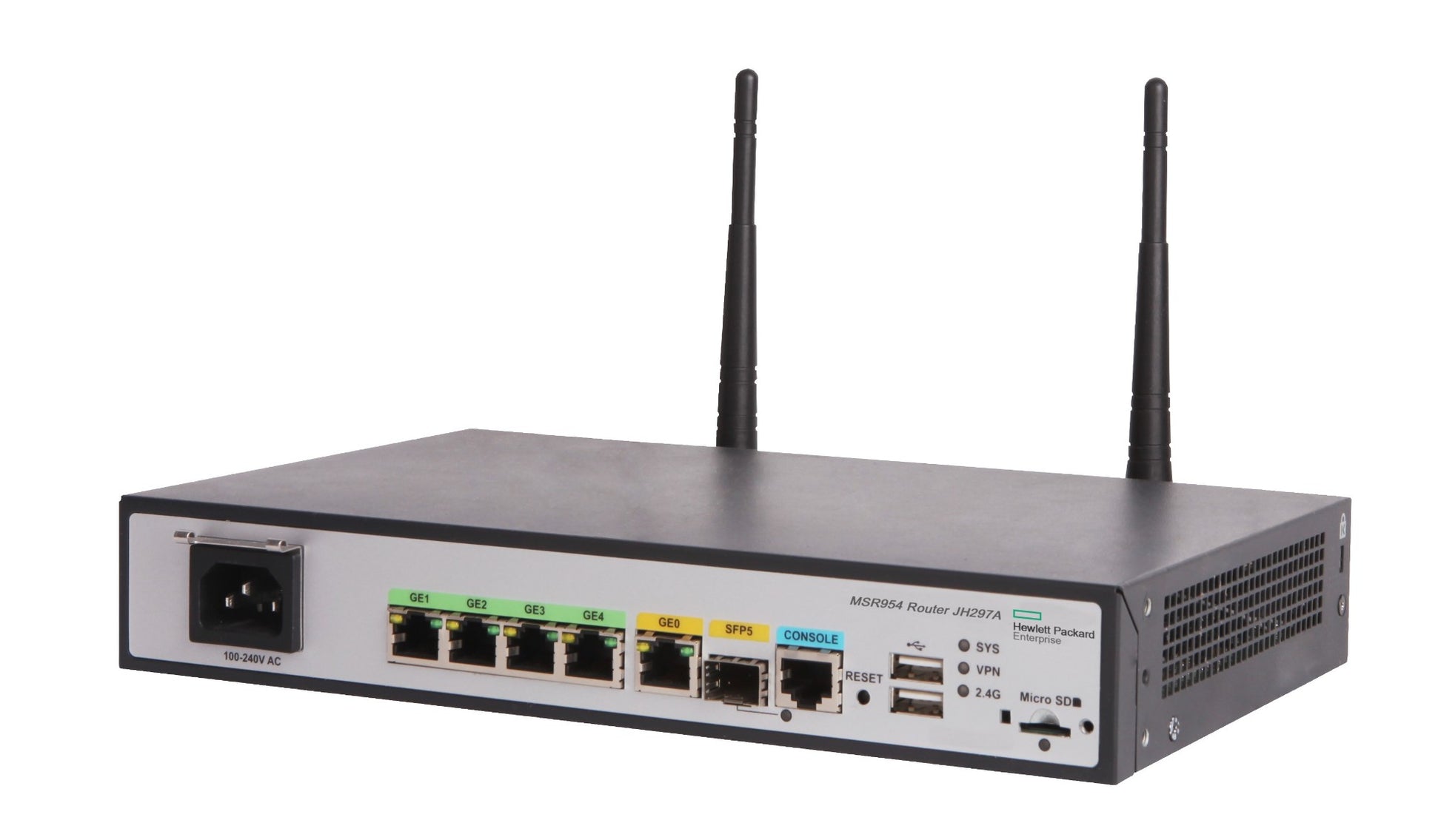

The MSR954 is a compact fixed-port small-branch router from the HPE FlexNetwork MSR95x range. It combines routing, switching, security, voice and built-in 2.4 GHz 802.11b/g/n Wi-Fi in one box running Comware v7, which suits small branch and remote-office sites that want fibre or copper WAN uplinks and zero-touch provisioning. This worldwide (WW) model has no integrated LTE modem.
The port layout is one fixed Gigabit Ethernet SFP WAN port, one RJ-45 10/100/1000 WAN port and four RJ-45 10/100/1000 LAN ports, plus a console port and a USB 2.0 port. Throughput is up to 300 Kpps, and the routing table holds 10000 IPv4 and 5000 IPv6 entries. Power input is 100-264 VAC with a maximum draw of 22 W. The advanced features need no additional licensing, as Comware v7 software is included.
The SFP port accepts 1G SFP transceivers, with the HPE X121 1G SFP LC SX and LX listed as accessories. An optional rack mount kit, JH316A, is available, and the router can be managed with HPE Intelligent Management Center (IMC).
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Routing, switching, wireless, security and voice integrated in one fixed-port box
- Comware v7 with IPS and high encryption
- Zero Touch Deployment (ZTD) and Auto Discovery VPN (ADVPN)
- OpenFlow and CWMP (CPE WAN Management Protocol) support
- IPv4 and IPv6 routing, MPLS, QoS, NAT and VPN services
- Dual Gigabit WAN ports supporting fibre and copper connections
- Manageable with HPE Intelligent Management Center (IMC)
- Advanced features with no additional licensing
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product number: JH297A
- WAN ports: 1x fixed Gigabit Ethernet SFP, 1x RJ-45 10/100/1000
- LAN ports: 4x RJ-45 10/100/1000
- Management ports: 1x console, 1x USB 2.0
- Wireless: embedded 802.11b/g/n (2.4 GHz), worldwide version
- Cellular: no integrated LTE
- Operating system: Comware v7
- Throughput: up to 300 Kpps
- Routing table size: 10000 entries (IPv4), 5000 entries (IPv6)
- Input voltage: 100-264 VAC
- Power consumption: 22 W maximum
- Operating temperature: 0 to 45 C (32 to 113 F)
- Operating relative humidity: 5 to 92% (noncondensing)
- Altitude: up to 1.5 km (5,000 ft)
- Dimensions: 26.6 x 16.1 x 4.36 cm
- Weight: 1 kg (2.2 lb)
FAQs
Q: Does the MSR954 need a software licence?
A: No. The advanced features need no additional licensing, and Comware v7 software is included.
Q: How does JH297A differ from the LTE models in this range?
A: JH297A has no integrated LTE modem and relies on its wired WAN ports, one SFP and one copper Gigabit port. The LTE variants in the MSR954 family are JH298A and JH299A.
Q: Which SFP optics does it work with?
A: The fixed SFP port takes 1G SFP transceivers, such as the HPE X121 1G SFP LC SX and LX.
Q: What power does it need?
A: It runs from a 100-264 VAC input and draws a maximum of 22 W.
Q: Can it be rack mounted?
A: Yes, with the optional HPE MSR954 Chassis Rack Mount Kit, JH316A.
Q: How is it managed?
A: It can be managed with HPE Intelligent Management Center (IMC), and it also supports CWMP and Zero Touch Deployment.
