HPE

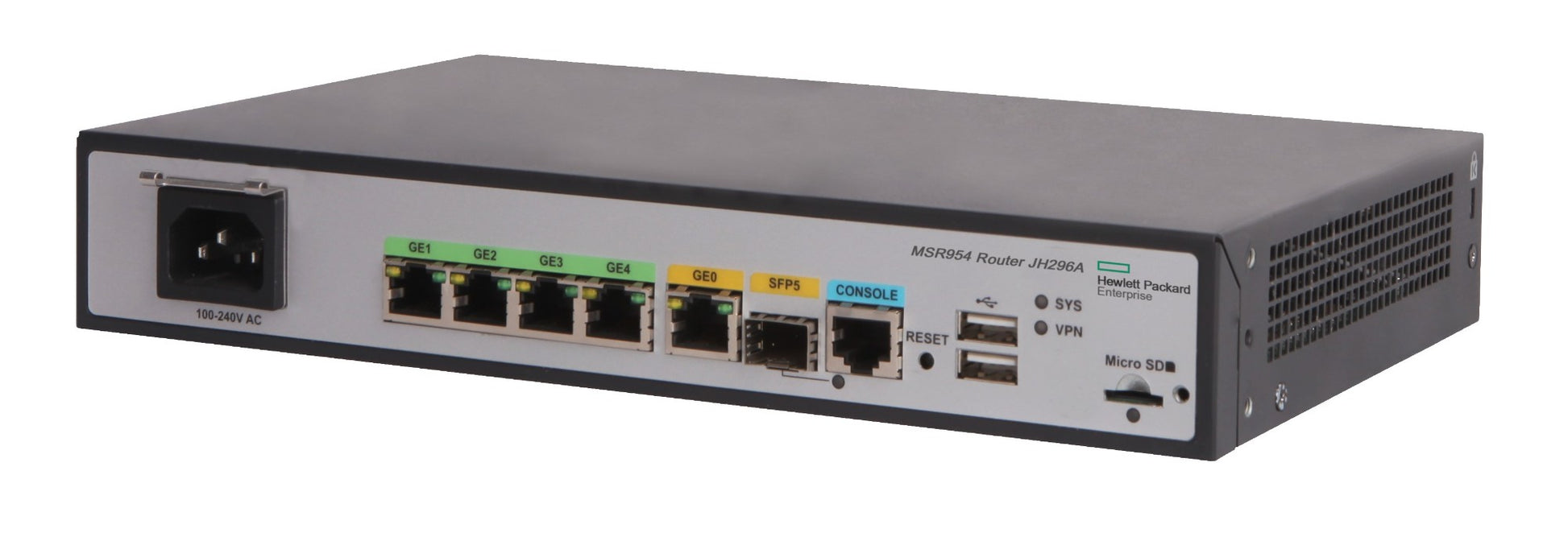

HPE JH296A | MSR954 Router, 1x SFP + 1x GE WAN, 4x GE LAN, No WLAN

SKU:JH296A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The HPE MSR954 is a compact Comware v7 branch router from the HPE MSR95x series, built for small branch and remote offices that need routing, switching and security in a single desktop box. This base model has no WLAN or LTE, so it suits sites that connect over fixed fibre or copper WAN links.

Connectivity is one Gigabit Ethernet SFP WAN port, one RJ-45 10/100/1000 WAN port and four RJ-45 10/100/1000 LAN ports. It also has two USB 2.0 ports, an RJ-45 console port and a Micro SD card slot. The unit carries 1 GB of DDR3 memory and 256 MB of flash, delivers forwarding performance of up to 300 Kpps and draws a maximum of 15 W from a 100 to 240 VAC input. There is no PoE. The base feature set is provided with no additional licensing.

The fixed SFP port takes one SFP transceiver, and the optional JH316A chassis rack mount kit allows rack installation. Related MSR95x models add WLAN or LTE, including the JH297A, JH298A, JH299A and JH373A.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Converged routing, switching, security and SIP in a single box
- Comware v7 OS with IPv4/IPv6 routing, MPLS, QoS, NAT and VPN services
- Embedded encryption, stateful firewall, NAT and ADVPN security features
- OpenFlow and CWMP (CPE WAN Management Protocol) support
- Zero-touch provisioning and single-pane-of-glass management
- Dual gigabit WAN with fibre (SFP) and copper options

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- WAN ports: 1 x Gigabit Ethernet SFP (SFP5) and 1 x RJ-45 10/100/1000 (GE0)
- LAN ports: 4 x RJ-45 10/100/1000 (GE1-GE4)
- USB: 2 x USB 2.0
- Console port: 1 x RJ-45
- Micro SD card slot: supported
- Memory: 1 GB DDR3
- Flash: 256 MB
- Operating system: Comware v7 (CWv7)
- Forwarding performance: up to 300 Kpps
- AC input voltage: 100 to 240 VAC, 50/60 Hz
- Maximum AC power: 15 W
- PoE: not supported
- Operating temperature: 0 to 45 C (32 to 113 F)
- Dimensions (H x W x D): 43.6 x 266 x 161 mm (1.72 x 10.47 x 6.34 in), excluding rubber feet and mounting brackets
- Weight: approximately 1 kg (2.20 lb)
- Form factor: desktop
- Regulatory model number: BJNGA-BB0036
- Rack mounting: optional JH316A chassis rack mount kit

FAQs

Q: Does the JH296A need an additional licence?
A: No additional licensing is stated for the base feature set of the MSR95x series, which provides integrated routing, switching, security and SIP.

Q: How is this model powered?
A: It uses an internal AC power supply with a 100 to 240 VAC, 50/60 Hz input and a maximum draw of 15 W. It does not provide PoE.

Q: What does the SFP port accept?
A: The fixed Gigabit Ethernet SFP WAN port takes one SFP transceiver, giving you a fibre WAN option alongside the RJ-45 WAN port.

Q: Can this router be rack mounted?
A: It is a desktop unit, and the optional HPE MSR954 chassis rack mount kit JH316A is available for rack installation.

Q: How does the JH296A differ from the other MSR954 models?
A: The JH296A is the base model with no WLAN or LTE. The JH297A adds WLAN, the JH298A and JH299A add WLAN with LTE, and the JH373A offers a serial port with dual 4G LTE.
