HPE JG734A | FlexNetwork MSR2004-24 Router, 24-Port GbE, AC Power

SKU:JG734A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

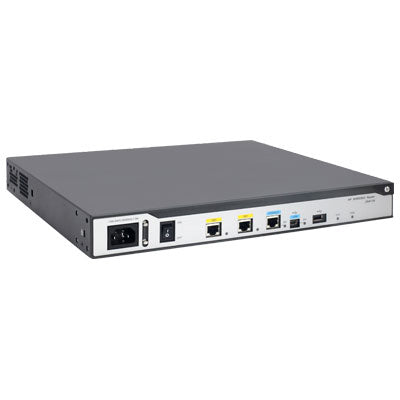

The FlexNetwork MSR2004-24 is a 1U branch router from the HPE FlexNetwork MSR2000 range, built for small to medium branch offices that need WAN access, switching, security and voice in a single chassis. It runs Comware v7 and is managed through SNMP, RMON and HPE IMC, with zero-touch provisioning support.

This variant provides 24 fixed 10/100/1000 RJ-45 switch ports, three autosensing Gigabit RJ-45 WAN ports and one SFP port. Four SIC module slots allow WAN, voice and 3G or LTE-type expansion modules to be added, and a USB 2.0 port supports a 3G modem or USB disk. Hardware-assisted encryption delivers up to 400 Mbps of IPSec throughput, and the router also provides firewall, NAT, VPN and SIP voice features. It carries 1GB of DDR3 SDRAM and 256MB of flash on an 800 MHz processor.

The integrated AC power supply accepts 100-240 VAC and draws 54 W at maximum. It differs from the MSR2004-48 JG735A, which has 48 switch ports and a selectable power supply. The base routing, switching, security and SIP features do not require additional licensing. This is a Comware router rather than an SD-WAN appliance, and LTE connectivity is only available through optional modules or a USB modem.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Converged routing, switching, security, voice and mobility in one platform
- Embedded hardware-based encryption, firewall, NAT and VPN
- Integrated SIP voice features with no additional licensing
- Modular SIC slots for WAN, voice and 3G/LTE-type expansion modules
- Zero-touch provisioning and management via HPE IMC
- Comware v7 operating system with SNMP and RMON monitoring

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Fixed LAN ports: 24 x 10/100/1000 RJ-45
- WAN ports: 3 x RJ-45 autosensing 10/100/1000
- SFP ports: 1
- SIC module slots: 4 (0 DSIC)
- USB: 1 x USB 2.0 port for 3G modem and USB disk
- Console: 1 x CON/AUX port and 1 x USB console port
- Memory: 1GB DDR3 SDRAM
- Flash memory: 256 MB
- Processor: 1 x 800 MHz
- IPSec encryption throughput: 400 Mbps
- Power supply: AC, 100-240 VAC
- Power consumption: 54 W max
- Heat dissipation: 170 BTU/hr
- Dimensions (H x W x D): 1.7 x 17.3 x 14.2 in (approx. 44 x 440 x 360 mm)
- Weight: 15.1 lb (6.85 kg)
- Form factor: 1U rack-mountable / desktop
- Management: SNMP v1/v2, RMON, HPE IMC, Comware v7

FAQs

Q: Does the MSR2004-24 need an additional licence for routing and security features?
A: No. The base routing, switching, security and SIP voice features do not require additional licensing. It runs Comware and is not an SD-WAN appliance.

Q: How is the router powered, and does it support PoE?
A: It has an integrated AC power supply for 100-240 VAC input with a maximum draw of 54 W. It does not provide PoE.

Q: Can I add LTE connectivity?
A: LTE is not built in. It can be added through optional SIC modules or a USB modem connected to the USB 2.0 port.

Q: What expansion options does it have?
A: There are four SIC module slots for WAN, voice and cellular-type modules, and one SFP port for a Gigabit SFP transceiver.

Q: How does it differ from the MSR2004-48 JG735A?
A: This model has 24 Gigabit switch ports and a fixed AC power supply. The MSR2004-48 JG735A has 48 ports and a selectable power supply.
