Cisco

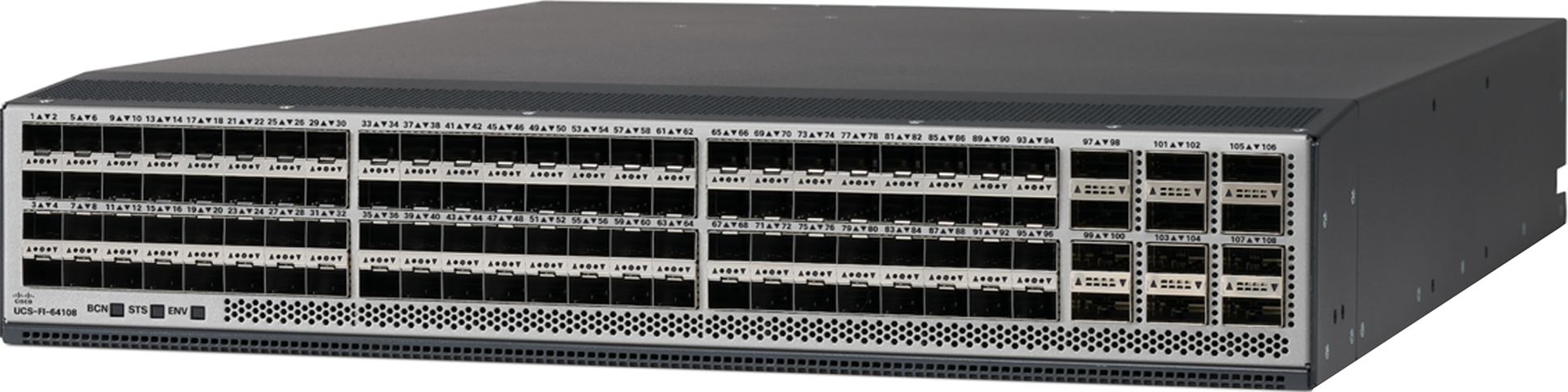

Cisco UCSX-FI-64108-U | UCS 6400 108-Port 10/25G Fabric Interconnect, UCS Manager

SKU:UCSX-FI-64108-U

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCS 6400 Series 64108 is a 2RU top-of-rack fabric interconnect that forms the network and management backbone of a Cisco UCS domain. It delivers line-rate, low-latency, lossless 10/25/40/100 Gigabit Ethernet, FCoE and Fibre Channel connectivity for UCS blade chassis, rack servers and storage servers in data centres.

The switch provides 108 fixed ports: 96 x 10/25G SFP28 and 12 x 40/100G QSFP28, with up to 16 unified ports (ports 1-16) that support 8/16/32G Fibre Channel. Switching throughput is 7.42 Tbps. This standalone -U model is managed by UCS Manager and includes 36 x 10/25G and 4 x 40/100G port licences, so additional ports need further port licences as the domain grows. It is a unit without power supplies, with two hot-swappable AC or DC PSUs used in a redundant pair.

It works with the SFP28 and QSFP28 optics and cables listed for the 6400 Series, and breakout cables are supported on ports 97-108 for connection to Nexus 9K switches. The fabric extender architecture scales to 20 blade chassis.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cut-through architecture with line-rate, low-latency 10/25/40/100 GbE, FCoE and Fibre Channel
- Unified fabric consolidates LAN and SAN traffic, reducing NICs, HBAs, switches and cabling
- Managed by Cisco UCS Manager as a single highly available management domain
- Fabric extender architecture scales to 20 blade chassis
- Latency under 1 microsecond
- Lossless fabric with Priority-based Flow Control (PFC) and consistent QoS
- Redundant hot-swappable fans and power supplies with front-to-back cooling
- Port-based licensing supports a pay-as-you-grow model

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2RU
- Ports: 96 x 10/25-Gbps SFP28 and 12 x 40/100-Gbps QSFP28 (108 fixed ports)
- Unified ports: up to 16 (ports 1-16), 8/16/32-Gbps Fibre Channel
- 1-Gbps Ethernet ports: up to 8 (ports 89-96)
- 40/100-Gbps Ethernet ports: 12 (ports 97-108)
- Switching throughput: 7.42 Tbps
- Downlink speeds: 1/10/25-Gbps Ethernet/FCoE; 8/16/32-Gbps Fibre Channel
- Included port licences: 36 x 10/25-Gbps and 4 x 40/100-Gbps
- CPU: 6 cores
- System memory: 64 GB
- Management ports: L1, L2 and RJ-45
- USB ports: 1
- Fan modules: 2+1 (3 fans), hot-swappable
- Power supplies: up to 2 identical AC or DC, hot-swappable
- Typical operating power: 404 W
- Maximum power: 1200 W (AC), 930 W (DC)
- Airflow: front (PSU/fan side) to back (port-side exhaust)
- Dimensions (H x W x D): 8.33 x 44.25 x 58.29 cm
- Weight: 16.27 kg with two power supplies and fans
- Operating temperature: 0 to 40 C
- Humidity: 5 to 95%
- RoHS compliant: Yes

FAQs

Q: How is this SKU licensed?
A: It is the standalone -U model and includes 36 x 10/25-Gbps and 4 x 40/100-Gbps port licences. Additional ports need UCS-L-6400-25G, UCS-L-6400-25GC or UCS-L-6400-100G licences. It is managed with UCS Manager.

Q: What power supplies does it use?
A: It takes two hot-swappable PSUs, AC or DC, which are identical pairs. The AC option is UCS-PSU-64108-AC and a DC PSU is also available. Typical operating power is 404 W, with a maximum of 1200 W on AC and 930 W on DC.

Q: What does it connect to?
A: It connects UCS B-Series blades through 5108 chassis, UCS-managed C-Series rack servers and S-Series storage servers. It supports Cisco SFP28 and QSFP28 optics and cables, and breakout cables on ports 97-108 for connection to Nexus 9K.

Q: How do the SFP28 and QSFP28 ports operate?
A: The SFP28 ports operate in 10/25G mode and the QSFP28 ports operate in 40/100G mode. Ports 1-16 are unified ports that can run 8/16/32G Fibre Channel.

Q: How many blade chassis can it scale to?
A: The fabric extender architecture scales to 20 blade chassis within a single UCS domain managed through UCS Manager.
