Cisco UCSX-FI-64108-D-U | UCS 6400 108-Port 10/25G SFP28 Fabric Interconnect, UCS Manager
SKU:UCSX-FI-64108-D-U
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

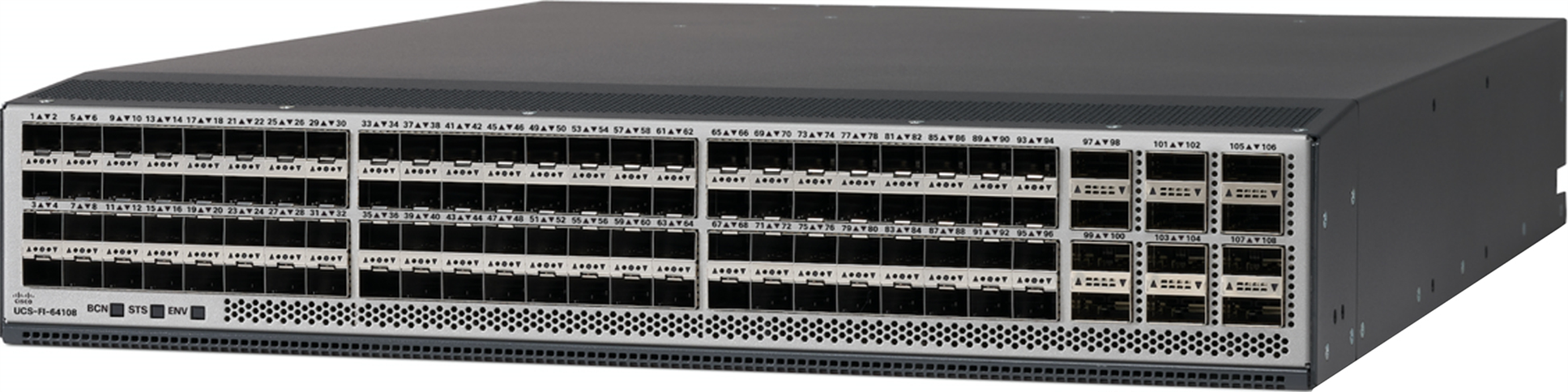

The UCS 64108 is a 2RU top-of-rack fabric interconnect from the Cisco UCS 6400 Series. It carries Ethernet, FCoE and native Fibre Channel traffic on one unified fabric and runs Cisco UCS Manager, so it suits UCS domains where blade and rack servers need consolidated LAN and SAN connectivity.
The chassis provides 108 fixed ports: 96 x 10/25G SFP28 and 12 x 40/100G QSFP28 uplinks. Ports 1-16 are unified ports that can run as 10/25G Ethernet or 8/16/32G Fibre Channel, and ports 89-96 also accept 1G SFPs. Switching throughput is 7.42 Tbps with 2.8 billion packets per second of Layer 2 forwarding. This SKU is the standalone UCS Manager model and includes 36 x 10/25G and 4 x 40/100G port licences. Additional ports use UCS-L-6400-25G, UCS-L-6400-25GC or UCS-L-6400-100G licences.
The system accepts SFP28 and QSFP28 optics and cables, and connects to UCS 5108 chassis through UCS 2200/2408 fabric extenders. Two identical power supplies, either UCS-PSU-64108-AC or UCS-PSU-64108-DC, are required to run the unit.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Unified fabric with FCoE consolidates LAN and SAN traffic, reducing NICs, HBAs, switches and cabling
- Hosts and runs Cisco UCS Manager in a highly available active/passive configuration
- Cut-through, low-latency architecture (under 1 microsecond) with a lossless fabric
- Unified ports configurable as 10/25G Ethernet or 8/16/32G Fibre Channel
- Priority-based Flow Control (802.1Qbb), Enhanced Transmission Selection (802.1Qaz) and DCBX
- Fabric extender architecture scales to 20 blade chassis
- Hot-swappable power supplies and fan modules with 1+1 power and N+1 fan redundancy
- Port-based licensing supports a pay-as-you-grow model
- Breakout cables supported on uplink ports 97-108 for connection to Nexus 9K switches
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 2RU
- Fixed ports: 96 x 10/25G SFP28 and 12 x 40/100G QSFP28
- Unified ports: 16 (ports 1-16), 10/25G Ethernet or 8/16/32G Fibre Channel
- 1G Ethernet ports: up to 8 (ports 89-96)
- 40/100G Ethernet ports: up to 12 (ports 97-108)
- Downlink speeds: 1/10/25G Ethernet/FCoE, 8/16/32G Fibre Channel
- Throughput: 7.42 Tbps
- Layer 2 forwarding: 2.8 billion packets per second
- MAC address table: 32,000 entries
- CPU: 6 cores
- System memory: 64 GB
- Management ports: L1, L2, RJ-45 and console
- USB ports: 1
- Fan modules: 2+1 (3 fans)
- Power supplies: two identical AC or DC units, ordered separately
- Typical operating power: 404 W
- Maximum power: 1200 W (AC), 930 W (DC)
- Airflow: front (PSU/fan side) to back (port side)
- Dimensions (H x W x D): 8.33 x 44.25 x 58.29 cm
- Weight (with two PSUs, expansion modules and fans): 16.27 kg
- Operating temperature: 0 to 40 C
- Jumbo frames: up to 9216 bytes
- Hardware queues: 16 per port
- Port licences included: 36 x 10/25G and 4 x 40/100G
FAQs
Q: Which licences are included with this SKU?
A: It includes 36 x 10/25G and 4 x 40/100G port licences. Further ports are enabled with UCS-L-6400-25G (10/25G and FC), UCS-L-6400-25GC (C-Direct only) or UCS-L-6400-100G (40/100G) licences.
Q: What power supplies does it need?
A: It runs on two identical power supplies, either UCS-PSU-64108-AC (1200 W, 200 VAC) or UCS-PSU-64108-DC (930 W, -48 VDC). Typical draw is 404 W.
Q: Which ports can run Fibre Channel?
A: Unified ports 1-16 can be set to 10/25G Ethernet or 8/16/32G Fibre Channel, using FC SFP+ optics for the Fibre Channel mode.
Q: What does it connect to downstream?
A: It connects to UCS 5108 chassis through UCS 2200/2408 fabric extenders, and supports direct connection of rack servers at 10/25G using VIC 1455 or 1457 adapters.
Q: How does this SKU differ from other 64108 variants?
A: This is the standalone UCS Manager model without power supplies, with 36 x 10/25G and 4 x 40/100G port licences included.
