Cisco

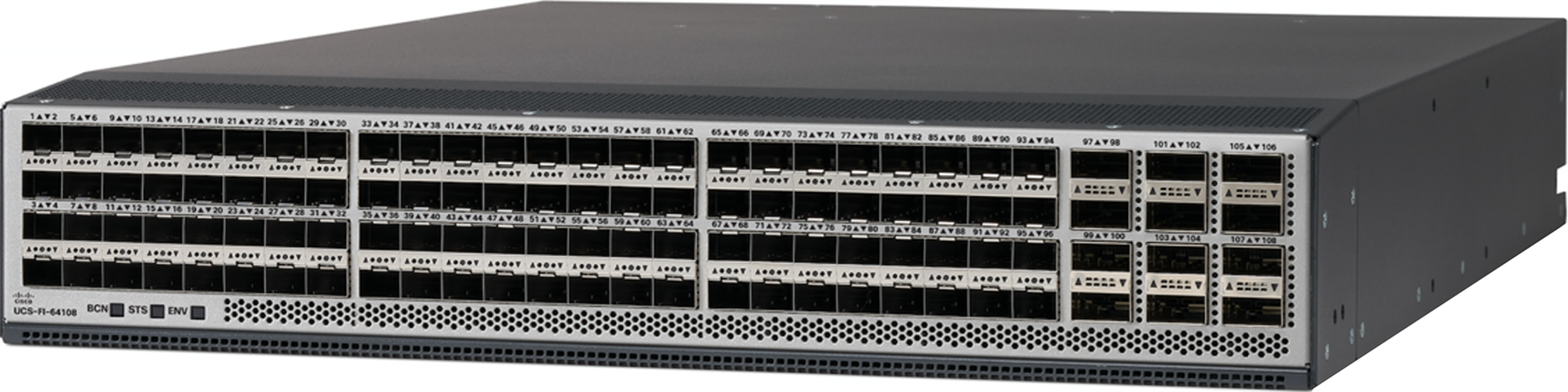

Cisco UCS-SP-FI64108 | UCS 6400 108-Port 10/25G SFP28 Fabric Interconnect, 2RU

SKU:UCS-SP-FI64108

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCS 64108 is a 2RU top-of-rack fabric interconnect from the Cisco UCS 6400 Series. It forms the core of a Cisco UCS domain, giving blade, rack and storage servers LAN and SAN connectivity through a single management domain in data centre and virtualised environments.

There are 108 fixed ports: 96 x 10/25G SFP28 ports and 12 x 40/100G QSFP28 uplink ports. Ports 1 to 16 are unified ports that can be configured as 10/25G Ethernet or 8/16/32G Fibre Channel, so the unit can connect directly to native Fibre Channel SANs. Switching throughput is 7.42 Tbps with a Layer 2 forwarding rate of 2.8 billion packets per second. It carries 64 GB of system memory and a 6-core CPU, and the fixed ports include breakout cable support on the uplink ports.

UCS Manager runs on the fabric interconnect in a highly available active/passive cluster. It works with UCS 5108 chassis and 2408 fabric extenders, B-Series blades, managed C-Series rack servers and S-Series storage servers. Power comes from two hot-swappable AC or DC supplies in 1+1 redundancy, with three fan modules for front-to-back cooling. This is a non-PoE device.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Line-rate, low-latency, lossless 10/25/40/100 Gigabit Ethernet, FCoE and Fibre Channel
- Cut-through architecture with latency under 1 microsecond
- Unified fabric consolidating LAN and SAN traffic to reduce NICs, HBAs, switches and cabling
- Unified ports connect directly to native Fibre Channel SANs
- Hosts and runs Cisco UCS Manager in a highly available active/passive cluster
- Fabric extender architecture scaling to 20 blade chassis
- Priority-based Flow Control (802.1Qbb) and Enhanced Transmission Selection (802.1Qaz)
- Redundant hot-swappable fans and power supplies

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2RU
- Fixed ports: 108 (96 x 10/25G SFP28 + 12 x 40/100G QSFP28)
- Unified ports: 16 (ports 1-16), configurable as 10/25G Ethernet or 8/16/32G Fibre Channel
- 1G Ethernet ports: up to 8 (ports 89-96)
- 40/100G Ethernet ports: 12 (ports 97-108)
- Switching throughput: 7.42 Tbps
- Layer 2 forwarding rate: 2.8 billion packets per second
- MAC address table entries: 32,000
- Jumbo frames: up to 9216 bytes
- CPU: 6 cores
- System memory: 64 GB
- Management ports: L1, L2 and RJ-45
- USB ports: 1
- Power supplies: two hot-swappable AC or DC, 1+1 redundancy
- Typical operating power: 404 W
- Maximum power: 1200 W (AC), 930 W (DC)
- Fans: 3 (2+1 fan modules)
- Airflow: front (PSU/fan side) to back (port side)
- Dimensions (H x W x D): 8.33 x 44.25 x 58.29 cm
- Weight: 16.27 kg with two PSUs and fans
- Operating temperature: 0 to 40 C
- Humidity: 5 to 95%
- Altitude: 0 to 4000 m
- PoE: not supported

FAQs

Q: How is port licensing handled on the UCS 64108?
A: It is managed through UCS Manager, which runs on the fabric interconnect. Port-based licensing applies, and the base models include 36 x 10/25G and 4 x 40/100G port licences. Additional ports use UCS-L-6400-25G, UCS-L-6400-25GC and UCS-L-6400-100G licences.

Q: What power supplies does it use?
A: It uses two identical hot-swappable AC (UCS-PSU-64108-AC, 100-240 VAC) or DC (-48 VDC) power supplies in 1+1 redundancy. Typical operating power is 404 W, and maximum power is 1200 W for AC or 930 W for DC. The unit is non-PoE.

Q: Which optics and cables does it support?
A: It supports Cisco SFP, SFP+ and SFP28 optics such as SFP-10G-SR and SFP-25G-SR-S, and QSFP+ and QSFP28 optics such as QSFP-40G-SR4, QSFP-100G-SR4-S and QSFP-100G-LR4-S. DS-SFP-FC8G, FC16G and FC32G optics cover Fibre Channel. GLC-TE is supported on ports 89 to 96.

Q: Which servers and chassis can connect to it?
A: It manages Cisco UCS B-Series blades, C-Series rack servers and S-Series storage servers. It works with UCS 5108 chassis, UCS 2200 and 2408 fabric extenders and VIC 1400 adapters.

Q: How does the UCS 64108 differ from the UCS 6454?
A: The 64108 provides 108 ports in 2RU: 96 x 10/25G SFP28 and 12 x 40/100G QSFP28. The UCS 6454 is a 54-port model.
