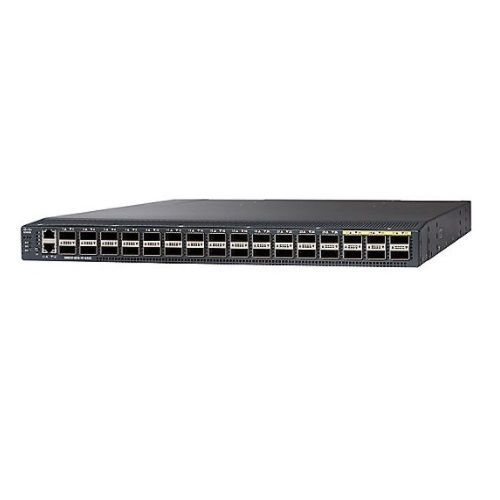

Cisco UCS-SP-FI6332 | UCS 6300 32-Port 40G QSFP+ Fabric Interconnect, 1RU
SKU:UCS-SP-FI6332
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The UCS 6300 Series 32-port fabric interconnect is a 1RU, 40-Gigabit Ethernet unit that acts as the connectivity and management backbone for Cisco UCS B-Series blade and C-Series rack server domains. It brings unified LAN and SAN traffic onto a single lossless fabric and presents attached servers as one highly available management domain through UCS Manager.
There are 32 fixed 40-Gbps QSFP+ ports delivering up to 2.56 Tbps of switching throughput at approximately 3.2 microseconds latency. Ports 1-12 and 15-26 can run as 40G or as 4 x 10G SFP+ breakout, ports 13-14 are 40G only, and ports 27-32 are dedicated 40G. Eight 40G ports are prelicensed, with up to 24 more enabled through port licences. The chassis has four fan modules in 1+1 redundancy with front-to-back airflow, and the L1 and L2 ports support high-availability clustering.
It takes 40G QSFP+ optics and 10G SFP+ optics via QSA adapters or breakout cables, and works with UCS 5108 blade chassis, fabric extenders and C-Series servers. UCS Manager 3.1(1)A or later is required. Power is supplied by two identical PSUs, UCS-PSU-6332-AC, UCS-PSU-6332-DC or UCS-PSU-6332-NAC.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Line-rate, low-latency, lossless 40-Gigabit Ethernet with cut-through architecture
- Unified fabric with FCoE support to reduce NICs, HBAs, switches and cables
- Single highly available management domain via Cisco UCS Manager for B-Series and C-Series servers
- Priority Flow Control for lossless LAN and SAN convergence
- Cisco Data Center VM-FEX for consistent virtual and physical networking
- Fabric Extender architecture scales to 20 chassis without blade switches
- Port-based licensing for pay-as-you-grow expansion
- Hot-swappable redundant fans and power supplies
- Systemwide bandwidth management and QoS
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Chassis: 1RU 32-port fabric interconnect
- Fixed ports: 32 x 40-Gbps QSFP+
- Breakout: ports 1-12 and 15-26 support 4 x 10G SFP+ breakout
- Ports 13-14: 40G only, no breakout
- Ports 27-32: dedicated 40G
- Switching throughput: 2.56 Tbps
- Latency: 3.2 microseconds
- Unified ports: None
- Fan modules: 4 (1+1 redundancy)
- Airflow: Front-to-back
- Management ports: 1 x RJ45 10/100/1000 network management, 1 x RJ45 console, 2 x USB
- Cluster ports: L1 and L2 high-availability ports
- Port licensing: 8 prelicensed ports, up to 24 additional licensed ports
- Minimum software: UCS Manager 3.1(1)A or later
- Maximum scale: up to 20 chassis (fabric extender architecture)
- Power supplies: two identical PSUs required, AC or DC, cannot be mixed
- AC PSU (UCS-PSU-6332-AC): 650 W output, 100-240 VAC, 80Plus Platinum
- DC PSU (UCS-PSU-6332-DC): 930 W output, -48 VDC, 80Plus Platinum
- Dimensions (H x W x D): 4.4 x 43.9 x 57.1 cm
- Weight (with two power supplies and one expansion module): 9.97 kg
- Operating temperature: 0 to 40 C
- Non-operating temperature: -40 to 70 C
- Humidity (non-condensing): 5 to 95%
- Altitude: 0 to 3000 m
FAQs
Q: Does this fabric interconnect need port licences?
A: Eight 40G ports are prelicensed and you choose which ones. Up to 24 more ports are enabled with UCS-LIC-6300-40G, or UCS-LIC-6300-40GC for C-direct only use. UCS Manager 3.1(1)A or later is required.
Q: What power supplies does it use?
A: It needs two identical PSUs, either UCS-PSU-6332-AC (650 W, 100-240 VAC), UCS-PSU-6332-DC (930 W, -48 VDC) or UCS-PSU-6332-NAC (NEBS 650 W V2 AC). AC and DC units cannot be mixed in the same chassis.
Q: Can the 40G ports connect to 10G equipment?
A: Yes. Ports 1-12 and 15-26 can run as 4 x 10G SFP+ breakout, or take 10G SFP+ optics through QSA adapters. Ports 13-14 and 27-32 are 40G only.
Q: Does it support Fibre Channel ports?
A: No. This model has no unified ports. Native Fibre Channel interfaces are available on the 6332-16UP, while this unit carries storage traffic over FCoE.
Q: What does it connect to?
A: It works with Cisco UCS 5108 blade chassis, fabric extenders and C-Series rack servers, managed together through UCS Manager.
