Cisco UCS-SP-FI6332-16UP | UCS 6332-16UP Fabric Interconnect, 24x 40G, 16 Unified

SKU:UCS-SP-FI6332-16UP

Request Quote

Sale Sold out

Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

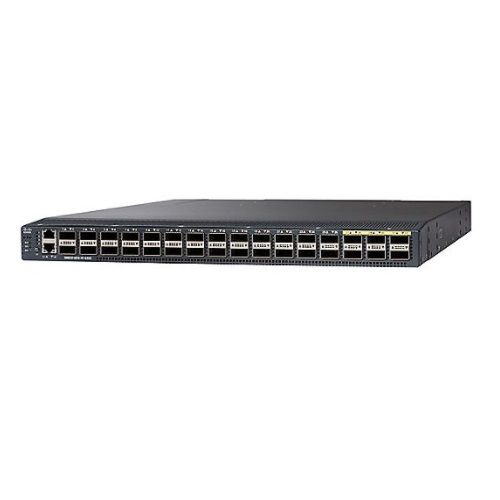

The UCS 6332-16UP is a 1RU Cisco UCS 6300 Series fabric interconnect for data centre unified computing deployments. It gives Cisco UCS blade and rack servers a single LAN and SAN fabric, with centralised management through Cisco UCS Manager. The unified ports allow direct connection to native Fibre Channel SANs.

The chassis provides 40 fixed ports: 24 x 40GbE QSFP+ ports and 16 Unified Ports that can be set as 1/10GbE or 4/8/16G Fibre Channel using SFP+ optics. Layer 2 hardware forwarding is rated at 2.43 Tbps or 683 Mpps, with up to 1024 VLANs and VSANs, 32,000 MAC address table entries and jumbo frames up to 9216 bytes. Airflow is front-to-back, with 2+2 hot-swappable fan modules and 1+1 hot-swappable power supplies in a redundant arrangement. Licensing is port-based, so capacity can be added as needed.

It works with 1G SFP, 10G SFP+ and 40G QSFP+ optics and cables, and unified ports also support 4/8/16G Fibre Channel SFP+. Matching parts include UCS-PSU-6332-AC, UCS-PSU-6332-DC, UCS-FAN-6332 and UCS-ACC-6332. This part number is the spare for the UCS 6332-16UP chassis.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Single highly available management domain through Cisco UCS Manager
- Unified fabric carries LAN and SAN traffic over one transport, reducing NICs, HBAs, switches and cables
- Low-latency cut-through design with lossless Ethernet (PFC, DCBX, IEEE 802.1Qaz)
- Cisco Data Center VM-FEX for policy-based virtual machine connectivity
- Fabric extender architecture scales to 20 blade chassis without dedicated chassis management
- Hot-swappable fans, power supplies and expansion modules
- Front-to-back cooling suited to hot and cold aisle designs
- Port-based licensing allows capacity to be added as needed

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1RU
- Fixed ports: 40 in total
- 40GbE ports: 24 x QSFP+
- Unified ports: 16 x (1/10GbE or 4/8/16G Fibre Channel via SFP+)
- Throughput: 2.43 Tbps
- Layer 2 forwarding: 2.43 Tbps or 683 Mpps
- MAC address table entries: 32,000
- VLANs/VSANs: up to 1024 per interconnect
- Jumbo frames: up to 9216 bytes on all ports
- QoS: 8 hardware queues per port, per-port virtual output queuing
- Management ports: redundant 10/100/1000 Mbps management or console ports
- Fan modules: 2+2 hot-swappable
- Power supplies: 1+1 redundant hot-swappable, AC or DC
- AC PSU input: 100 to 240 VAC, 50 to 60 Hz
- DC PSU input: -40 to -72 VDC, 23 A maximum
- DC PSU output: 400 W typical, 930 W maximum
- Dimensions (H x W x D): 4.4 x 43.9 x 57.1 cm
- Weight: 10.25 kg with two power supplies and four fan modules
- Operating temperature: 0 to 40 C
- Humidity: 5 to 95% non-condensing
- Altitude: 0 to 3000 m
- Airflow: front-to-back

FAQs

Q: How is this fabric interconnect licensed?
A: Licensing is port-based, so you license the ports you use and add more as needed. It is managed through Cisco UCS Manager.

Q: What power supplies and fans does it use?
A: It uses 1+1 redundant hot-swappable power supplies, UCS-PSU-6332-AC for 100 to 240 VAC or UCS-PSU-6332-DC for -48 VDC, with UCS-FAN-6332 fan modules.

Q: Which optics and cables does it support?
A: The ports support 1G SFP such as GLC-T, 10G SFP+ (FET, SR, LR, ER, ZR, Twinax) and 40G QSFP+ optics and cables. The unified ports also support 4/8/16G Fibre Channel SFP+.

Q: Can it connect directly to a Fibre Channel SAN?
A: Yes. The 16 Unified Ports can be configured for native 4/8/16G Fibre Channel, so storage can be connected without a separate FC switch.

Q: What distinguishes the 6332-16UP from the other 6300 Series models?
A: The 6332-16UP combines 24 x 40GbE QSFP+ ports with 16 Unified Ports that support FC and FCoE, giving 40 fixed ports in 1RU.
