Cisco UCS-FI-6536 | UCS 6536 36-Port 40/100G Fabric Interconnect, UCSM

SKU:UCS-FI-6536

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCS 6536 Fabric Interconnect is a 1RU switch that forms the network backbone and management point for Cisco UCS X-Series, B-Series and C-Series servers. It carries line-rate, low-latency, lossless Ethernet, FCoE and Fibre Channel traffic, consolidating LAN and SAN connectivity into a single unified fabric with native Fibre Channel SAN attachment.

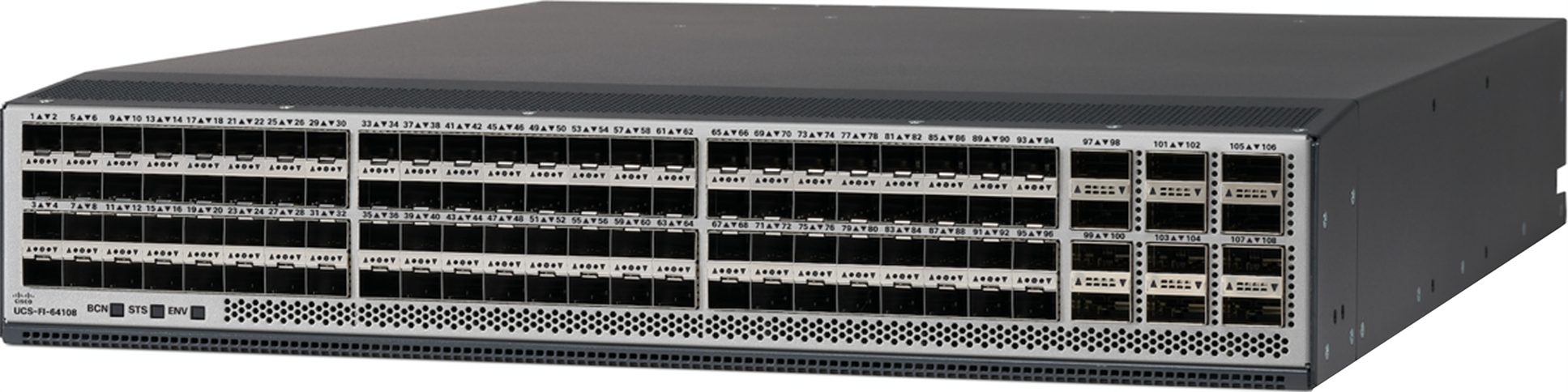

This is the UCS Manager (UCSM) variant with 36 QSFP28 ports, all of which support 40/100G and breakout to 4x10G/25G. Ports 33-36 are unified ports that can run 40/100G Ethernet or Fibre Channel after breakout, giving up to 16 x 8/16/32G FC ports. Switching throughput is 7.42 Tbps, with 32 GB of system memory, and the SKU ships with a perpetual licence that activates all ports and software features.

It works with UCSX-9508 and UCSB-5108 chassis, UCSX-9108-25G and 100G IFMs, 2304 and 2408 IOMs, and VIC 1300, 1400 and 15000 series adapters. Power comes from up to two UCS-PSU-6536-AC 1100W AC supplies with six UCS-FAN-6536 fan modules, and typical consumption is 348 W.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Line-rate, low-latency cut-through architecture with latency under 1 microsecond
- Unified fabric consolidating LAN and SAN (FC, FCoE, iSCSI, NFS, NVMe-oF) onto a single transport
- Supports Ethernet and Fibre Channel switch and end-host modes
- Lossless fabric with Priority-based Flow Control (802.1Qbb) and systemwide QoS
- All 36 ports support breakout and QSA/QSA28 for 1G/10G/25G connectivity
- Redundant hot-swappable fans and power supplies with front-to-back cooling
- Single highly available management domain for all connected elements via UCS Manager
- Out-of-band management via a dedicated 10/100/1000 Ethernet port, plus in-band management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1RU
- Ports: 36 x 40/100-Gbps QSFP28, all with breakout to 4x10G/25G
- Unified ports: 4 (ports 33-36), Ethernet or Fibre Channel
- Maximum 40/100-Gbps Ethernet ports: 36
- Maximum 10/25-Gbps Ethernet ports: 144 after breakout
- Maximum 8/16/32-Gbps FC ports: 16 after breakout of ports 33-36
- Supported speeds: 1/10/25/40/100-Gbps Ethernet/FCoE, 8/16/32-Gbps Fibre Channel
- Switching throughput: 7.42 Tbps, 2.4 bpps
- CPU: 4 cores
- System memory: 32 GB
- MAC address table entries: 32,000
- Jumbo frames: up to 9216 bytes
- Management ports: L1, L2, RJ-45 Management, RS-232 Serial
- USB ports: 1
- Power supplies: up to 2 x 1100W AC (UCS-PSU-6536-AC)
- Typical operating power: 348 W
- Maximum power: 800 W (AC or DC)
- Input voltage: 100 to 240 VAC, -40 to -72 VDC
- Fans: 6 (UCS-FAN-6536), hot swappable
- Airflow: front (PSU/fan-side) to back (port-side exhaust)
- Dimensions (H x W x D): 4.4 x 43.9 x 62.7 cm
- Weight (with two PSUs and six fans): 11.6 kg
- Operating temperature: 0 to 40 C
- Humidity: 5 to 95%
- PoE: N/A

FAQs

Q: Does the UCS-FI-6536 need a separate licence?
A: No. It ships with a perpetual licence that activates all ports and software features, so no licence management is needed. This SKU is managed through Cisco UCS Manager.

Q: What power supplies does it use?
A: It takes up to two UCS-PSU-6536-AC 1100W AC power supplies (100-240VAC) and six UCS-FAN-6536 fan modules. Typical power draw is 348 W and maximum is 800 W. PoE is not applicable.

Q: Which chassis, adapters and servers does it work with?
A: It supports UCSX-9508 and UCSB-5108 chassis, UCSX-9108-25G and UCSX-9108-100G IFMs, 2304 and 2408 IOMs, and VIC 1300, 1400 and 15000 series adapters. Server support covers X-Series M6/M7, B-Series M4/M5/M6 and C-Series M4/M5/M6/M7.

Q: Which UCS software release is required?
A: UCS Manager support requires UCS release 4.2(3) or later. UCS X-Series M6/M7 servers under UCSM require release 4.3(2).

Q: Can it connect to a Fibre Channel SAN?
A: Yes. Unified ports 33-36 can run Fibre Channel after breakout, providing up to 16 x 8/16/32G FC ports for native SAN attachment.
