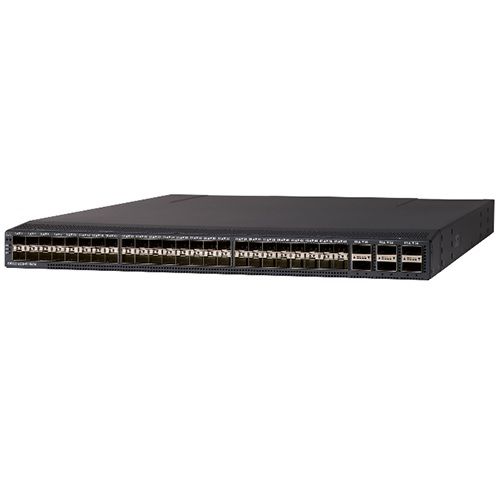

Cisco UCS-FI-6454-U | UCS 6454 54-Port Fabric Interconnect, Standalone, No PSU
SKU:UCS-FI-6454-U
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Cisco UCS 6454 is a 1RU fabric interconnect from the UCS 6400 Series. It provides 10/25/40/100 Gigabit Ethernet, FCoE and Fibre Channel connectivity for Cisco UCS blade, rack and storage servers, and acts as the core of a UCS domain in the data centre. It hosts and runs Cisco UCS Manager for a single management domain, and suits HyperFlex and FlashStack-type converged deployments.
There are 54 fixed ports: 48 x 10/25G SFP28 and 6 x 40/100G QSFP28. Sixteen of the SFP28 ports are unified and can be set to 10/25G Ethernet/FCoE or 8/16/32G Fibre Channel, and four ports support 1G Ethernet. Switching throughput is 3.82 Tbps with 1.2 bpps Layer 2 forwarding and a 32,000-entry MAC address table. This is the standalone -U model, supplied without power supplies and with 18 x 10/25G and 2 x 40/100G port licences included. Further capacity is added with port-based licences.
The unit takes up to two hot-swap power supplies, a 650W AC (UCS-PSU-6332-AC) or 930W DC (UCS-PSU-6332-DC) model. It works with SFP28 and QSFP28 optics and Twinax cables, UCS 2200 and 2408 Fabric Extenders, UCS 5108 chassis, UCS B-Series, managed C-Series and S-Series servers, and VIC 1400 series adapters.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Cut-through, low-latency (under 1 microsecond), lossless 10/25/40/100G Ethernet fabric
- Unified fabric with FCoE and native Fibre Channel on the same switch, consolidating LAN and SAN
- Hosts and runs Cisco UCS Manager, deployed as an active/passive cluster across redundant fabric interconnects
- Fabric extender architecture scales to 20 blade chassis
- Breakout cables supported on uplink ports 49-54 when connecting to Nexus 9K switches
- Redundant hot-swappable fans and power supplies with 1+1 PSU and N+1 fan redundancy
- Port-based pay-as-you-grow licensing
- Jumbo frames up to 9216 bytes, PFC (802.1Qbb), ETS (802.1Qaz) and DCBX
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 1RU
- Fixed ports: 54 (48 x 10/25G SFP28 and 6 x 40/100G QSFP28)
- Unified ports: 16 (ports 1-16), 10/25G Ethernet/FCoE or 8/16/32G Fibre Channel
- 1G Ethernet ports: 4 (ports 45-48)
- 40/100G Ethernet uplink ports: 6 (ports 49-54)
- Switching throughput: 3.82 Tbps
- Layer 2 forwarding: 3.82 Tbps and 1.2 bpps
- MAC address table entries: 32,000
- CPU: 6 cores
- System memory: 64 GB
- Management ports: L1, L2 and RJ-45
- USB ports: 1
- Fan modules: 3+1 (4 fans)
- Power supplies (up to 2): 650W AC or 930W DC
- Typical operating power: 260W
- Input voltage (AC): 100 to 240 VAC, 50 to 60 Hz
- Input voltage (DC): -40 to -72 VDC
- Airflow: front (PSU/fan-side) to back (port-side exhaust)
- Dimensions (H x W x D): 4.4 x 43.9 x 57.1 cm
- Weight: 10.10 kg with two power supplies, two expansion modules and fans
- Operating temperature: 0 to 40 C
- Humidity: 5 to 95%
- Altitude: 0 to 4000 m
- RoHS compliance: Yes
FAQs
Q: What licences does the UCS-FI-6454-U include?
A: It includes 18 x 10/25G and 2 x 40/100G port licences. Additional ports are enabled with UCS-L-6400-25G (10/25G/FC), UCS-L-6400-25GC (10/25G, C-direct only) and UCS-L-6400-100G (40/100G).
Q: Does this model include power supplies?
A: No. The -U standalone model takes up to two hot-swap power supplies, the 650W AC UCS-PSU-6332-AC or the 930W DC UCS-PSU-6332-DC. Typical operating power is 260W.
Q: What optics and cables does it support?
A: It supports SFP28 and QSFP28 optics and Twinax cables, plus SFP+ SR/LR/ER/ZR optics and FET optics for fabric extenders. Breakout cables are supported on uplink ports 49-54.
Q: Which UCS components does it work with?
A: It works with the UCS 2200 and 2408 Fabric Extenders, UCS 5108 chassis, UCS B-Series, managed C-Series and S-Series servers, and VIC 1400 series adapters.
Q: How is it managed?
A: It hosts and runs Cisco UCS Manager, deployed as an active/passive cluster across a redundant pair of fabric interconnects.
