Cisco

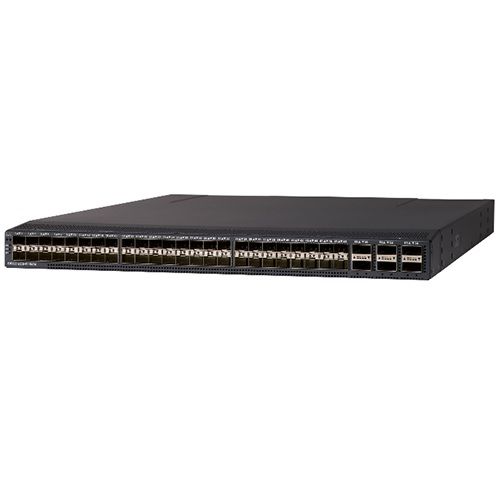

Cisco UCS-FI-6454-NEW | UCS 6454 48-Port 10/25G Fabric Interconnect, 6x 100G

SKU:UCS-FI-6454-NEW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco UCS 6454 is a 1RU fabric interconnect from the UCS 6400 Series, built for core connectivity and management of Cisco UCS data centre domains. It supports blade chassis and rack servers, and provides a unified LAN and SAN fabric across Ethernet, FCoE and Fibre Channel. It also hosts Cisco UCS Manager in a highly available clustered configuration.

This configured SKU offers 48 x 10/25G SFP28 downlink ports and 6 x 40/100G QSFP28 uplink ports, a total of 54 fixed ports with 3.82 Tbps of throughput. Unified ports 1-16 can run 10/25 GbE or 8/16/32G Fibre Channel, and ports 45-48 can operate at 1G. Cut-through switching keeps latency under 1 microsecond with lossless Ethernet and Priority Flow Control. It has no PoE, and is managed through UCS Manager or Intersight Managed Mode.

It uses up to two hot-swappable power supplies, the UCS-PSU-6332-AC at 650W or the UCS-PSU-6332-DC at 930W, with a 3+1 fan module arrangement and front-to-back airflow. It works with Cisco 10/25/40/100G SFP28 and QSFP28 optics and cables, connects to UCS 5108 blade chassis and C-series rack servers, and uplinks to Nexus 9K switches.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hosts and runs Cisco UCS Manager in a highly available active/passive cluster
- Unified fabric reduces the number of NICs, HBAs, switches and cables required
- Fabric extender architecture scales to 20 blade chassis without dedicated chassis management
- Cut-through, lossless 10/25/40/100 GbE with FCoE and Priority Flow Control, latency under 1 microsecond
- Unified ports 1-16 can run 10/25 GbE or 8/16/32G Fibre Channel
- Port-based licensing allows pay-as-you-grow capacity
- Redundant hot-swappable fans and power supplies with front-to-back cooling
- Breakout cables supported on uplink ports 49-54 when connecting to Nexus 9K switches

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1RU
- Downlink ports: 48 x 10/25-Gbps SFP28
- Uplink ports: 6 x 40/100-Gbps QSFP28 (ports 49-54)
- Fixed ports: 54
- Unified ports: 16 (ports 1-16), 10/25G Ethernet/FCoE or 8/16/32G Fibre Channel
- 1-Gbps Ethernet ports: up to 4 (ports 45-48)
- Throughput: 3.82 Tbps
- PoE: none
- CPU: 6 cores
- System memory: 64 GB
- Management ports: L1, L2 and RJ-45
- USB ports: 1
- Power supplies: up to 2, 650W AC or 930W DC
- Typical operating power: 260W
- AC input: 100 to 240 VAC, 50 to 60 Hz
- DC input: -40 to -72 VDC
- Fan modules: 3+1
- Airflow: front (PSU/fan side) to back (port side)
- Dimensions (H x W x D): 4.4 x 43.9 x 57.1 cm
- Weight: 10.10 kg with two power supplies, two expansion modules and fans
- Operating temperature: 0 to 40 C
- Humidity: 5 to 95%
- Altitude: 0 to 4000 m
- RoHS compliant: Yes

FAQs

Q: Does the UCS 6454 need a PoE or software feature licence?
A: No PoE or software feature licence applies. It is managed through Cisco UCS Manager or Intersight Managed Mode, and extra port capacity is added with UCS port licences such as UCS-L-6400-25G and UCS-L-6400-100G.

Q: Which power supplies does it use?
A: It takes up to two hot-swappable power supplies, the UCS-PSU-6332-AC (650W, 100-240 VAC) or the UCS-PSU-6332-DC (930W, -48 VDC). Typical operating power is 260W.

Q: Which optics and cables work with it?
A: The 48 SFP28 ports and 6 QSFP28 ports accept Cisco 10/25/40/100G transceivers and Twinax cabling. Unified ports 1-16 also accept 8/16/32G Fibre Channel optics.

Q: What can I connect to it?
A: It connects to UCS 5108 blade chassis and C-series rack servers, including VIC 1455/1457 direct-connect at 10/25G. Its 40/100G uplinks connect upstream to the data centre network, including Nexus 9K switches.

Q: Which ports can run Fibre Channel?
A: Unified ports 1-16 can be configured for 8/16/32G Fibre Channel or 10/25 GbE. The remaining downlink ports carry Ethernet and FCoE.
