Cisco UCS-FI-6454-D-U | UCS 6454 Fabric Interconnect, 48x 10/25G SFP28, 6x 100G

SKU:UCS-FI-6454-D-U

Request Quote

Sale Sold out

Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

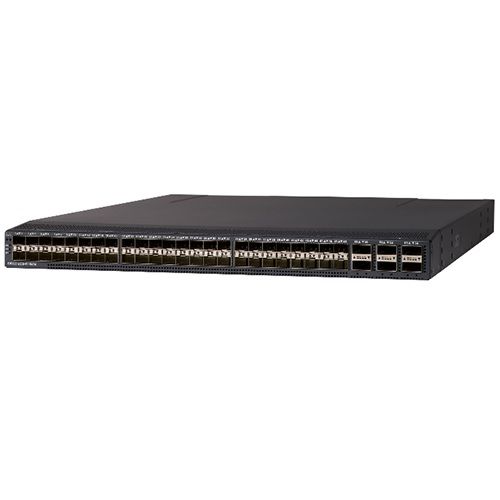

The UCS 6454 is a 1RU fabric interconnect from the Cisco UCS 6400 Series. It forms the networking and management backbone of a Cisco UCS domain, carrying LAN and SAN traffic on one unified fabric and managed through UCS Manager or Intersight Managed Mode. It suits data centres connecting UCS blade chassis and C-Series rack servers, with uplinks to Nexus or other data-centre switching.

This standalone D-U variant provides 54 fixed ports: 48 x 10/25G SFP28 downlinks and 6 x 40/100G QSFP28 uplinks (ports 49-54). Switching throughput is 3.82 Tbps, and ports 1-16 are unified ports that support 8/16/32G Fibre Channel. The unit has a 6-core CPU with 64 GB of system memory, up to two hot-swappable power supplies (650W AC or 930W DC) and 3+1 fan modules with front-to-back airflow. Typical operating power is 260W.

Capacity is port-licensed, so you add ports as you grow. Additional ports use UCS-L-6400-25G, UCS-L-6400-25GC or UCS-L-6400-100G. It works with Cisco SFP28 and QSFP28 transceivers and cables, and uses UCS-FAN-6332 fan modules and UCS-PSU-6332-AC or UCS-PSU-6332-DC power supplies.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cut-through, low-latency, line-rate 10/25/40/100 GbE architecture
- Unified fabric carrying LAN and SAN (FCoE and Fibre Channel) traffic on one transport
- Single highly available management domain through Cisco UCS Manager
- Lossless fabric with Priority-based Flow Control (PFC)
- Systemwide bandwidth management for consistent QoS
- Redundant hot-swappable fans and power supplies
- Breakout cables supported on uplink ports 49-54 for connection to Nexus 9K switches
- 40/100G ports can serve as server ports after break-out from UCSM 4.1(3), for direct-connect rack servers with VIC 1455/1457

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1RU
- Fixed ports: 54
- Downlink ports: 48 x 10/25-Gbps SFP28
- Uplink ports: 6 x 40/100-Gbps QSFP28 (ports 49-54)
- Unified ports: up to 16 (ports 1-16), 8/16/32-Gbps Fibre Channel
- 1-Gbps Ethernet ports: up to 4 (ports 45-48)
- Switching throughput: 3.82 Tbps
- Downlink speeds: 1/10/25-Gbps Ethernet/FCoE, 8/16/32-Gbps Fibre Channel
- CPU: 6 cores
- System memory: 64 GB
- Management ports: L1, L2 and RJ-45
- USB ports: 1
- Power supplies: up to 2, 650W AC or 930W DC
- Typical operating power: 260W
- Input voltage: 100 to 240 VAC or -40 to -72 VDC
- Fans: 4 (3+1 fan modules)
- Airflow: front (fan-side) to back (port-side exhaust)
- Dimensions (H x W x D): 4.4 x 43.9 x 57.1 cm
- Weight (with two PSUs and fans): 10.10 kg
- Operating temperature: 0 to 40 C
- Humidity: 5 to 95%
- Altitude: 0 to 4000 m
- Hot swappable: Yes
- RoHS compliance: Yes

FAQs

Q: Does the UCS 6454 need a separate software licence?
A: No separate software licence is required. Capacity is port-licensed, and additional ports are added with UCS-L-6400-25G, UCS-L-6400-25GC or UCS-L-6400-100G. It is managed through UCS Manager or Intersight Managed Mode.

Q: What power supplies does it use?
A: It takes up to two hot-swappable power supplies: UCS-PSU-6332-AC (650W, 100-240 VAC) or UCS-PSU-6332-DC (930W, -40 to -72 VDC). Typical operating power is 260W.

Q: Which ports support Fibre Channel?
A: Unified ports 1-16 support 8/16/32G Fibre Channel. The remaining SFP28 ports run 10/25G Ethernet or FCoE, and ports 49-54 run 40/100G.

Q: What does it connect to?
A: It connects UCS blade chassis through the fabric extender architecture and C-Series rack servers, with uplinks to Nexus or other data-centre switching. Direct-connect rack servers need a VIC 1455 or 1457 for 40/100G breakout server ports.

Q: Which fan modules and accessories does it use?
A: It uses UCS-FAN-6332 fan modules in a 3+1 arrangement with front-to-back airflow, along with the UCS-ACC-6332 accessory kit.
