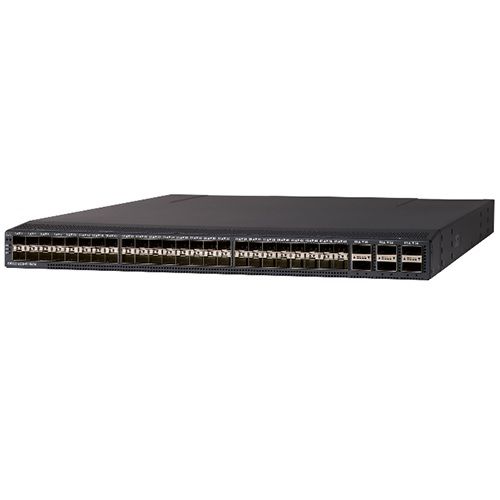

Cisco UCS-FI-6454-D | UCS 6454 48x 10/25G SFP28 Fabric Interconnect, 1RU
SKU:UCS-FI-6454-D
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The UCS 6454 is a 1RU fabric interconnect from the Cisco UCS 6400 Series, built to act as the network and management backbone of a Cisco UCS domain. It provides line-rate, low-latency, lossless 10/25/40/100 Gigabit Ethernet, FCoE and Fibre Channel connectivity for UCS B-Series blade servers, UCS C-Series rack servers and the UCS 5108 chassis, managed through UCS Manager or Intersight Managed Mode.
The 54 fixed ports are made up of 48 x 10/25G SFP28 server-facing ports and 6 x 40/100G QSFP28 uplinks on ports 49 to 54. Ports 1 to 16 are unified ports that can run as 8/16/32G Fibre Channel, and ports 45 to 48 support 1G Ethernet. Throughput is 3.82 Tbps with a Layer 2 forwarding rate of 1.2 billion packets per second. The chassis takes up to two hot-swappable power supplies and has a 3+1 fan arrangement. Power supplies are ordered separately.
No feature or software licence is needed to operate the unit, although individual ports are enabled with per-port licences. It works with 1G, 10G, 25G, 40G and 100G optics as well as SFP+ and SFP28 Twinax and AOC cables.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Line-rate, low-latency, lossless 10/25/40/100 Gigabit Ethernet, FCoE and Fibre Channel
- Unified ports configurable as 10/25G Ethernet or 8/16/32G Fibre Channel
- Low-latency cut-through design with predictable traffic latency
- Layer 2 features including VLANs, RPVST+, IGMP snooping, LACP and jumbo frames up to 9216 bytes
- QoS with PFC (802.1Qbb), ETS (802.1Qaz) and DCBX
- Breakout cable support on 40/100G ports for Nexus 9K uplinks and 10/25G direct-connect rack servers
- 1+1 power redundancy and N+1 fan redundancy with hot-swappable PSUs and fans
- Managed through Cisco UCS Manager and Intersight Managed Mode
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 1RU
- Fixed ports: 54
- Downlink ports: 48 x 10/25-Gbps SFP28
- Uplink ports: 6 x 40/100-Gbps QSFP28 (ports 49-54)
- Unified ports: up to 16 (ports 1-16) for 8/16/32-Gbps Fibre Channel
- 1-Gbps Ethernet ports: up to 4 (ports 45-48)
- Throughput: 3.82 Tbps
- Layer 2 forwarding rate: 1.2 billion packets per second
- MAC address table entries: 32,000
- CPU: 6 cores
- System memory: 64 GB
- Management ports: L1, L2 and RJ-45
- USB ports: 1
- PoE: none
- Power supplies: up to 2, 650W AC or 930W DC
- Typical operating power: 260 W
- Input voltage (AC): 100 to 240 VAC, 50 to 60 Hz
- Fan modules: 3+1
- Dimensions (H x W x D): 4.4 x 43.9 x 57.1 cm
- Operating temperature: 0 to 40 C
- Humidity: 5 to 95%
- Weight: 10.10 kg with two power supplies and two expansion modules, with fans
- RoHS compliant: Yes
FAQs
Q: Does the UCS 6454 need a software licence?
A: No feature or software licence is needed to operate it. Ports are enabled with per-port licences such as UCS-L-6400-25G, UCS-L-6400-25GC and UCS-L-6400-100G.
Q: What power supplies does it use?
A: It takes up to two hot-swappable power supplies. Order UCS-PSU-6332-AC (650W, 100-240VAC) or UCS-PSU-6332-DC (930W, -48VDC) separately. Typical operating power is 260W and there is no PoE.
Q: Which optics and cables work with it?
A: It supports 1G SFP such as GLC-TE and GLC-SX-MMD, 10G SFP+ such as SFP-10G-SR and SFP-10G-LR, 25G SFP28 such as SFP-25G-SR-S, 40G QSFP+ such as QSFP-40G-SR4 and 100G QSFP28 such as QSFP-100G-SR4-S. SFP+ and SFP28 Twinax and AOC cables are also supported.
Q: Which ports are the uplinks?
A: The six 40/100G QSFP28 uplinks are ports 49 to 54. The 48 SFP28 ports at 10/25G serve as server downlinks.
Q: Can it carry Fibre Channel traffic?
A: Yes. Unified ports 1 to 16 can be configured as 8/16/32G Fibre Channel, and the unit also supports FCoE.
Q: What can it connect to in a UCS domain?
A: It connects UCS B-Series blade servers, UCS C-Series rack servers and the UCS 5108 chassis, with uplinks to the data centre network and SAN.
