Cisco

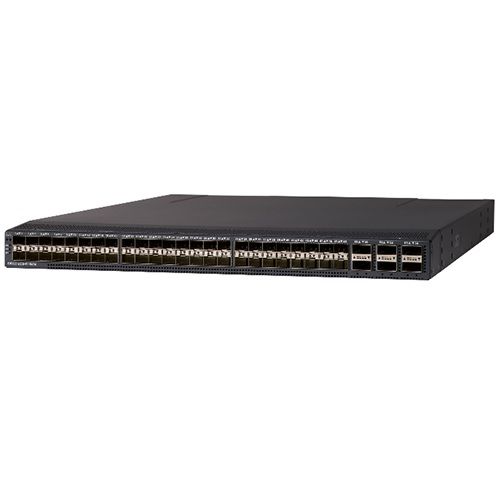

Cisco UCS-FI-6454 | UCS 6454 54-Port 25G Fabric Interconnect, No PSU

SKU:UCS-FI-6454

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco UCS 6454 is a 1RU fabric interconnect from the UCS 6400 Series. It sits at the core of a Cisco Unified Computing System domain, providing unified LAN and SAN connectivity and centralised management for attached B-Series blade, C-Series rack and S-Series storage servers. It is also used in FCoE and Fibre Channel unified fabric deployments and for connecting upstream to Nexus 9K or other data centre switches.

This configured model has 48 x 10/25G SFP28 downlink ports and 6 x 40/100G QSFP28 uplink ports, giving 54 fixed ports and 3.82 Tbps of throughput. Unified ports 1 to 16 can run 8/16/32G Fibre Channel. The SKU includes 18 x 10/25G and 2 x 40/100G port licences, with additional ports added through port-based licences. It is managed through UCS Manager or Intersight Managed Mode. This SKU is defined as having no PSU, so it takes up to two hot-swappable 650W AC or 930W DC power supplies, with a 3+1 fan arrangement and front-to-back airflow.

The downlink ports accept 10/25G SFP28 optics and cables, and the uplink ports accept 40/100G QSFP28 transceivers and cables. It supports UCS B-Series blade servers, the UCS 5108 chassis, UCS managed C-Series rack servers and S-Series storage servers.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Line-rate, low-latency, lossless 10/25/40/100 Gigabit Ethernet, FCoE and Fibre Channel
- End-to-end latency under 1 microsecond
- Managed by Cisco UCS Manager as a single, highly available management domain
- Unified fabric reduces the number of NICs, HBAs, switches and cables required
- Priority-based Flow Control and systemwide bandwidth management and QoS
- Redundant hot-swappable fans and power supplies
- Port-based licensing for pay-as-you-grow capacity expansion
- Breakout cables supported on uplink ports 49-54 for connection to Nexus 9K

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1RU
- Downlink ports: 48 x 10/25-Gbps SFP28
- Uplink ports: 6 x 40/100-Gbps QSFP28
- Total fixed ports: 54
- Throughput: 3.82 Tbps
- Unified ports: up to 16 (ports 1-16), 8/16/32-Gbps Fibre Channel
- 1-Gbps Ethernet ports: up to 4 (ports 45-48)
- Downlink speeds: 1/10/25-Gbps Ethernet/FCoE, 8/16/32-Gbps Fibre Channel
- CPU: 6 cores
- System memory: 64 GB
- Management ports: L1, L2 and RJ-45
- USB ports: 1
- Included port licences: 18 x 10/25G and 2 x 40/100G
- Power supplies: up to 2 x 650W AC or 930W DC
- Typical operating power: 260W
- AC input voltage: 100 to 240 VAC, 50 to 60 Hz
- DC input voltage: -40 to -72 VDC
- Fan modules: 3+1, front-to-back airflow
- Dimensions (H x W x D): 4.4 x 43.9 x 57.1 cm
- Weight: 10.10 kg with two power supplies, two expansion modules and fans
- Operating temperature: 0 to 40 C
- Humidity: 5 to 95%
- Hot-swappable: power supplies and fans
- RoHS compliant: Yes

FAQs

Q: Does the UCS 6454 need a separate licence?
A: It is managed through UCS Manager or Intersight Managed Mode. This SKU includes 18 x 10/25G and 2 x 40/100G port licences. Additional ports need UCS-L-6400-25G, UCS-L-6400-25GC or UCS-L-6400-100G licences.

Q: Which power supplies does it use?
A: It takes up to two hot-swappable power supplies, UCS-PSU-6332-AC (650W, 100 to 240 VAC) or UCS-PSU-6332-DC (930W, -48 VDC). PoE is not supported.

Q: Which optics and cables work with the ports?
A: The 10/25G SFP28 downlink ports accept SFP28 optics and Twinax cables. The 40/100G QSFP28 uplink ports accept QSFP28 transceivers and cables. Unified ports 1 to 16 accept 8/16/32G Fibre Channel modules.

Q: Which servers can connect to it?
A: It supports Cisco UCS B-Series blade servers, the UCS 5108 chassis, UCS managed C-Series rack servers and S-Series storage servers.

Q: Which fan module does it use?
A: It uses the UCS-FAN-6332 fan module in a 3+1 arrangement with front-to-back airflow.
